  • Product Details

Using highly advanced technologies and newest methods,Shenzhen Hoin Electronic Technology Co., Ltd has developed 58mm Portable Receipt Thermal BT Mini Pocket Printer With Rechargeable Battery 2500mAh Car Charger. It is on sale starting now and we welcome your inquiry. Based on scientific strategic decision-making, driven by strong operating capabilities, and driven by technology and R&D capabilities, the products developed and manufactured have clear positioning and goals. Shenzhen Hoin Electronic Technology Co will continually adopt positive marketing strategies to develop new markets, therefore establishing a more sound sales network. Moreover, we will reinforce the scientific research and try hard to gather more talents to focus on the research and development of new products. Our wish is to become one of the most competitive enterprises in the market.

Products Status:StockType:thermal receipt printer
Style:Black and whiteUse:mobile thermal printer
Interface Type:BT+USBMax Paper Size:58mm
Black Print Speed:80mm/sColor Print Speed:no Support
Max. Resolution:384 Dots/lineBrand Name:Hoin
Model Number:HOP-E200Place of Origin:Guangdong, China
Warranty(Year):1-YearAfter-sales Service:Free spare parts
Printer name:Bluetooth Mobile Thermal Printer AndroidEffective Printing Width:48mm
Resolution:384 dots/line(8dots/mm,203dpi)Interface:USB+BT
paper width:57.5±0.5mmpaper thickness:≤0.12mm
paper Diameter:≤40mmWeight:224g
Dimension:114*80*50mmBattery:2000mAh/7.4V lithium polymer battery

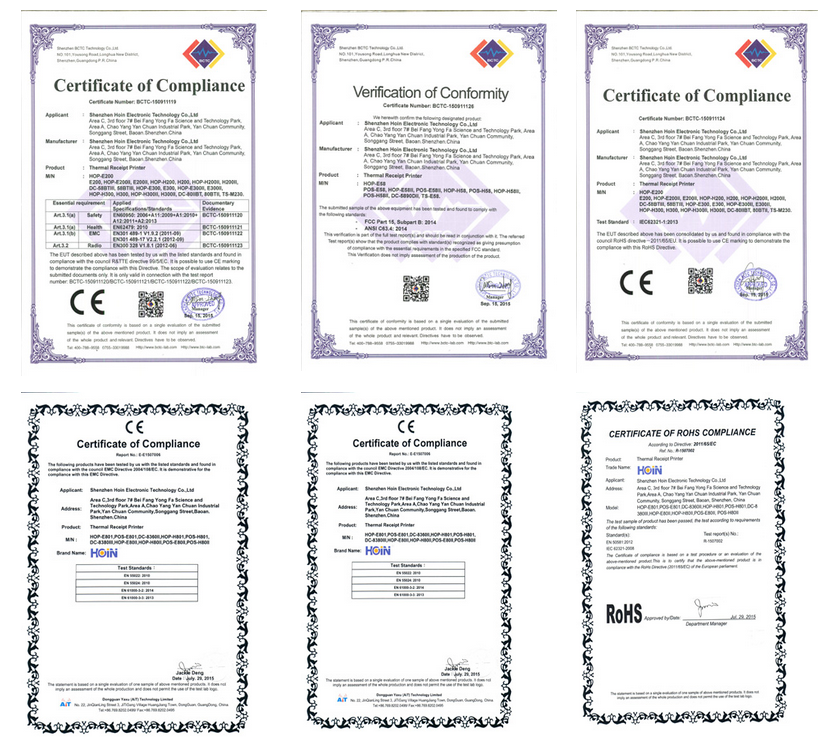

Certification:FCC, ce, RoHS, BIS(ISI)


Product Description

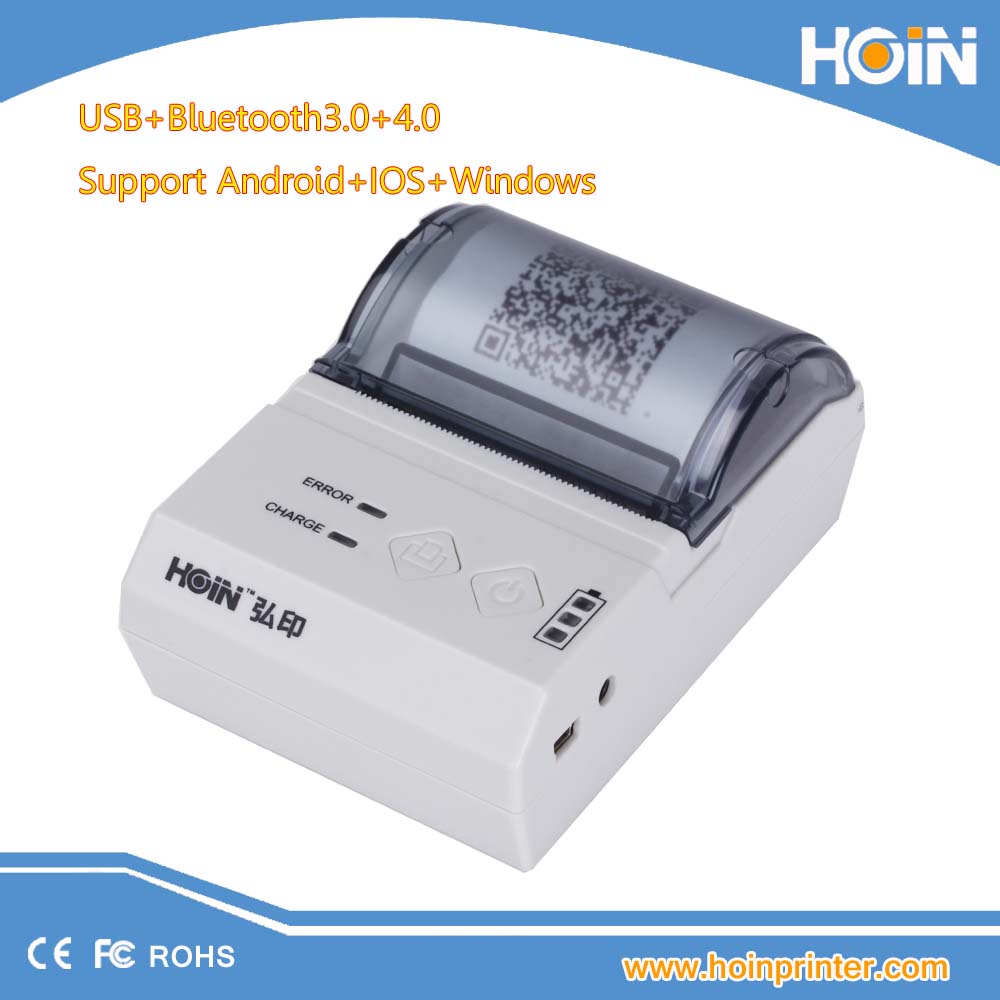

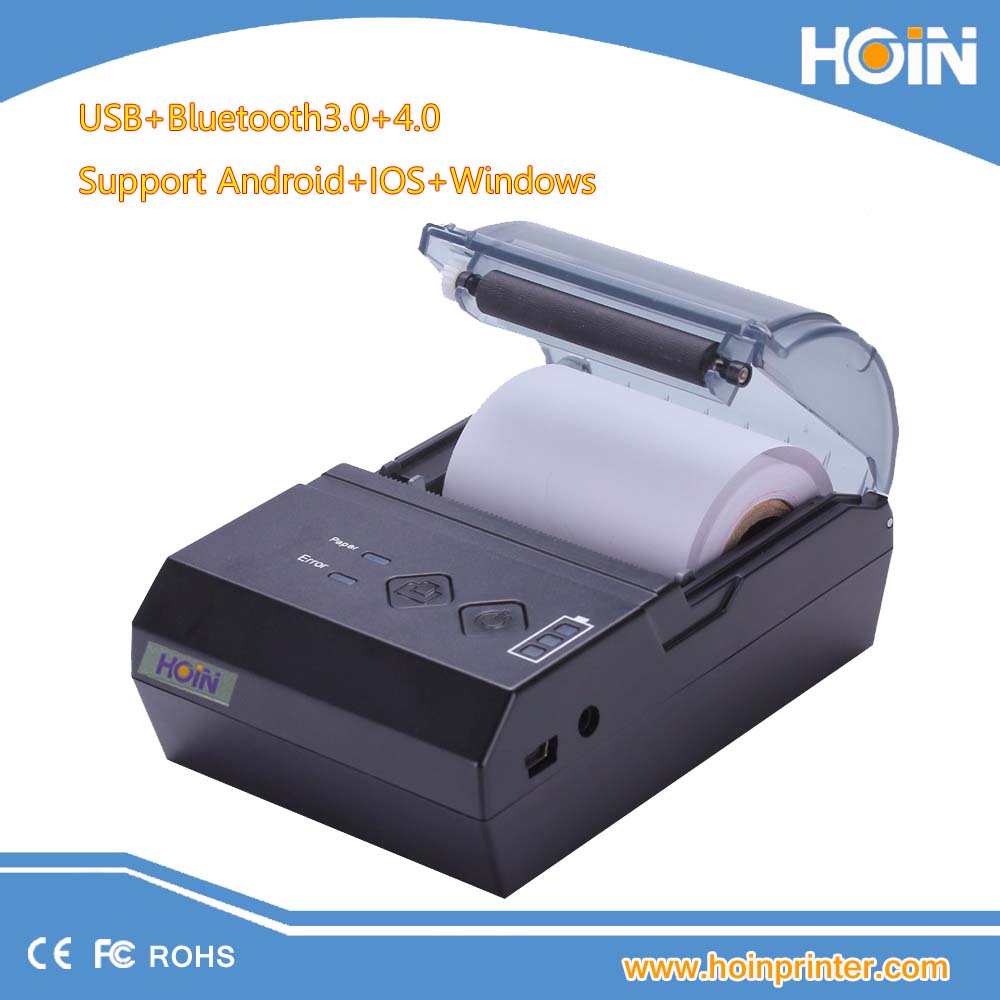

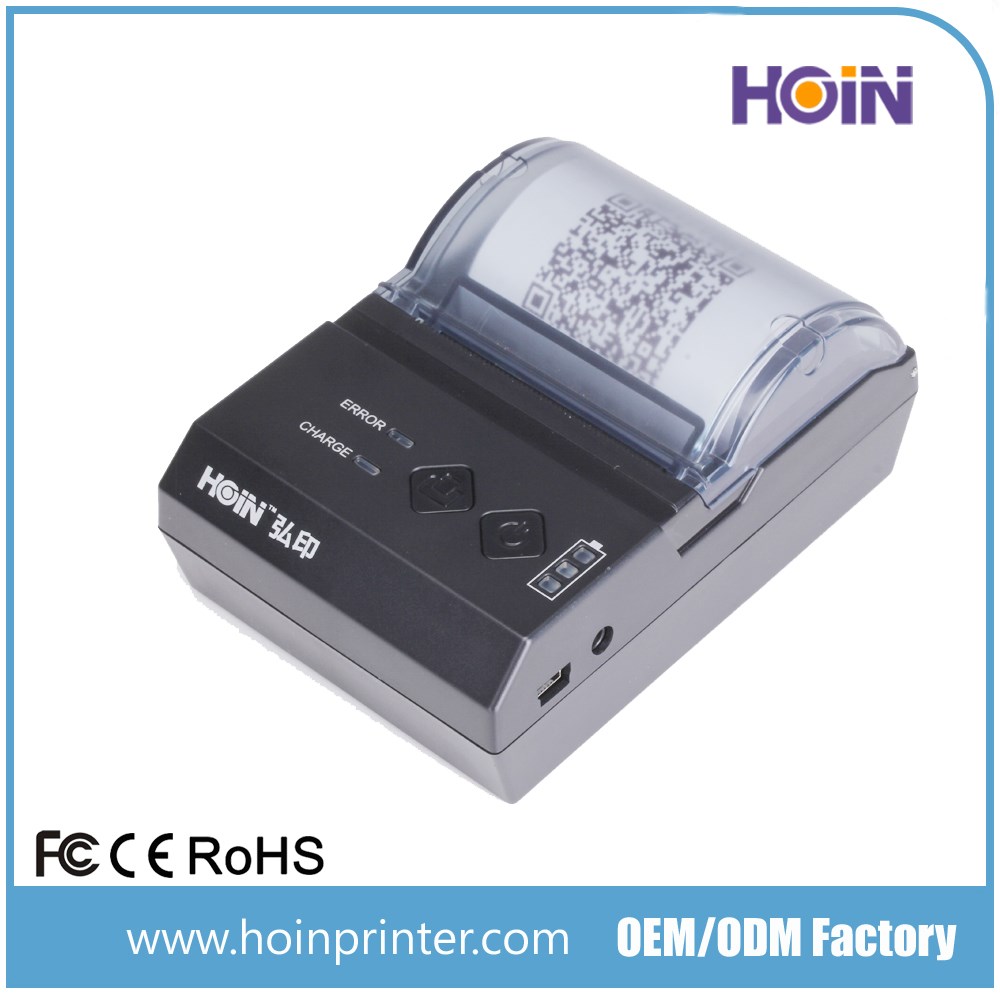

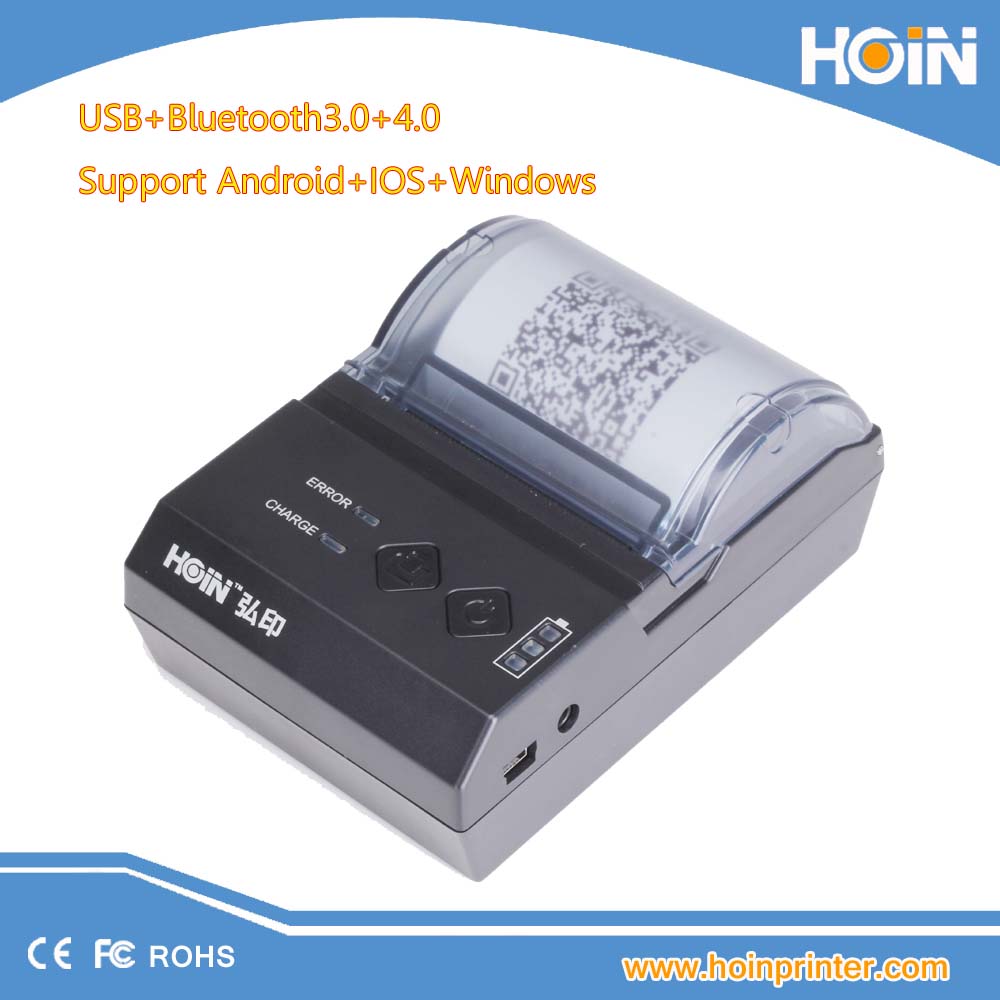

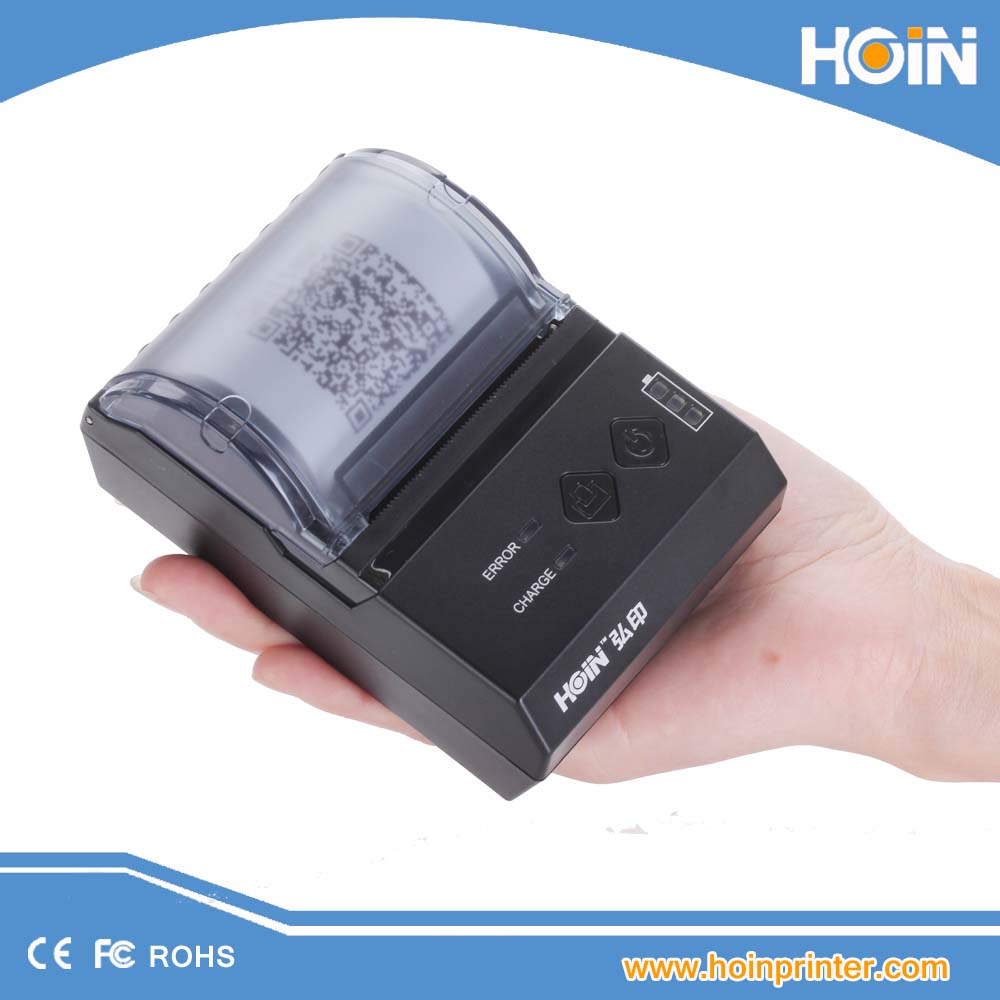

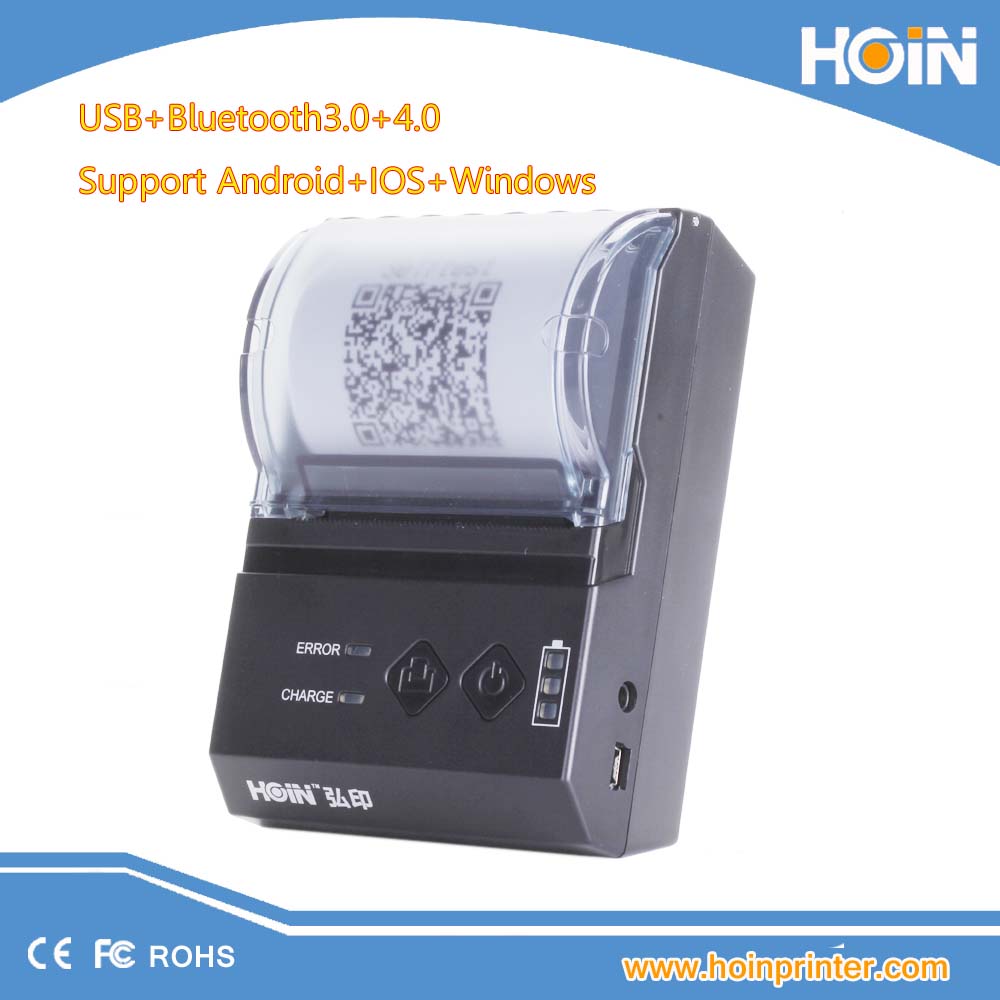

58mm Portable Receipt Thermal BT Mini Pocket Printer With Rechargeable Battery 2500mAh Car Charger





Item

Parameter

Print parameter

Printing Method

Thermal Line

Effective Printing Width

 48mm

Resolution

384 dots/line(8dots/mm,203dpi)

Priting Speed

70mm/S

Interface

USB,Serial,Bluetooth

Line spacing

3.75mm(Can adjust line spacing by command)

Line No.

Font A:32character /Line

Font B:42 character/Line

Simplified/Tradtional character 16 Line

Character

The standard GB18030 simplified / traditional Chinese characters library

Character Size

ANK character,Font A:1.5×3.0mm(12×24 Dots)
Font B:1.1×2.1mm(9×17Dots) Simplified/Traditional:3.0×3.0mm(24×24 dots)

Bar code character

Extended character set

PC437/Katakana/PC850/PC860/PC863/PC865/WestEurope/Greek/Hebrew/EastEurope/Iran/WPC1252/PC866/PC852/PC858/IranII/Latvian/Arabic/PT151,1251/PC737/WPC/1257/ThaiVietnam/PC864/PC1001/(Latvian)/(PC1001)/(PT151,1251)/(WPC1257)/(PC864)/(Vietnam)/(Thai)

Bar code

1D.Bar code:UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)CODE39/ITF/
CODABAR/CODE93/CODE128

2D.Bar code:QRCODE

Graphics printing

Graphics printing

Supports bitmap download and print (support each bitmap size Max.8K, download up to 5pcs)

Power saving Mode

Smart power saving

Support

Variable speed printing

Support

Consumption

Support

Dormancy

Support

Dection

Sensor

Lack of paper detection

Indicator

Power Display

Support

Charge Indicator

Support

Lack of paper

Support

Beep

Lack of paper,printing abnormal alarm

Paper

Type

Thermal

Width

57.5±0.5mm

thickness

≤0.12mm

Diameter

≤40mm

Feed

Easy(Clameshell feed)

Instructions

Instruction

ESC/POS

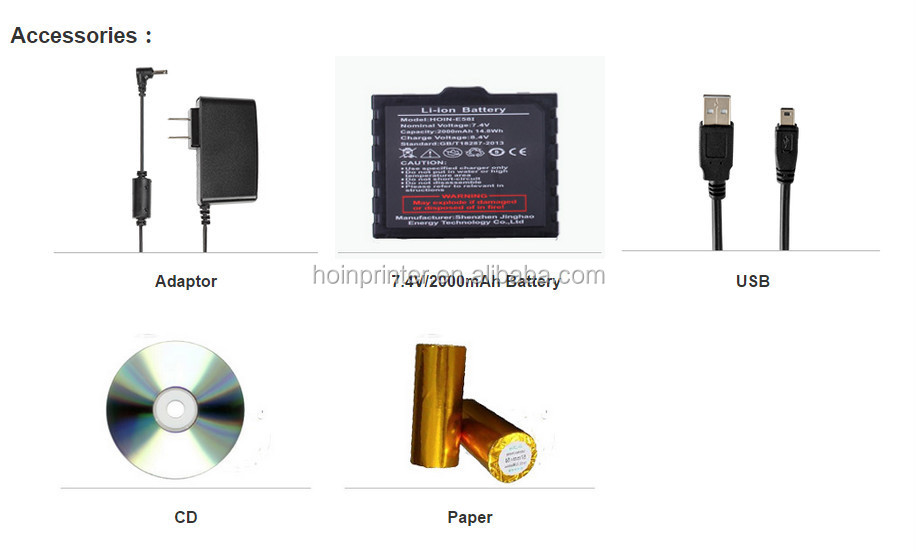

Power

Type

Rechargeable Lithium polymer battery

Capacity

2000mAh/7.4V

Charger

9.0V/2A

Buffer

Input

4KB

NV Flash

40KB

Physical features

Weight

 224g

Dimension

 114*80*50mm

Environment

Operating

Temp:5 ~ 45℃, Humidity:10 ~ 80%

Storage

Temp:-10 ~ 50℃ ,Humidity:10 ~ 90%(No Dew)

Reliability

Print head life

50KM(Printing Density≤12.5)

Software

Driver

Android,IOS,Linux,Win2000,Win2003,WinXP,Win7,Win8,Win8.1

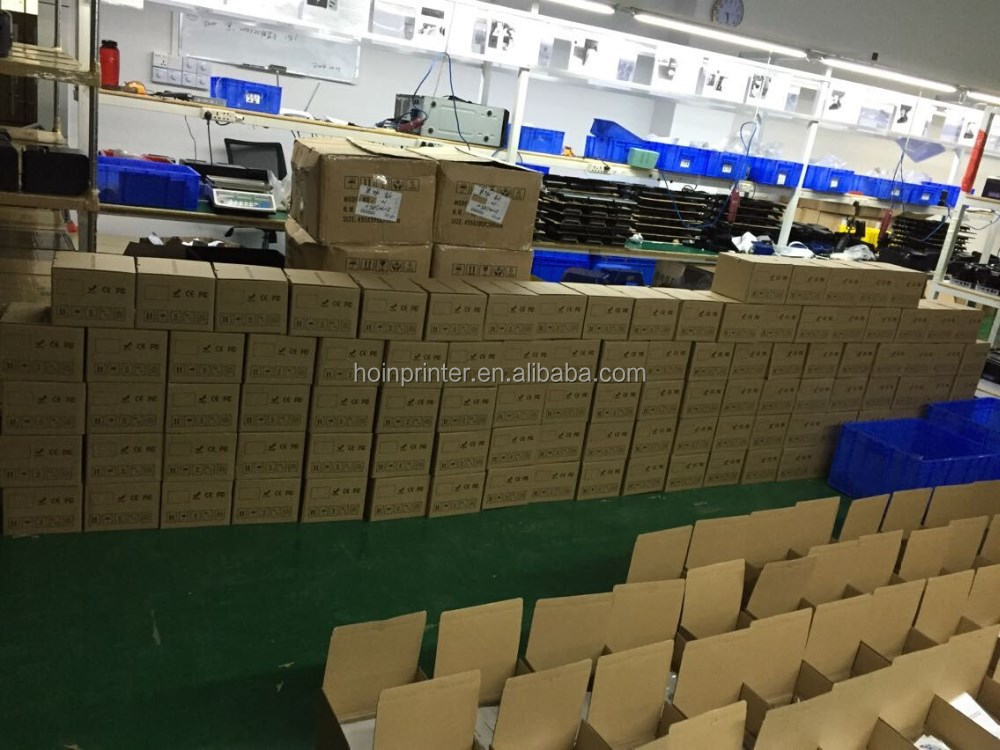

Packaging & Shipping



1pc per box,30pcs per CTN,CTN size:63*37.5*23mm  16kgs/CTN

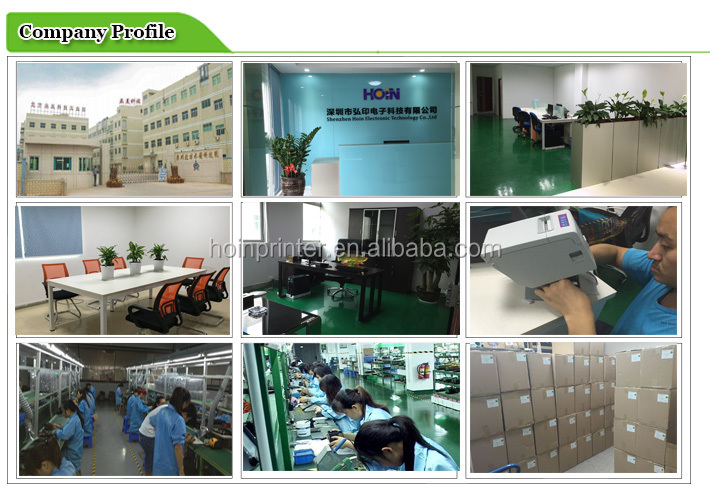

Company Information

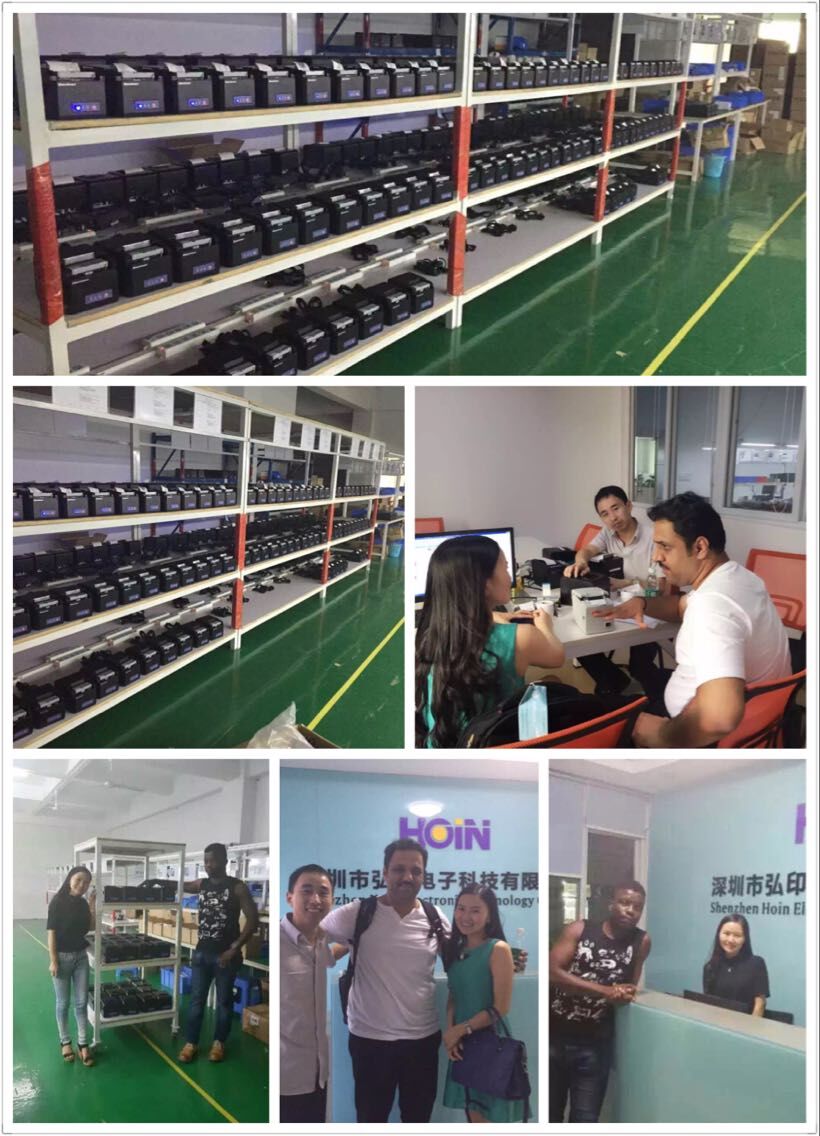

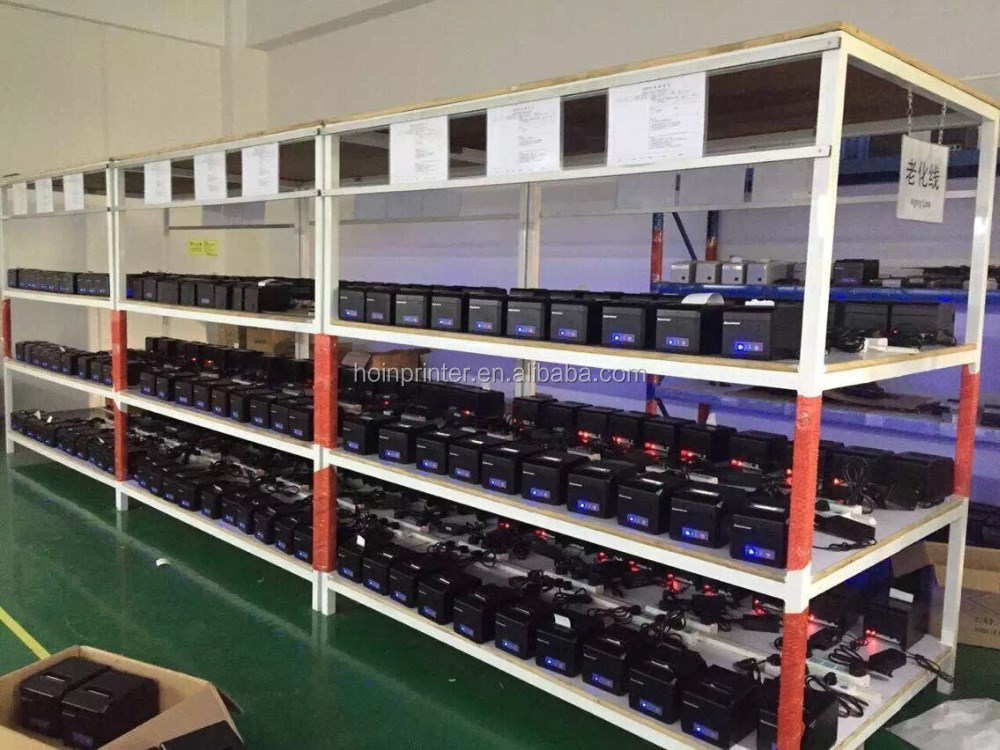

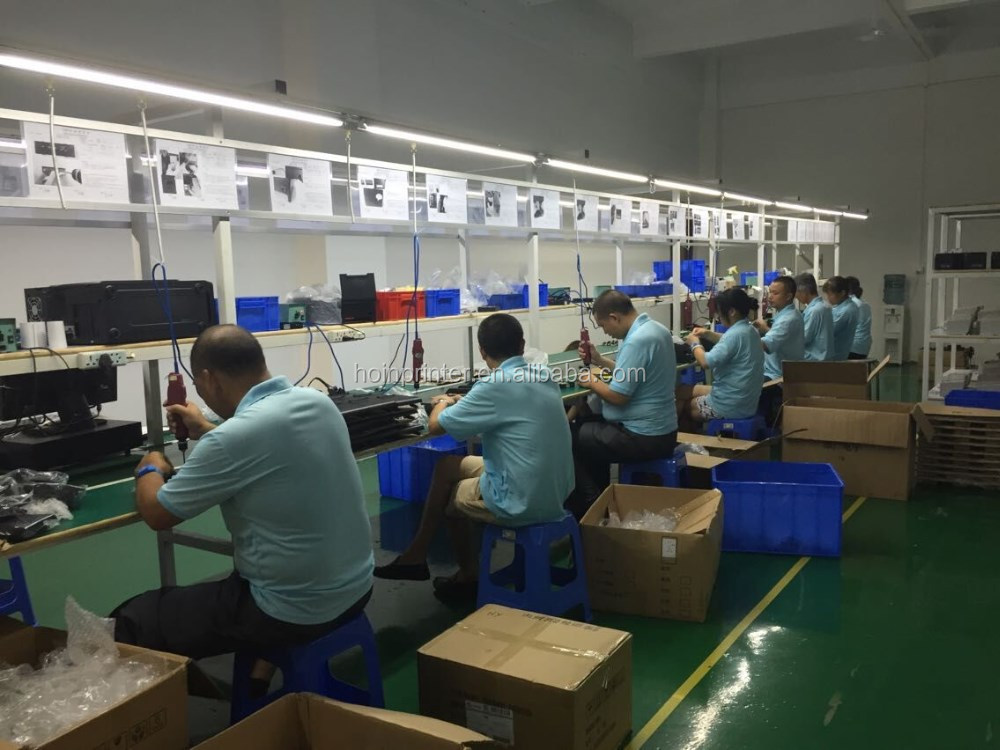

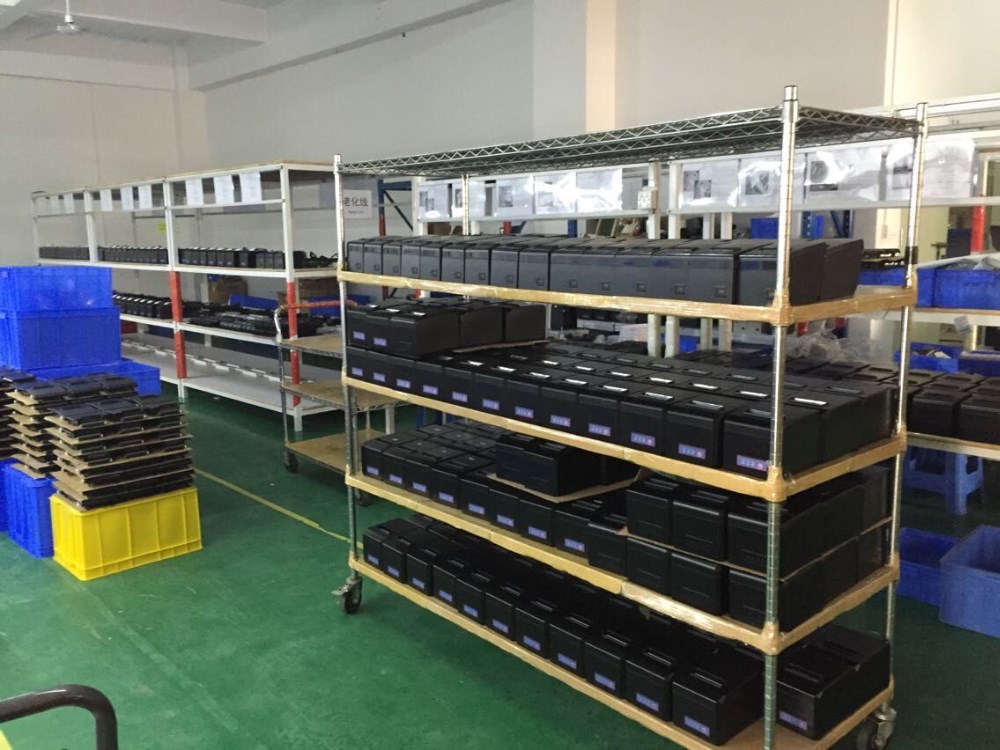

Welcome to our factory!





FAQ



1. What about your MOQ?

No,MOQ,we suport sample order.

2.What about delivery time?

For sample,3 days,bulk order usually 7-15days,depends on quantity.

3.How about Payment term?

For sample,paypal,Western Union,bulk order,L/C or T/T

4. Can you send samples for confirmation? Are they free?

Yes, of course, but no free,sorry

 6.Can customize, modify and develop products according to our requirements?

Yes, we provide OEM and ODM service.Because we have our R&D department..

7:How can your printer works with our system?

All printers will come with a CD driver, install it, then can print.

8. How about the warranty of your products?

7 days replace,1 year free  maintenance .
