  • Products Details

As expected,Shenzhen Hoin Electronic Technology Co unveils a new product relying on our advanced technologies and industrious employees. It is 80mm Thermal Printer Auto Cut With USB BT WIFI 300MM/S and can be legally exported to foreign countries. High-end technologies helps us ensure 80mm Thermal Printer Auto Cut With USB BT WIFI 300MM/S quality, improve manufacturing efficiency, and reduce manpower input. It has extensive uses in the field(s) of Printers. Shenzhen Hoin Electronic Technology Co has successfully expanded its business in market in the past few years and it is very possible for the company to have a better development in the future.

Products Status:StockType:POS thermal printer
Style:Black and whiteUse:pos thermal printer
Interface Type:Ethernet+USB+LanMax Paper Size:80mm
Black Print Speed:300mm/sColor Print Speed:Not support
Max. Resolution:576 Dots/lineBrand Name:Hoin
Model Number:HOP-E801Place of Origin:Guangdong, China
Warranty(Year):1-YearAfter-sales Service:Free spare parts
Printing Method:Thermal LineEffective Printing Width:72mm
Interface:Internet(100M)+USB+COM;Internet(100M)+USB+WIFI;USB+GPRS;USB+COMbarcode:1D,2D
paper width:79.5±0.5mmpaper thickness:≤0.12mm
paper Diameter:≤80mmWeight:1Kgs
Dimension:186*145*133mmPrint Head Life:100KM(print density≤12.5)
Certification:FCC, ce, RoHS

Product Description

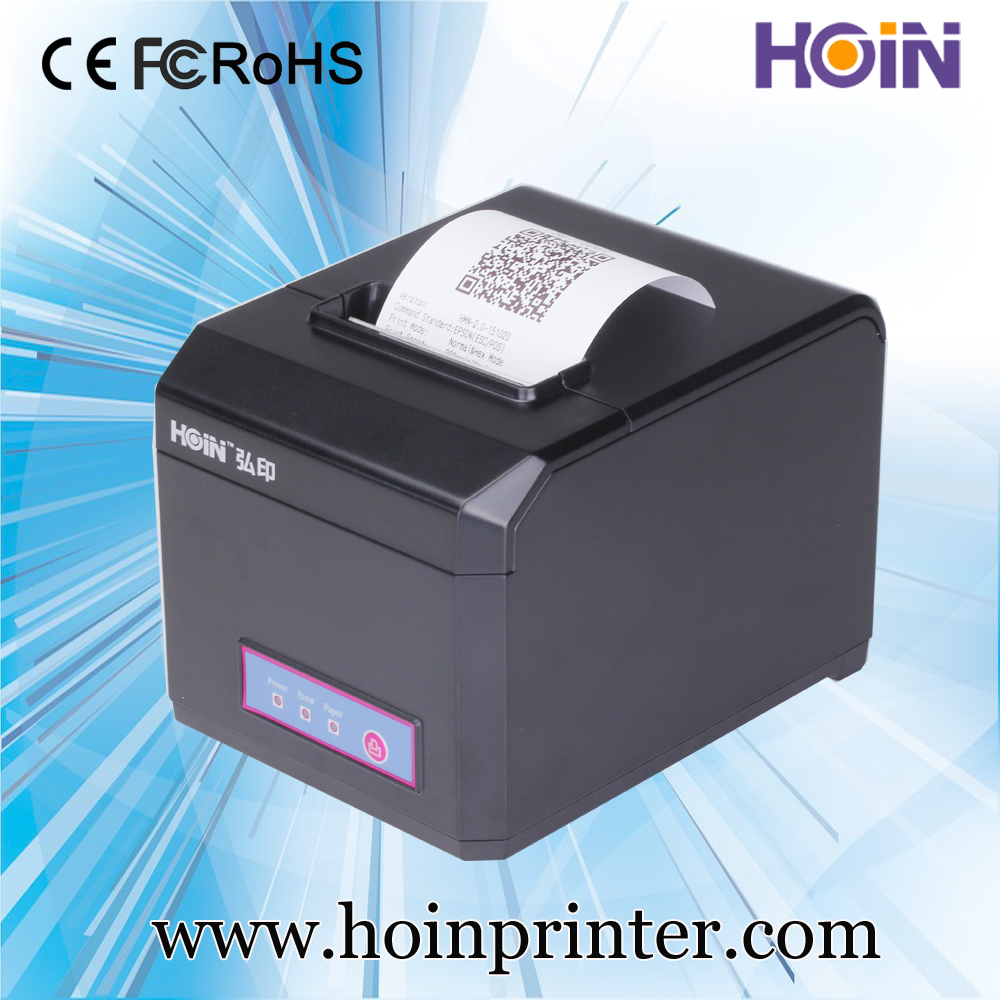

80mm Thermal Printer Auto Cut With USB BT WIFI 300MM/S



Item

 Parameters

Print parameters

Printing Method

Thermal Line



Printing width

72mm



Resolution

576 Dots/Line or 512 Dots/Line(8dots/mm,203dpi)



Print speed

300mm/Second



Interface

Internet(100M)USB+COM;Internet(100M)+USB+WIFI;USB+GPRS;USB+COM;USB+Bluetooth



Line Spacing

3.75mm(Can adjust line spacing by command)



Line No.

Font A-32 Lines/Font B-42 Lines/Simple traditional Chinese-16 Lines



Character

 standard GB18030 simplified / traditional Chinese Fonts



Character Size

ANK character,Font A:1.5×3.0mm(12×24 dots)
Font B:1.1×2.1mm(9×17 dots) Simplified/Traditional Chinese:3.0×3.0mm(24×24 dots)

Bar code Character

Extended character set

PC437/Katakana/PC850/PC860/PC863/PC865/WestEurope/Greek/Hebrew/EastEurope/Iran/WPC1252/PC866/PC852/PC858/IranII/Latvian/Arabic/PT151,1251/PC737/WPC/1257/ThaiVietnam/PC864/PC1001/(Latvian)/(PC1001)/(PT151,1251)/(WPC1257)/(PC864)/(Vietnam)/(Thai)



Bar code

1D bar code:UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)CODE39/ITF/
CODABAR/CODE93/CODE128

2D barcode:QRCODE

Graphics printing

Graphics printing

Supports bitmap download and print ( each bitmap size Max.20K)



Cutter

Cutter Function

 Full cut/Half cut

Paper

Type

Thermal



Width

79.5±0.5mm



Diameter

80mm



Feed method

Easy feed(Clameshell feed)

Print commands

Commands

ESC/POS

Power

Power Adaptor

Input:AC 110V/220V,50~60Hz

Output:DC 24V/2.5A



Cash Drawer output

DC 24V/1A

Buffer

Input Buffer

2048K bytes



NV Flash

256K bytes

physical characteristics

Weight

 1kgs



Dimension

 186*145*133mm

Environment

Working

Temp:5 ~ 45℃, Humidity:10 ~ 80%



Storage

Temp:-10 ~ 50℃ ,Humidity:10 ~ 90%(No dew)

Reliability parameter

Print Head Life

100KM(print density≤12.5)



Cutter Life

1000,000times

Software

Driver

Android,IOS,Linux,Win2000,Win2003,WinXP,Win7,Win8,Win8.1

























Application:





Shopping malls, restaurants, stores, warehousing, taxation, banking, medical, postal





Packaging & Shipping

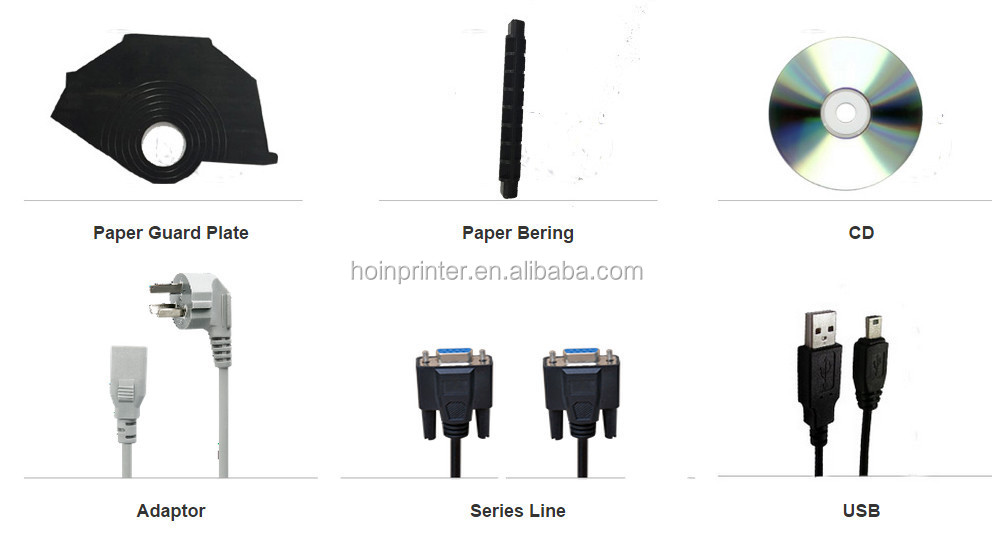

Accessories



Company Information



Why choose us?

1.Hoin is one of the most professional Thermal Printer Manufacturer in Shenzhen China

2.All engineers with more than 8 years experiences in thermal printers

3.OEM,ODM available

4.Free software,SDK

5.All printers with 1 year warranty,all life free maintenance

6.All printers with CE,FCC,ROHS

7.High quality,fast delivery,sample 3-5days,bulk order 15days

FAQ



1. What about your MOQ?

No,MOQ,we suport sample order.

2.What about delivery time?

For sample,3 days,bulk order usually 7-15days,depends on quantity.

 3.How about Payment term?

For sample,paypal,Western Union,bulk order,L/C or T/T

4. Can you send samples for confirmation? Are they free?

Yes, of course, but no free,sorry

5.Can Customize,modify and develop products according to our requirements?

Yes, we provide OEM and ODM service.Because we have our R&D department. .

6:How can your printer works with our system?

All printers will come with a CD driver, install it, then can print.

7. How about the warranty of your products?

7 days replace,1 year free  maintenance .

8.Are you the manufacturer or trading company?

We are the professional thermal receipt printer manufacturer located in Baoan shenzhen Songgang,we specialized in thermal printers developing and manufacturing.Welcome to our factory.

9.How will you control the printer's quality?

We fully tested every components and procedures,we have QC persons in every production procedures.
