If the automatic cutter of your 80mm thermal receipt printer gets stuck during use, don’t worry—this is a common minor malfunction that can be resolved quickly with simple manual operations. Follow the step-by-step guide below to fix it safely without damaging the printer:

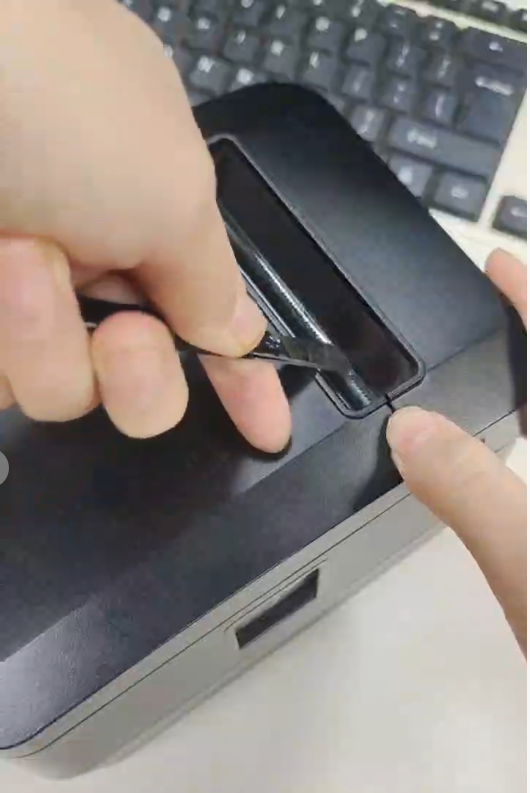

• Open the Cutter Cover

First, power off the printer to avoid accidental activation during operation (this is a key safety precaution for Hoin thermal printer maintenance). Then, Do not attempt to force the main paper cabin open. Instead, use a small tool (such as a flathead screwdriver) to gently pry open the front plastic cover of the cutter mechanism. (As shown in the figure)

Note: Refer to the diagram for the exact position of the opening notch to ensure you apply force evenly and prevent the cover from breaking.

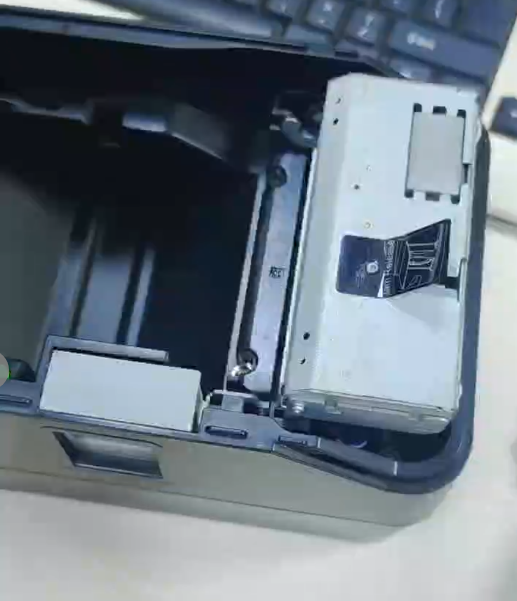

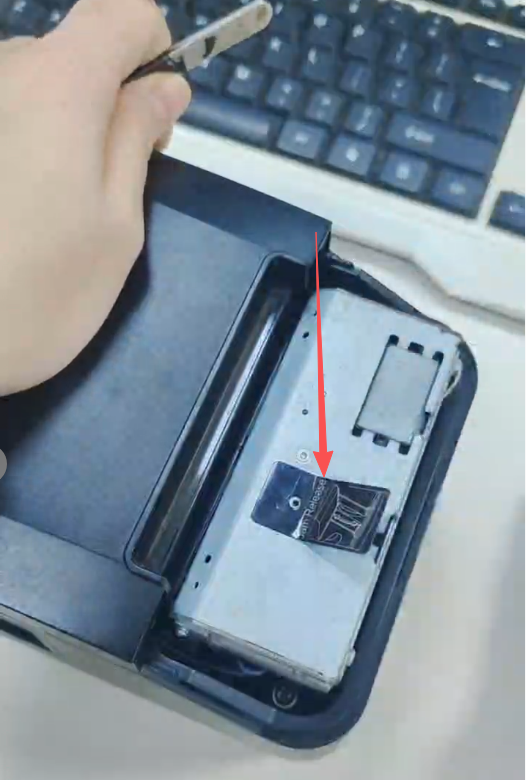

• Locate the Manual Adjustment Gear

After opening the front cover, look inside the printer’s paper compartment. You will find a prominent black gear (marked with a black label for easy identification, as shown in the figure). This gear is directly linked to the cutter mechanism—adjusting it will help reset the stuck cutter.

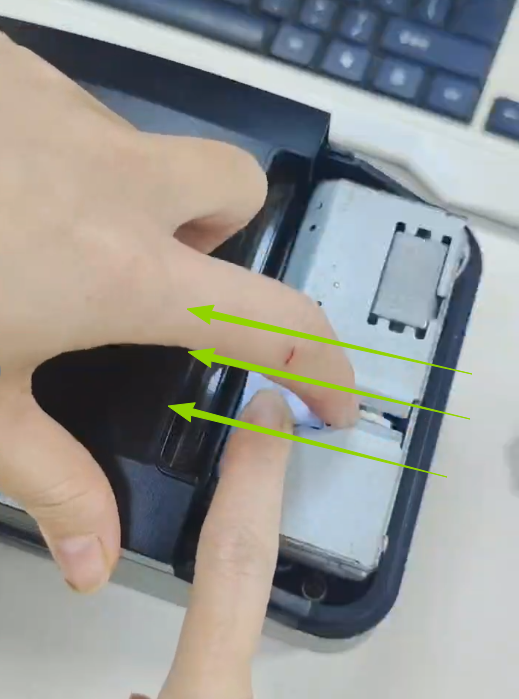

• Manually Reset the Cutter Blade

Hold the black gear firmly with your fingers (or use a tool for better grip if needed) and rotate it slowly toward the interior of the printer. Rotate continuously until you feel resistance decrease—this indicates the stuck cutter is being pulled back by the gear’s movement. (As shown in the figure)

Note: Rotate gently and steadily; do not use excessive force to avoid damaging the gear or cutter assembly. The rotation direction is inward (toward the center of the printer).

• Open the Paper Cabin

Once the blade has retracted, the locking mechanism will release. You should now be able to open the printer’s paper cabin cover normally. Clear any jammed paper or debris from the print head and the cutter path. (As shown in the figure)

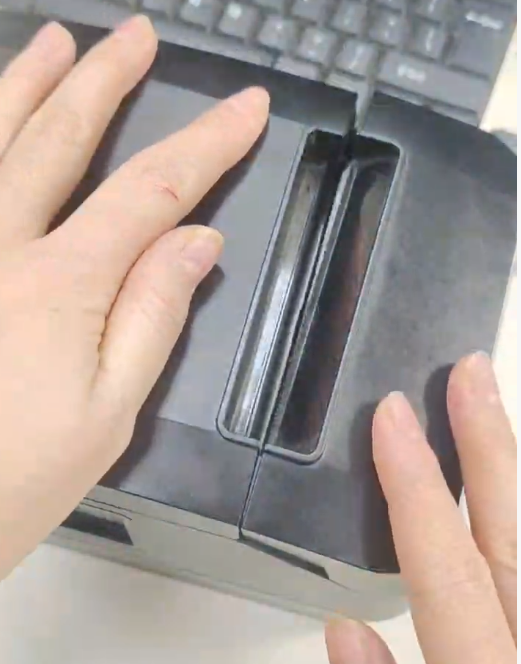

• Reassemble and Test

After confirming the cutter is retracted and the paper compartment is clear, align the front cover with the printer’s body and press it firmly until you hear a "click"—this means the cover is securely closed. Power on the printer and perform a test print to verify that the cutter works normally. (As shown in the figure)

Choosing the right technology is the first step toward printing efficiency. The core difference between Thermal Transfer and Direct Thermal printer lies in their working principles and required consumables. These factors directly determine their application, cost structure, and print quality.

This following guide will help you navigate the two technologies:

I. Comprehensive Comparison Overview

II. Technical Deep Dive: The Printing Process

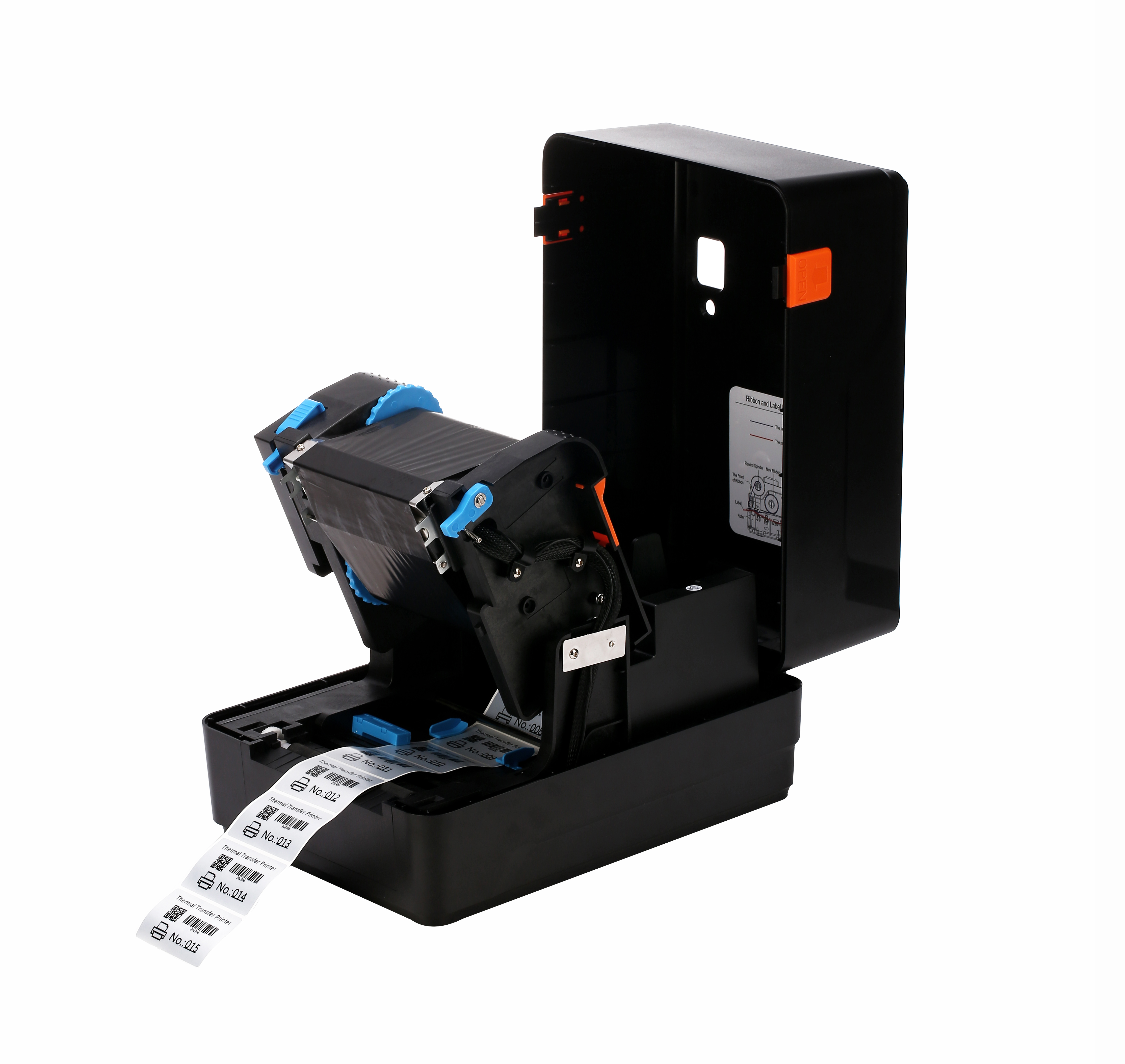

1. Thermal Transfer Printing: The "Transfer" Process

This process involves three components: the label roll, the ribbon roll, and the printhead. The ribbon acts as an "ink film" between the printhead and the label. When the printhead heats up, it melts the ink on the ribbon, transferring it onto the label surface to create a permanent bond. This results in an extra layer of ink attached to the label for maximum protection.

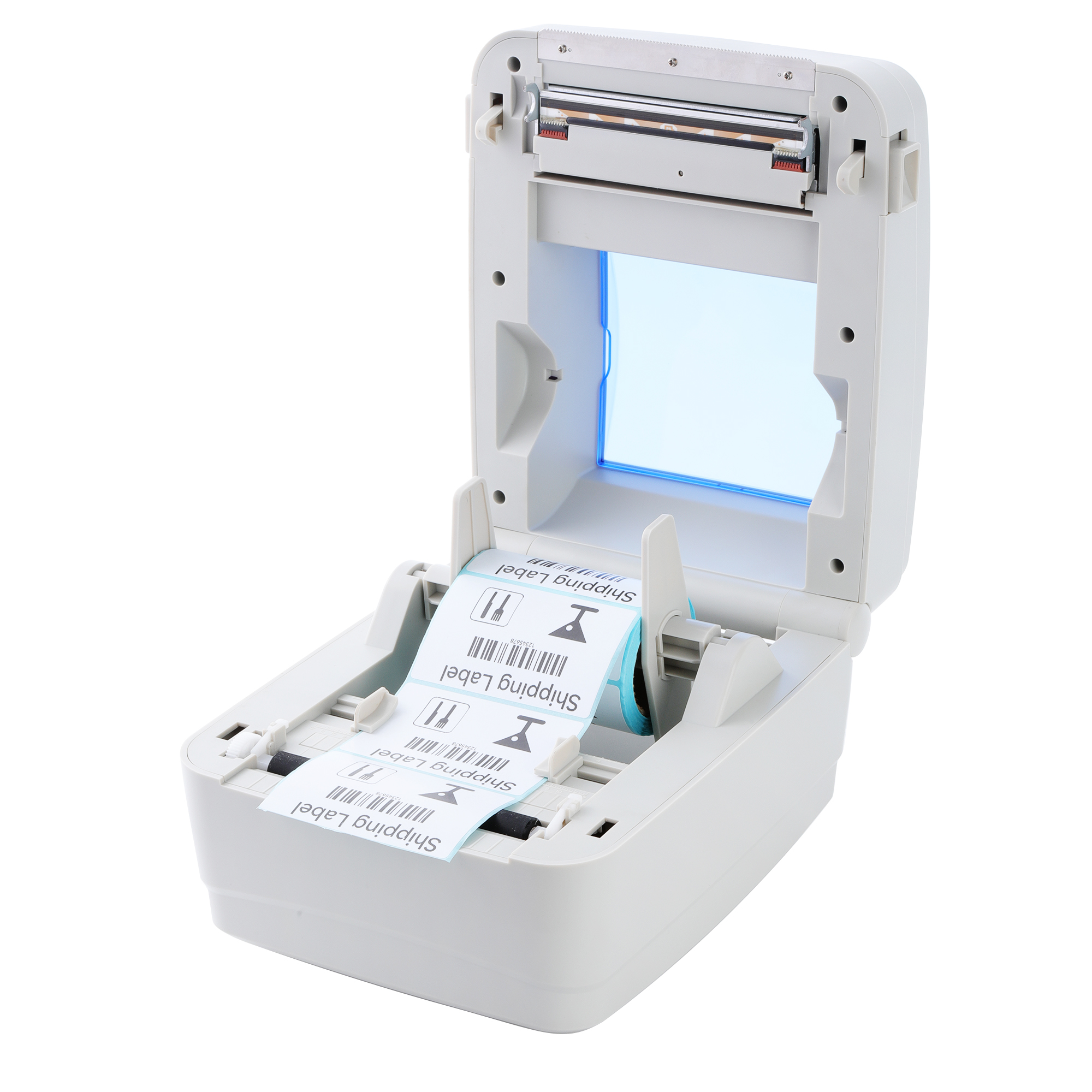

2. Direct Thermal Printing: The "Development" Process

This is a chemical process involving only the printhead and the thermal paper. The paper is coated with a colorless dye and a developer. The printhead applies heat directly to the paper, causing a chemical reaction that creates a black image. No extra substance is added; the image is generated inside the paper's coating. This technology is the backbone of almost every thermal receipt printer in the retail world.

III. The Decision Logic: Which One Should You Choose?

Choose a Direct Thermal Printer if:

• Your labels are for short-term use (e.g., receipts or shipping labels scanned within days/weeks).
• Your environment is mild (no extreme heat, sunlight, or chemicals).
• You want a simple, "no-fuss" operation without managing ribbons.
• You have a limited initial budget or low printing volume.

Choose a Thermal Transfer Printer if:

• You need long-term durability (months or years), such as for asset tags or equipment nameplates.
• Labels will face harsh conditions (outdoor use, oil, chemicals, high heat, or heavy friction).
• You need to print on special materials like plastic, cloth, or synthetic labels.
• You require the highest possible scanning success rate for high-density barcodes.
• You have high printing volumes where the long-term total cost of ownership is lower.

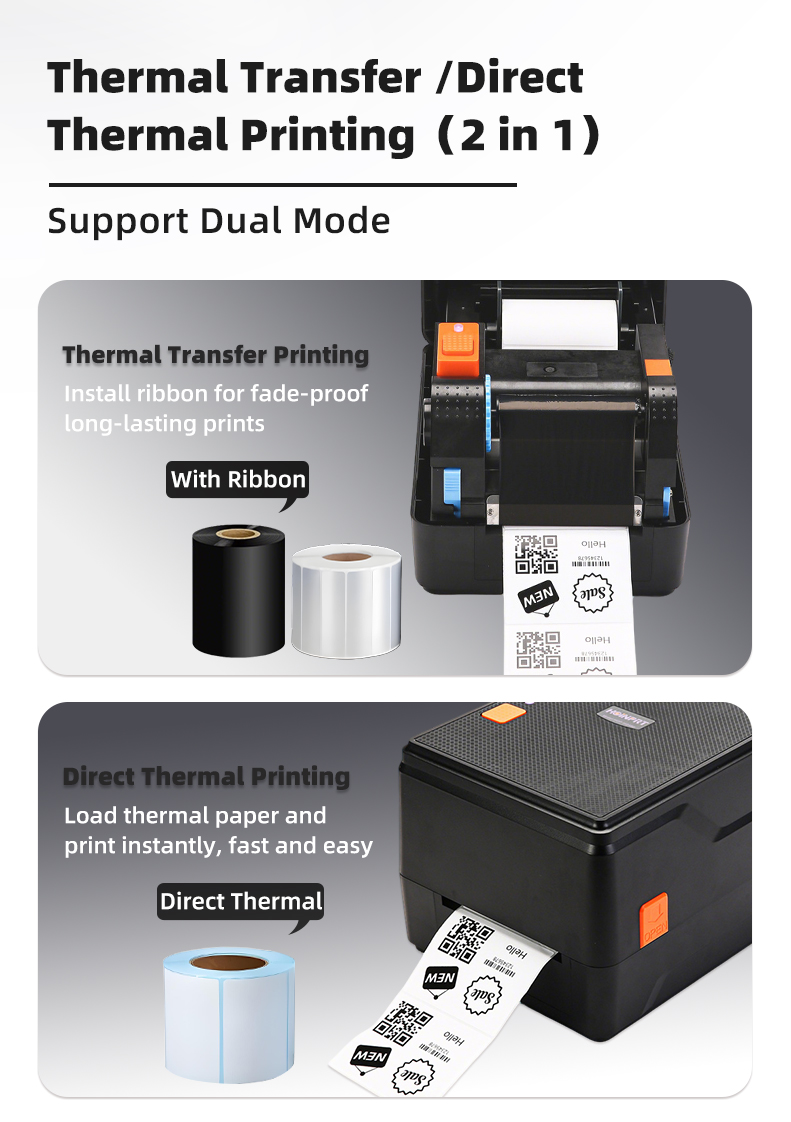

IV. Pro Tip: The Best of Both Worlds

Many high-end commercial and industrial models act as "Hybrid" machines. For example, the Hoin thermal printer series (such as the 4-inch HOP-HQ490) supports both Thermal Transfer and Direct Thermal modes. This allows you to use ribbons for durable labels or go ribbon-free for standard receipts, providing the ultimate flexibility for your business.

Summary:

Thermal Transfer = Durability + Flexibility + Professionalism (Best for long-term identification).

Direct Thermal = Convenience + Economy (Best for short-term information flow).

Choose based on how long your information needs to "survive" and the environment it will "work" in!

1. What Is a Food Delivery Cloud Printer?

A food delivery cloud printer is an intelligent printing device specifically designed for the catering and food delivery industry. It can automatically receive and print orders from various food delivery platforms via the internet, enabling fully automated order acceptance. As a powerful tool to improve operational efficiency, it eliminates the need for manual order checking and entry, greatly streamlining the workflow for catering businesses.

2. How It Works (Flowchart)

Step-by-Step Usage Guide

The specific operations may vary by brand and model, but the core logic is consistent. Here’s the general process:

1. Device Preparation & Network Connection

• Power On & Load Paper: Connect the printer to a power source and load the appropriate size of thermal paper roll (e.g., 58mm or 80mm wide) as instructed.
• Network Configuration (Critical Step):
• Wi-Fi-enabled models: Press a specific function key when the printer is in standby mode. It will print a receipt containing a configuration QR code. Scan this QR code with WeChat on your mobile phone, navigate to the configuration page, and enter your Wi-Fi password to complete the connection.
• 4G-enabled models: Simply insert a 4G SIM card to access the internet, offering greater flexibility for locations with unstable Wi-Fi.

2. Bind Platforms & Printer

• Register and log in to your account on the cloud printing service provider’s (e.g., Feie, Jialabo, Daqu) WeChat official account or official website.
• Go to the "Add Printer" section. Bind the printer to your account by either scanning the QR code on the information receipt printed by the printer or manually entering the "terminal number" located on the printer body.
• Find the "Bind Store" or similar option on the platform, log in to your merchant accounts on Meituan, Ele.me, or other food delivery platforms, and authorize the cloud printing service. Once successful, the system will automatically send orders to the designated printer.

3. Personalized Settings & Daily Use

• Print Template Customization: In the cloud platform backend, you can customize the receipt content—such as adding your store logo, promotional information, and adjusting the font size or layout of dishes—to meet your business needs.
• Multi-Device Collaboration: For larger stores, set up multiple printers to handle front-of-house orders, kitchen orders, beverage orders, etc., separately, achieving efficient collaborative work.
• Auto Printing: Keep the printer powered on and connected to the internet. When a customer places an order, the printer will automatically print the order receipt, usually accompanied by a voice broadcast, significantly reducing the risk of missed orders.

3. Core Advantages & Selection Criteria

3.1 Core Advantages

Food delivery cloud printers are popular mainly due to the efficiency improvements they bring:

• Fully Automated Order Acceptance: Merchants don’t need to stay by computers or mobile phones, enabling 24/7 unattended order reception.
• Multi-Platform Integration: One device can simultaneously receive and process orders from major food delivery platforms like Meituan and Ele.me.
• High Reliability: Equipped with offline order recovery. Even if the network is temporarily disconnected, the printer will automatically reprint missed orders once the network is restored, effectively preventing order loss.
• Efficiency Enhancement: Reduces manual operations, lowering error rates and labor costs.

3.2 Key Selection Factors

When choosing a food delivery cloud printer, focus on the following points:

• Network Mode: Select Wi-Fi version for stable in-store networks, or 4G version for greater flexibility.
• Print Width: Choose between 58mm and 80mm based on the amount of order information (80mm is ideal for detailed orders with multiple dishes).
• Brand & Service: Opt for reputable brands with comprehensive after-sales support. Check if their SaaS management system meets your business requirements.

Choose the HOIN food delivery cloud printer for reliable performance and tailored solutions. Our products support custom development, are widely compatible with major food delivery platforms, and stand out for fast printing speed and stable performance—making us a trusted choice for catering businesses.

1. Product Overview

The HOIN HOP-RP4 is a newly launched 4-inch portable industrial label printer designed specifically for industrial scenarios. It’s a waterproof and drop-resistant thermal label printer that supports multiple connection modes (Bluetooth/USB/Wi-Fi/Ethernet) and offers 203dpi printing resolution.

It is fully compatible with shipping label formats of cross-border platforms like Amazon and AliExpress, and meets the high-intensity label printing needs of warehousing, logistics, retail, and other industries. With this portable printer, staff can print and paste labels anytime, anywhere as needed, greatly improving productivity and reducing errors.

It can print labels/receipts up to 104.1mm (4.1 inches) in size and supports various media, including thick paper for hang tags and special labels.

In terms of connectivity, it supports USB 2.0 printing via a Type-C interface (complying with USB 2.0 communication protocol), Ethernet printing (complying with IEEE 802.3 standard TCP/IP protocol) for places without wireless communication, and the latest 802.11 a/b/g/n/ac Wi-Fi protocol for long communication distance and fast data transmission within your wireless LAN. Additionally, it supports Bluetooth 5.0 LE, allowing staff to work outside the wireless LAN range or collaborate with Bluetooth-enabled mobile data terminals at no extra cost.

2. Core Advantages: Industrial-Grade Durability & Intelligent Design

2.1 Rugged Protection & Portability

• Features an IP54 protection rating, capable of withstanding harsh environments with dust and water splashes. Weighing only 2.26kg (1.02kg with battery, excluding media) and boasting an ergonomic lightweight design, it’s easy for outdoor workers to carry around.
• Equipped with multiple sensors (such as gravity sensor, temperature sensor, and black mark sensor) to ensure accurate media positioning during printing and reduce paper jams.

2.2 Long Battery Life & Efficient Printing

• Comes with a 24V-2.5A fast-charging power adapter (supporting Qualcomm’s fast-charging protocol). Optional Bluetooth module enables wireless printing. It’s compatible with various media like thick paper, hang tags, and linerless labels, with a maximum printing width of 104mm (4 inches).
• Compared to Honeywell RP4f’s industry-standard 104mm printing width, the HOIN HOP-RP4 matches it in print format and supports variable paper widths from 25.4mm to 115mm for greater flexibility.

2.3 Intelligent Software & Cross-Platform Compatibility

• Built-in 8MB flash memory + 8MB RAM, supporting mainstream printer languages such as ESC/POS, TSPL2, ZPL-II, and CPCL. It seamlessly integrates with label design software like Bartender and NiceLabel.
• Compatible with Windows, iOS, Android, and Linux systems. Offers OEM customization services, supporting enterprise private deployment and brand labeling.

3. Technical Specifications (HOP-RP4 Portable Label Printer)

Physical Characteristics

• Dimensions (H x W x D): 173mm x 160mm x 75mm
• Weight: 1.02kg (with battery, excluding media)

Media

• Media roll width: 25mm (1.0in) to 111mm (4.4in)
• Maximum printing width: 104mm (4.0in) (same as RP4f)
• Media types: Hang tags, receipt paper, labels, lined and linerless* labels with black mark or gap sensing
• Maximum label roll capacity: Outer diameter of 50mm
• Label roll core size: Inner diameter 0mm (0in), 10.16mm (0.4in), 19mm (0.75in), or 25.4mm (1.0in)
• Media thickness: 0.05mm (2mil) to 0.16mm (6.3mil) (for optimal print quality and printer performance)

Power

• Battery: 7.4V Li-ion battery
• Capacity: 5200mAh
• DC input (charging only): 5V

Environmental Parameters

• IP rating: IP54
• Drop resistance: Withstands falls from 2m (6.6ft)
• Roll test: 1,000 rolls from 0.5m (1.6ft)
• Operating temperature: -20°C to 55°C (-4°F to 131°F)
• Storage temperature: -30°C to 65°C (-22°F to 149°F)
• Charging temperature: 0°C to 40°C (32°F to 104°F)
• Operating humidity: 10% – 90% (no condensation)
• Storage humidity: 10% – 90% (no condensation)

Communication & Connectivity

• Interfaces: USB 2.0, Ethernet, Bluetooth, Wi-Fi
• NFC: For pairing/reading/writing ID cards
• Bluetooth: Bluetooth 5.0 + LE dual-radio mode; serial port profile, security modes 1-4, encryption 1-3e; compatible with Apple iOS
• Wi-Fi: 802.11 a/b/g/n/ac; wireless modes: Infrastructure and ad-hoc
• Supported internet protocols: UDP/TCP, DHCP, BootP, FTP, FTPS, SFTP, TFTP, Telnet, LDP, SNMP
• OLED display: Shows battery charging status, battery level, media status, and communication status

Software/Firmware

• Printer languages: ESC/POS, TSPL, FP/DP (Fingerprint/Direct Protocol), DPL (Datamax Printer Language), ZPL II (Zebra Printer Language), IPL (Intermec Printer Control Language), XML Printing, C# PDF, CPCL, EZ-Print
• Drivers: Compatible with Microsoft® Windows® XP/Vista/7/8/10/11

The HOIN HOP-RP4 meets industrial-grade standards in core performance. It outperforms high-end brands significantly in media adaptability and cost control, making it particularly suitable for small and medium-sized logistics enterprises or cross-border sellers to achieve low-cost and efficient label printing.

4. Application

• Cross-border e-commerce: One-click printing of shipping labels for Amazon, AliExpress, Shopee, etc., supporting batch barcode generation.
• Logistics & warehousing: Carried by outdoor couriers to print shipping labels in real time; IP54 protection handles rainy-day operations.
• Retail inventory: Bluetooth connection to mobile phones/tablets for quick printing of price tags and inventory cards, reducing fixed equipment investment.

5. Summary

The HOIN HOP-RP4 meets industrial-grade standards in core performance. It outperforms high-end brands significantly in media adaptability and cost control, making it ideal for small and medium-sized logistics enterprises or cross-border sellers seeking cost-effective and efficient label printing. Its OEM customization service further lowers the procurement threshold for enterprises, suiting users who value a balance between practicality and cost.

For detailed ordering parameters or to request sample testing, refer to the technical manual on HOIN’s official channels.

Understanding the science behind thermal printing is key to optimizing your business operations. As a leader in the industry, Hoin utilizes advanced thermal technology to deliver high-performance printing solutions. This guide breaks down the core components and benefits of the Hoin thermal printer series.

1. Basic Structure

A modern thermal printhead is a masterpiece of micro-heating integration. The core components of our printers include:

• High-Precision Heating Array: Built using thin-film technology, our resistor wire arrays feature precision under 10μm. This supports high-resolution outputs ranging from 203dpi to 600dpi.
• Advanced Temperature Control: We integrate PID algorithms and sensors with millisecond response times. Utilizing Pulse Width Modulation (PWM), the system can instantly shift temperatures from 50°C to 300°C for precise imaging.
• Diamond-Like Carbon (DLC) Coating: To ensure long-term reliability, our printheads are protected by a DLC coating. This increases the printhead lifespan to over 100km—five times longer than traditional ceramic coatings.

2. Working Principle

When the printhead of a Hoin thermal printer reaches the preset threshold (typically 180°C–220°C), a chemical reaction occurs within the thermal paper coating:

• Color Activation: Under heat, colorless dye molecules (such as crystal violet lactone) undergo a structural change, opening their molecular rings.
• Color Development: These active molecules react with a developer (such as BPA) through electron transfer to form a stable, visible complex—usually appearing as deep black.
• Fast Kinetics: This entire chemical reaction happens in milliseconds. For every 10°C increase in temperature, the reaction rate triples, enabling high-speed printing.

3. Performance Advantages

Thermal technology offers several operational benefits over traditional dot matrix or inkjet printers:

Ultra-Fast Response & Quiet Operation

Thermal printing technology eliminates the mechanical moving parts of traditional printing methods. Its printing speed can reach up to 250mm/s, which is more than 10 times faster than dot matrix printing. With ultra-low operating noise (≤45dB), it boasts a natural advantage in environments requiring quietness, such as healthcare facilities and libraries.

Excellent Resolution Performance

Equipped with a printhead manufactured via microfabrication technology and paired with specially coated thermal paper, it achieves a printing precision of 600dpi. Through halftone processing algorithms, it can render continuous grayscale effects, meeting special requirements like medical imaging printing.

Eco-Friendly & Energy-Efficient Features

The thermal printing process requires no consumables such as toner or ribbons, and its energy consumption is only 1/3 that of laser printing. When combined with biodegradable thermal paper technology, the total lifecycle carbon footprint is reduced by over 60%.

4. Applications

The versatility of Hoin thermal printer technology makes it the go-to choice for various industries:

• Retail & Catering: Used as a thermal receipt printer for instant checkout and kitchen order management.
• Logistics & Warehousing: High-speed waybills and inventory tracking labels.
• Healthcare: Patient wristbands, prescription labels, and diagnostic records.
• Public Services: Self-service ticketing, parking receipts, and bank queuing numbers.

To ensure the longevity and peak performance of your Hoin thermal printer, regular maintenance and correct configuration are essential. This guide covers common troubleshooting steps, media selection, and operational tips for your thermal receipt printer.

I. Daily Maintenance & Troubleshooting

1. How often should the thermal printhead be cleaned?

It is recommended to clean the printhead after printing 1-2 rolls of paper, or promptly when printouts become blurry. Never scratch the printhead with hard objects to avoid permanent damage.

2. The printer has no response when powered on. What should I do?

• Check if the power adapter is damaged and replace it with one of the same specifications if necessary.
• Ensure the power interface is properly connected. If there is still no response, the mainboard may need professional inspection and repair—do not disassemble the printer yourself.

3. Print content is misaligned or the layout is messy. How to fix it?

• Calibrate the printer’s printing parameters, and adjust the margins and line spacing.
• Verify that the page settings in your printing software match the paper specifications of the printer.

II. Paper & Consumables

1. The printer fails to feed paper or jams frequently. What can I do?

• Remove any jammed paper and foreign objects from the paper compartment. Adjust the paper guides to fit the paper roll snugly.
• Confirm the thermal paper is installed correctly (the thermal-coated side should face the printhead).

2. The printer prompts "paper out" but there is paper in the compartment. Why?

• Clean the paper detection sensor.
• Replace the paper roll with a standard one that meets the printer’s specifications. Thin or non-standard paper often causes detection failures.

3. Paper feeds excessively or has abnormal output. How to resolve it?

• Perform the "paper calibration" function via the printer’s control panel or driver.
• Clean dust from the sensor and try again.

III. Functional Operations

1. How to switch modes on a dual-mode thermal printer?

There are two common ways to switch modes, depending on your printer model:

• Button Switching:
  • Turn off the printer.
  • Press and hold the FEED button (or the specified combination key) while powering it on.
  • Press the feed button to select the target mode.
  • Press and hold the button again to save the setting.

• Software Switching:
  • Open the configuration tool provided by the manufacturer.
  • Select the desired mode in the tool.
  • Save the settings and restart the printer for the change to take effect.

This guide details the step-by-step setup process for Wi-Fi and Bluetooth on HOIN thermal printers, with clear instructions to ensure smooth wireless connectivity. The operations are compatible with most HOIN thermal printer models and common devices.

Configuration via PC Tool

• Connect the printer to your computer using a USB cable.
• Launch the configuration software provided by the manufacturer.
• Navigate to the Wi-Fi Settings section.
• Enter your Wi-Fi credentials (SSID and password) to establish the connection.
• Restart the printer to apply the settings.

1. How to Set Up Wi-Fi for Thermal Printers

HOIN thermal printers support Wi-Fi configuration via a PC tool. Follow these steps for stable connection:

Step 1: Establish a USB Connection

• Connect the thermal printer to your computer using a USB cable.
• Power on the printer. Open the HOIN Wi-Fi configuration software on your computer.
• Click "Printer Port Test" in the software. If the printer outputs a test receipt, the USB connection is successful.

Step 2: Configure Wi-Fi Parameters



• If your computer is connected to the same Wi-Fi as the printer will use: Keep the first three segments of the IP address unchanged (e.g., 192.168.155.x) and set the fourth segment to a random number between 3–256 (e.g., 192.168.155.60).
• If the network settings are inconsistent: Change your computer's network to the one the printer needs to connect to, then reconnect. (Ensure the first three segments of the printer’s IP address match your Wi-Fi gateway, and the subnet mask/gateway are consistent with your Wi-Fi network settings. The fourth segment of the IP address should still be between 3–256.)

• Click "Save Parameter" in the software. The printer will print a confirmation receipt once the settings are saved.
• Power off the printer, then power it back on to apply the Wi-Fi configuration.

Step 3: Verify the Wi-Fi Connection

• Print a Self-Test Page: Turn off the printer. Press and hold the print button, then power on the printer. Keep holding the button for 2 seconds and release it—the printer will print a self-test page. Check if the "Printer WIFI IP" on the page matches the IP address you set.

• Test via Network Port: Disconnect the USB cable from the printer. In the configuration software, select "Ethernet Port", enter the set Wi-Fi IP address, and click "Printer Port Test". If the printer prints successfully, the Wi-Fi connection is working properly.

2. How to Set Up Bluetooth for Thermal Printers

A. Bluetooth Setup for Smartphones/Tablets

Step 1: Get Printer Bluetooth Information

• Print a self-test page (follow the method in Section 1, Step 4) to find the printer’s Bluetooth name and PIN code (both displayed on the self-test page).

Step 2: Pair and Connect

• Enable Bluetooth on your smartphone/tablet.
• Search for nearby Bluetooth devices and select the printer’s Bluetooth name (from the self-test page).
• Enter the PIN code (found on the self-test page) when prompted to complete pairing.

Step 3: Use the Printer in Your App

• Open your preferred printing app.
• In the app’s "Printer Settings", select the paired printer’s Bluetooth name. You can now print wirelessly.

B. Bluetooth Setup for Windows Computers

Step 1: Open Settings → Bluetooth & devices.

Step 2: Click Add device → Select Bluetooth → Choose the printer’s Bluetooth name → Complete pairing.

Step 3: Check the Bluetooth-configured COM port in Device Manager:

• You can first print a self-test page to find the printer’s Bluetooth address.
• Or query it manually: Open Device Manager → Expand Bluetooth → Right-click the connected Bluetooth name → Select Properties.

Open the Details tab in Properties, then select Bluetooth Device Address from the drop-down menu.

You can view the Bluetooth address here.

Return to Device Manager. Under the "Ports (COM & LPT)" section, several ports (e.g., COM13, COM14) will be displayed. You need to find the COM port associated with the printer’s Bluetooth. Below is the correct way to locate the corresponding serial port.

Step 4: If the Bluetooth device address displayed for a COM port matches the printer’s Bluetooth address, this COM port is the one connected to the printer’s Bluetooth.

Step 5: Select this serial port as the default port in the printer driver, then click "Print Test Page". If the printer successfully outputs the test page, the serial port has been configured correctly and is working properly.

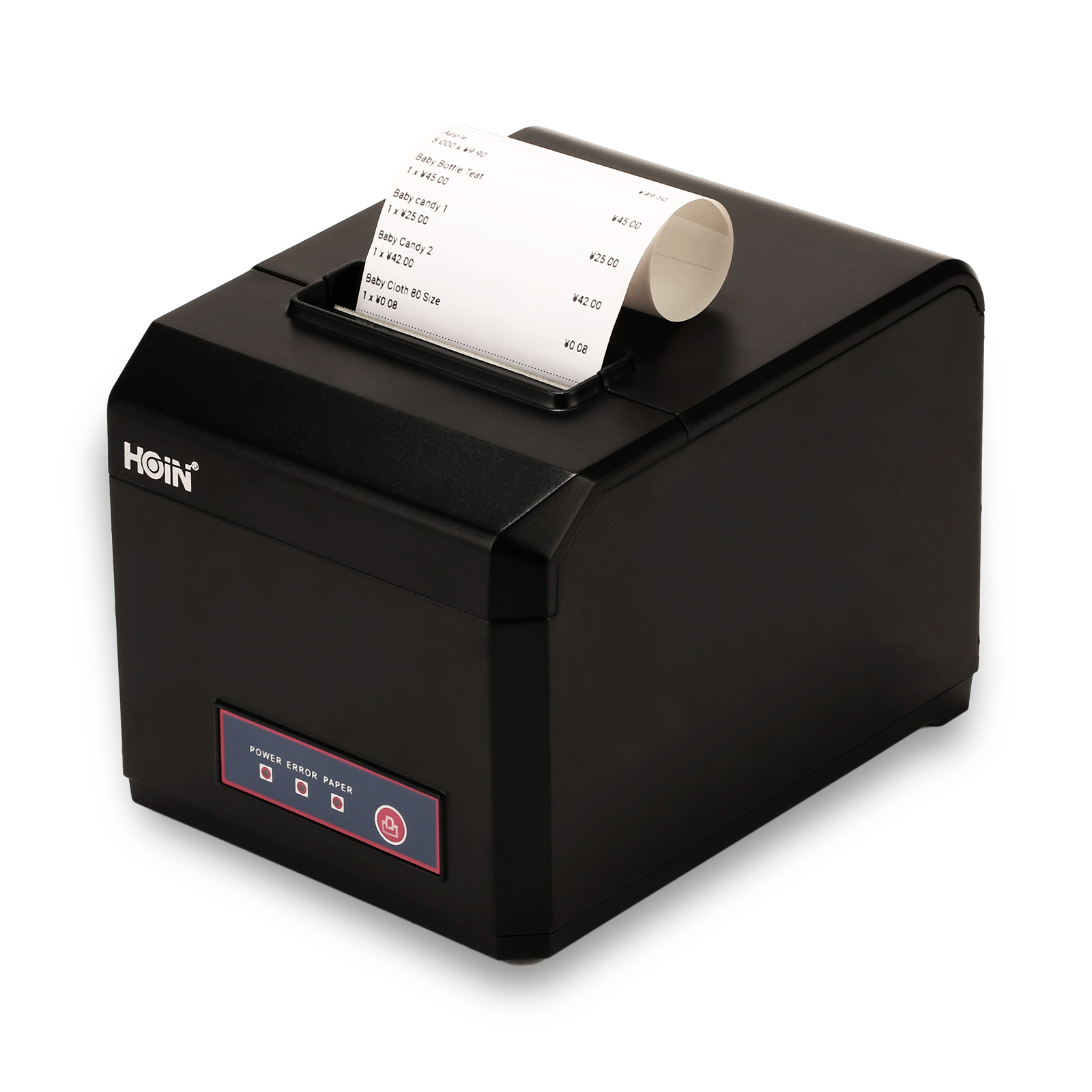

Setting up your Hoin thermal printer correctly is essential for seamless business operations. For our 80mm series, there are two primary ways to drive the printer: Direct Port Driving and Windows Driver Installation.

1. Direct Port Driving (No Driver Required)

This method is often preferred by developers and system integrators who want more direct control over the printing process.

• How it works: You send characters (commands and data) directly to the printer port. The printer uses its internal hardware character library to convert and print the data.
• Advantages: It provides faster control and more flexibility for customized software environments.
• Requirements: You must use the ESC/POS command set to control the printer. The Hoin thermal printer 58mm and 80mm series are fully integrated with standard ESC/POS commands.

2. Windows Driver Installation (Graphic Mode)

This is the standard method for most users. In this mode, the Windows driver converts characters into a graphic dot matrix for printing.

Step-by-Step Installation Guide:

•  Double-click the driver file:

A language selection window will pop up—select "English" and click "OK".

• click "Next" to proceed.

• Select "I accept this Agreement" to agree to the terms, then click "Next".

• Click the "Install" button to start the driver installation.

• On the "Printer Settings" page, select the appropriate port. For USB connections, you can use the default port (no manual adjustment required for most cases).

Parameters: Baud rate = 19200, Flow control = Hardware, Data bits = 8, Even-odd check = None.

Click "Next" after confirming the settings

• Once the setup is finished, click "Finish" to close the wizard. The driver is now successfully installed.

To achieve high-quality and durable prints, it is essential to match the right ribbon with the correct label material. This guide explains the selection process for your Hoin thermal printer to ensure optimal performance.

I. Choosing the Right Ribbon

Ribbons are mainly made of wax, resin, or a mixture of both. Different materials are suitable for distinct scenarios:

1. Wax-Based Ribbons

• Features: Low cost and high printing sensitivity, but poor wear resistance and chemical resistance.
• Application: Compatible with plain label paper (e.g., coated paper). Ideal for short-term use such as indoor labels, logistics waybills, and retail tags.

2. Resin-Based Ribbons

• Features: High temperature resistance, scratch resistance, strong chemical resistance (e.g., to alcohol, gasoline), and excellent water resistance, but higher cost.
• Application: Suitable for synthetic materials (e.g., PET, PVC, polyester fabric). Used in long-term durability requirements like outdoor labels, industrial environments, medical devices, and automotive parts.

3. Wax-Resin (Mixed) Ribbons

• Features: Combine the sensitivity of wax-based ribbons and the durability of resin-based ribbons, offering high cost-effectiveness.
• Application: Compatible with coated paper, matte paper, etc. Perfect for scenarios needing moderate wear resistance without extreme conditions, such as warehouse management and food packaging labels.

4. Other Considerations

• Printhead Compatibility: Ensure the ribbon is compatible with the printer’s printhead type (e.g., flathead or edgehead).
• Size Matching: The ribbon width should be greater than or equal to the label width, and the length should fit the printer’s ribbon spool.

II. Choosing the Right Paper (Label Material)

Label papers are divided into thermal paper (no ribbon required) and regular label paper (needing a ribbon). Below focuses on the latter:

1. Coated Paper

• Features: Smooth surface, good ink absorption, and low cost.
• Application: Paired with wax-based or mixed ribbons for product labels, logistics documents, and retail price tags.

2. Synthetic Materials

• PET/PVC/PE: Water-resistant, high temperature-resistant, and tear-resistant, suitable for outdoor or harsh environments.
• Application: Used with resin-based ribbons for electronic components, chemical products, and outdoor asset labels.

3. Specialty Paper

• Silver Destructive Paper: Matte surface and scratch-resistant, often used for high-end product labels.
• Fragile Paper: Breaks easily when torn, ideal for anti-counterfeiting purposes.
• Fluorescent Paper: High visibility, suitable for special classification or warning labels.

4. Other Factors

• Adhesive Type: Choose permanent, removable, or freezer-grade adhesive based on the bonding surface (e.g., curved or rough surfaces).
• Thickness: Common thickness ranges from 60-100μm; ensure it can be fed smoothly by the printer.

III. Recommended Ribbon-Paper Combinations

IV. Important Notes

• Test Before Bulk Purchase: Conduct a small-batch test to check print adhesion, clarity, and durability before mass buying.
• Environmental Adaptability: For high-temperature environments (e.g., factory workshops), choose resin-based ribbons + synthetic paper; use special ribbons for low-temperature conditions.
• Printer Settings: Correctly select the ribbon and paper type in the printer driver, and adjust print density and speed.
• Storage Conditions: Store ribbons and label paper in a cool, dry place away from light and moisture.

V. Quick Selection Process

• Determine the usage scenario (e.g., outdoor, laboratory, warehouse).
• Select the label material based on durability and bonding surface requirements.
• Match the appropriate ribbon type (balancing cost and needs).
• Verify compatibility (ribbon/label size and printer model).

Following these steps ensures clear, durable, and cost-effective print results. For special needs (e.g., anti-counterfeiting, high-temperature environments), consult ribbon or label suppliers for professional solutions.

About HOIN HOP-HQ490

The HOIN HOP-HQ490 supports ribbons with a width of 20-110mm and offers optional print resolutions of 203dpi and 300dpi. This thermal transfer printer is compatible with various ribbons (wax-based, mixed, resin-based) and widely used in warehouse management, retail pricing, logistics waybills, outdoor signs, industrial labels, chemical containers, clothing care labels, outdoor equipment labels, receipts, courier slips, and temporary labels. Please select the corresponding paper based on the ribbon type.

In the modern commercial landscape, professional printing equipment is the silent engine of efficiency. your choice of printer directly impacts your operational costs and customer experience, including clear rack labels in a warehouse, high-speed shipping waybills and instant checkout receipts.

Here is a tailored guide for business operators to avoid pitfalls and an RFQ invitation, clear up the confusion and provide you with a clear, practical logic for selecting printers. We will first overview mainstream printer technologies, then delve into the core thermal printing branch in commercial scenarios, and ultimately help you understand why choosing a focused supplier like us, based on professional needs, is the crucial first step towards success.

I. The Printer Family Tree: Identifying Your Needs

Before diving into technical specs, it is essential to understand our “printer family" ----- the types of printer. This helps you comprehend why office printers cannot solve your industrial labeling problems.Using the wrong tool for the job leads to wasted investment and frequent downtime.

Tip: While inkjet and laser printers are designed for general documents, a professional thermal receipt printer is a specialized tool for the "physical internet"—tracking goods, managing data, and delivering transaction proof.

II.  Deep Dive: Direct Thermal vs. Thermal Transfer

Once you identify that a thermal printer is required, the most critical decision is choosing between Thermal Transfer and Direct Thermal. This choice depends entirely on how long your labels or receipts need to "survive."

1. Comparison of Two Core Thermal Technologies: Durability vs. Economy

Tip：Direct thermal printers represent a specialized category within direct thermal technology, specifically designed for printing receipts and tickets with an emphasis on speed and reliability.

2. How to Make Decision

Ask yourself these three questions to match right thermal printer:

• How long must the labels/receipts last?

• Short-term (Shipping labels, food delivery) → Choose thermal transfer printer
• Long-term (Fixed assets, chemical labels, clothing tags) → Choose direct thermal printer

• What environment will the labels/receipts be in?

• Indoor/Standard → Either thermal transfer or  direct thermal (decide based on preservation needs).
• Frequent friction, oil/chemical contact, or outdoor exposure → Must Thermal Transfer.

• What is your core priority?

• Ultimate durability and professionalism → Choose thermal transfer printer
• Speed, simplicity, and cost control → Choose thermal receipt printer (direct thermal)

III. Why Hoin is Your Strategic Partner

----Focus is the Foundation of Excellence

As a dedicated manufacturer of both Direct Thermal and Thermal Transfer technologies, we don't just sell machines; we provide solutions. Choosing a Hoin thermal printer means choosing a partner who understands the nuances of your industry.

By choosing us as your strategic partner, you gain four key advantages:

1. Precision-Engineered Solutions

We focus strictly on the commercial thermal equipment you actually need. Whether you require an industrial-grade thermal transfer printer for harsh environments, a high-speed waybill printer for e-commerce, or a reliable thermal receipt printer for smart POS systems, we provide the perfect model for your scale.

2. Deep Industry Insight & Customization

We understand the unique demands of different sectors, from cold-chain logistics to electronics manufacturing and retail chains. We offer deep customization options—including print width, resolution (203/300 DPI), printing speed, and communication protocols. We can even add specific hardware features like auto-cutters or label peelers to ensure the device fits perfectly into your workflow.

3. Factory-Direct Reliability & Supply Chain Security

Buying directly from our factory means you benefit from stricter quality control, more competitive pricing, and stable delivery timelines. Beyond the hardware, we provide high-quality labels and ribbon consumables as a one-stop solution, ensuring your operations never stop.

4. Professional Guidance and Support

Our team provides expert advice starting from the technical selection phase. We help you avoid "trial and error" costs by ensuring you pick the right technology from day one. Post-purchase, you are backed by our responsive technical support and maintenance services.

Take Action: Get Your Custom Printing Solution Today

Choosing the right printer is a key investment in your operational efficiency and data reliability. Partnering with a focused and reliable supplier like Hoin is the best way to guarantee the success of that investment.

Let our expertise empower your business. We look forward to working with you to bring more clarity and efficiency to your operations through reliable Hoin thermal printer technology.
