HOIN - China Original USB+Serial thermal receipt printer with BIS certification 58mm Desktop Thermal Printer
58MM Big Gear Thermal Receipt Printer
●Large motor, gear movement
●130 mm / s ultra high print speed
●The exquisite fashion design
●Support 1D,2D bar code printing

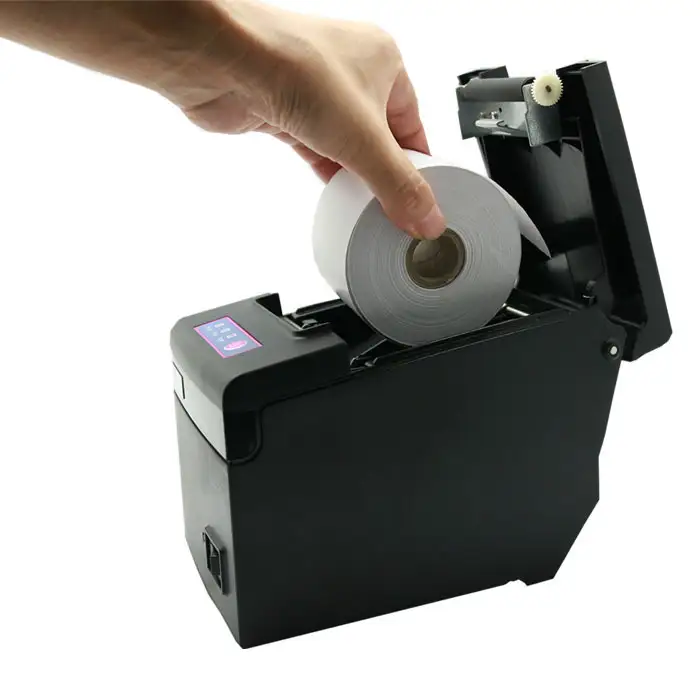

●Large paper warehouse design, the perfect support 83MM large diameter rolls
●support GB18030 big font
●support multi language print
●support small font print
China Original USB+ Serial/RS232 58mm POS Wifi thermal receipt printer with BIS certification is a hot seller well recognized by users around the world. China Original USB+ Serial/RS232 58mm POS Wifi thermal receipt printer with BIS certification with reasonable price, excellent performance and excellent quality, it has won wide recognition from customers. Having collected customers' needs and analyzed trends, we have spent a lot in developing new and versatile features of Printers in innovative ways.And the Thermal Label printer,Kiosk Thermal printer,Portable Thermal Receipt Printer,code scanning gun is designed to be unique and attractive enough to catch people's attention.
| Type: | Thermal POS receipt Printer | Style: | Black and white |
| Use: | Thermal POS receipt Printer | Interface Type: | Serial+USB |
| Max Paper Size: | 58mm | Black Print Speed: | 90mm/sec |
| Max. Resolution: | 384 Dots/line | Brand Name: | Hoin |
| Model Number: | HOP-E58 | Place of Origin: | Guangdong, China |
| Printer name: | WiFi/COM/Net 58mm Thermal POS Receipt Printer | Effective Printing Width: | 58mm |
| Resolution: | 384dots/Line(8dots/mm,203dpi) | Interface: | USB+serial |
| paper width: | 57.5±0.5mm | paper thickness: | ≤0.12mm |
| paper Diameter: | ≤80mm | Print Head Life: | 100KM(print density≤12.5) |
| Dimension: | 180*115*127mm | Weight: | 750g |
China Original USB+ Serial/RS232 58mm POS thermal receipt printer with BIS certification![HOIN - China Original USB+Serial thermal receipt printer with BIS certification 58mm Desktop Thermal Printer 8]()
g
Items
Parameters
Print parameters
Printing Method
Thermal Line
Printing Method
48MM
Resolution
384dots/Line(8dots/mm,203dpi)
Printing Speed
130mm/Second
Interface Type
USB,COM,Internet(100M),WIFI,Bluetooth
Line Spacing
3.75 mm(Can adjust line spacing by command)
Line
Font A-32Lines/Font B-42 Lines/Simple/Traditional Chinese-16 Lines
Character
Standard GB18030 simplified / traditional Chinese Fonts
Character Size
ANKcharacter,Font A:1.5×3.0mm(12×24Dots)
Font B:1.1×2.1mm(9×17Dots) Simplified/Traditional Chinese:3.0×3.0mm(24×24 Dots)
Bar code Character
Extended character set
PC437/Katakana/PC850/PC860/PC863/PC865/WestEurope/Greek/Hebrew/EastEurope/Iran/WPC1252/PC866/PC852/PC858/IranII/Latvian/Arabic/PT151,1251/PC737/WPC/1257/ThaiVietnam/PC864/PC1001/(Latvian)/(PC1001)/(PT151,1251)/(WPC1257)/(PC864)/(Vietnam)/(Thai)
Bar code
1D bar code:UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)CODE39/ITF/
CODABAR/CODE93/CODE128
2D bar code:QRCODE
Graphics printing
Graphics printing
Supports bitmap download and print
Paper
Type
Thermal Paper
Width
57.5±0.5mm
Diameter
≤83mm
Feed Method
Easy feed(Clameshell feed)
Print commands
Commands
ESC/POS
Power
Power Adaptor
Input:AC 110V/220V,50~60Hz
Output:DC 12V/2A
Casher Drawer output
DC 12V/1A
Buffer
Input Buffer
NV Flash
physical characteristics
Weight
0.75kgs
Dimension
180*115*127mm
Environment
Working
Temp:5 ~ 45℃, Humidity:10 ~ 80%
Storage
Temp:-10 ~ 50℃ ,Humidity:10 ~ 90%(No dew)
Reliability parameter
Print Head Life
100KM(print density≤12.5)
Cutter Life
1000,000times
We are a professional themal printer manufacture in shenzhen which can provide one package services from designing,R&D,production,logo printing,packaging to shipping.
Most of our thermal receipt printers are CE, CFF, RoHS,BIS,CB certified. Our products are Hot sale all over the world. Thermal Printers are widely used in the shopping mall,warehousing,retail, telecommunications, medical, tax, police, government, logistics and other industries.
HOIN 7 Biggest Features to sell printers all over the world:
1.Hoin is the most professional Thermal Printer Manufacturer in Shenzhen China
2.All engineers with more than 9 years experiences in thermal printers
3.OEM,ODM available
4.Free software,SDK
5.All printers with 1 year warranty,all life free maintenance
6.Most printers with CE,FCC,ROHS,CCC,CB,BIS certification.
7.High quality,fast delivery,sample 3-5 days,bulk order 15days.
More 58MM and 80 MM printers for your choosing !!!!!!
Pls get More details from our home page:/productlist.html?spm=a2700.icbuShop.88.28.3bae7ca7i8JSuH or our website: www.hoinprinter.com/en
FAQ
1,Are you a manufacture?
We are the professional thermal printer manufacturer with high quality and best service.
2,Can you customise or design the product?
OEM and ODM products are available for customers, We have the very experienced R&D team and excellent management.
3,What kind of language can you support, just English?
Besides,what operation system can you support?
Our printer not only supports English language, but also Janpanese,Russian, Spanish,
Portuguese and Arabic etc 48 different languages available, and it support
Android,IOS,Linux,Win2000,Win2003,WinXP,Win7,Win8,Win8.1 ystems.
4. What about your MOQ?
Even 1 piece is acceptable.
5.What's your deliver time?
For sample,3 days,bulk order usually 7-15days,depends on quantity.
6,Can you provide drive and latest software?
we are supplying all windows drive and you can download the latest software.
How to Get Free SDK, Drive, or free testing APP ?
1)All the New Android/IOS SDK, Windows Driver is available in our website, pls download from Hoin website link: https://www.hoinprinter.com/download/39.html
2)For IOS Testing App, pls search "Hoin Printer" in your Apple Store, you will See the following.
3)For Android Testing App, pls get by clicking the link: http://www.hoinprinter.com/upload/HoinPrinter.apk or Scanning the barcode:
