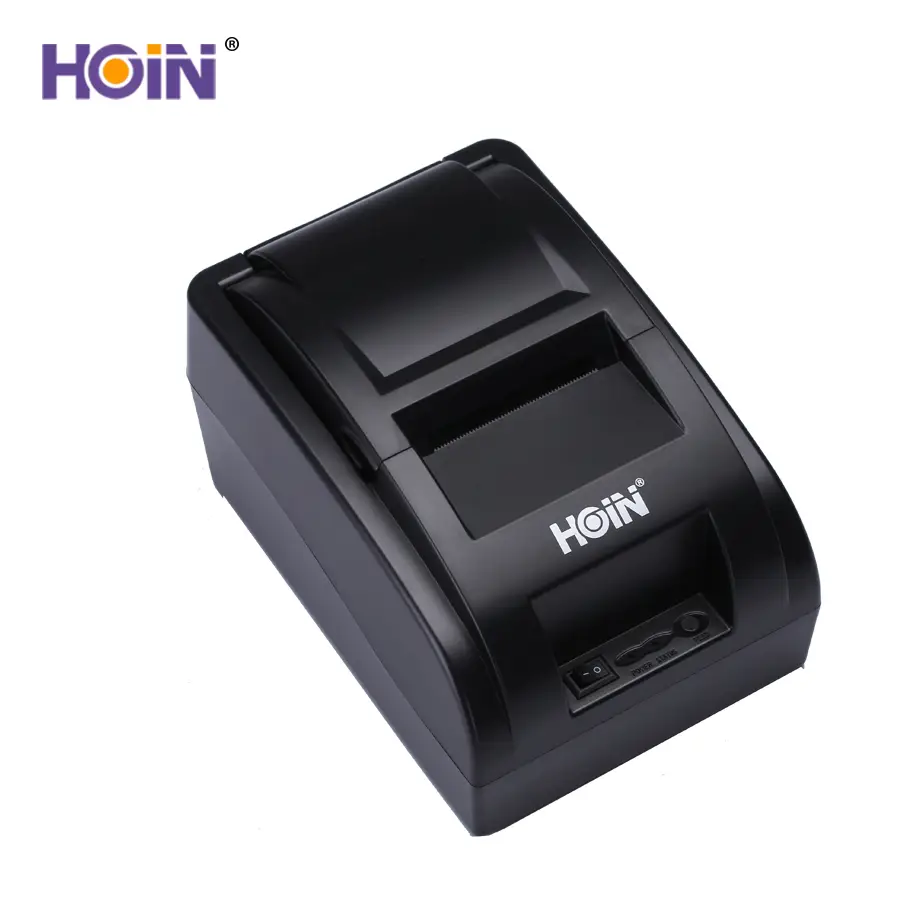

HOIN - 58mm Hoin Printer ODM/OEM Available with CB CE FCC ROHS BIS Certification 58mm Desktop Thermal Printer
The application of the technology to the product manufacturing process contributes to the stable quality guarantee of Black and White 58mm Hoin Printer ODM/OEM Available with CB CE FCC ROHS BIS Certification ESC/POS Thermal Receipt PrinteR.In order to add values of the product, our R&D engineers constantly upgrade and improve the product so as to expand its application ranges. At present, it can be widely seen in the field(s) of Printers.
Using highly advanced technologies and newest methods,Shenzhen Hoin Electronic Technology Co has developed Black and White 58mm Hoin Printer ODM/OEM Available with CB CE FCC ROHS BIS Certification ESC/POS Thermal Receipt PrinteR. It is on sale starting now and we welcome your inquiry. To meet various needs of customers, we supports customized Black and White 58mm Hoin Printer ODM/OEM Available with CB CE FCC ROHS BIS Certification ESC/POS Thermal Receipt PrinteR. Shenzhen Hoin Electronic Technology Co adhere to the corporate philosophy of 'people orientation' and always advocate honesty, innovation, and fairness. We hope to occupy an important position in the industry and become one of the most leading brands in the future.
| Private Mold: | Yes | Products Status: | Stock |
| Type: | Thermal POS receipt Printer | Style: | Black and white |
| Use: | Thermal POS receipt Printer | Interface Type: | Bluetooth+USB |
| Max Paper Size: | 58mm | Black Print Speed: | 90mm/s |
| Max. Resolution: | 384 Dots/line | Brand Name: | Hoin |
| Model Number: | HOP-H58 | Place of Origin: | Guangdong, China |
| Warranty(Year): | 1-Year | After-sales Service: | Others, Call Center and on-line Technical Support, Onsite Training and Inspection |
| Printer name: | 58mm Thermal POS Receipt Printer | Effective Printing Width: | 58mm |
| Resolution: | 384dots/Line(8dots/mm,203dpi) | Interface: | USB+BT |
| paper width: | 57.5±0.5mm | paper thickness: | ≤0.12mm |
| paper Diameter: | ≤60mm | Print Head Life: | 50KM(print density≤12.5) |
| Weight: | 590g | Command: | ESC/POS |
| Certification: | FCC, ce, RoHS, BIS（ISI）, CB |
Thermal Receipt Printer 58mm Hoin printer ODM/OEM available with CB,CE,FCC,ROHS,BIS certification
Items | Parameters | |
Print parameters | Printing Method | Thermal Line |
Printing Method | 48MM | |
Resolution | 384dots/Line(8dots/mm,203dpi) | |
Printing Speed | 90 mm/Second | |
Interface Type | USB,COM,Internet(100M),WIFI,Bluetooth(Optional) | |
Line Spacing | 3.75 mm(Can adjust line spacing by command) | |
Line | Font A-32Lines/Font B-42 Lines/Simple/Traditional Chinese-16 Lines | |
Character | Standard GB18030 simplified / traditional Chinese Fonts | |
Character Size | ANKcharacter,Font A:1.5×3.0mm(12×24Dots) | |
Bar code Character | Extended character set | PC437/Katakana/PC850/PC860/PC863/PC865/WestEurope/Greek/Hebrew/EastEurope/Iran/WPC1252/PC866/PC852/PC858/IranII/Latvian/Arabic/PT151,1251/PC737/WPC/1257/ThaiVietnam/PC864/PC1001/(Latvian)/(PC1001)/(PT151,1251)/(WPC1257)/(PC864)/(Vietnam)/(Thai) |
Bar code | 1D bar code:UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)CODE39/ITF/ 2D bar code:QRCODE | |
Graphics printing | Graphics printing | Supports bitmap download and print
|
Paper | Type | Thermal Paper |
Width | 57.5±0.5mm | |
Diameter | ≤60mm | |
Feed Method | Easy feed(Clameshell feed) | |
Print commands | Commands | ESC/POS |
Power | Power Adaptor | Input:AC 110V/220V,50~60Hz Output:DC 12V/2A |
Casher Drawer output | DC 12V/1A | |
Buffer | Input Buffer | 4K |
NV Flash | 40K | |
physical characteristics | Weight | 0.75kgs |
Dimension | 180*115*127mm | |
Environment | Working | Temp:5 ~ 45℃, Humidity:10 ~ 80% |
| Storage | Temp:-10 ~ 50℃ ,Humidity:10 ~ 90%(No dew) |
Reliability parameter | Print Head Life | 100KM(print density≤12.5) |
| Cutter Life | 1000,000times |
Shenzhen Hoin Electronic Technology Co.,Ltd is a high tech enterprise specialized in thermal Mini receipt printer,thermal barcode label printer,panel printer and kiosk printer. We can offer one-stop services from R&D, printer main board design,plastic molding, materials assembling, production, packing, testing,sales,delivery to after-sales services.
Most of our thermal receipt printers are CE, CFF, RoHS,BIS,CB,CCC certified. Our products are Hot sale all over the world. Thermal Printers have been widely used in the shopping mall,warehousing,retail, telecommunications, medical, tax, police, government, logistics and other industries.
HOIN 7 Biggest Features to sell printers all over the world:
1.Hoin is the most professional Thermal Printer Manufacturer in Shenzhen China
2.All engineers with more than 10 years experiences in thermal printers
3.OEM,ODM available
4.Free software,SDK available
5.All printers with 1 year warranty,all life free maintenance
6.Most printers with CE,FCC,ROHS,CCC,CB,BIS certification.
7.High quality,fast delivery,sample 3-5 days,bulk order 15days.
How to Get Free SDK, Drive, or free testing APP ?
1)All the Android/IOS SDK, Windows Driver are available in our website, pls download from Hoin website link: www.hoinprinter.com/en/download.
2)For IOS Testing App, pls search "Hoin Printer" in your Apple Store
3)For Android Testing App, pls get by clicking the link or Scanning the barcode: http://www.hoinprinter.com/upload/HoinPrinter.apk:
1, Are you a manufacture?And What is the MOQ?
We are the professional thermal printer manufacturer with full production line. Sample order 1-2pcs printers are also welcomed.
2, Can you customise or design the product? How about add my Own Logo?
OEM and ODM are available, We are very experienced in R&D and POS Printer Solutions. MOQ:100pcs, we can add your logo for free.
3, What kind of language can you support? Besides,what operation system can you support?
Our printer English language, Spanish,Korea,France,Portuguese ,Arabic,Russian,etc 70 languages. We support Android,IOS,Linux, Mac book, Win2000,Win2003,WinXP,Win7,Win8, Win8.1,Win10 etc.
4, What's your deliver time?
For sample,3 days; bulk order usually 7-15days,depends on quantity.
6, Can you provide drive and latest software?
Yes. All the Android/IOS SDK, Windows driver, Mac driver, and Android/IOS testing app are available.
