Set up years ago, HOIN is a professional manufacturer and also a supplier with strong capabilities in production, design, and R&D. 58mm bluetooth thermal printer HOIN have a group of service professionals who are responsible for answering questions raised by customers through the Internet or phone, tracking the logistics status, and helping customers solve any problem. Whether you'd like to get more info on what, why and how we do, try our new product - Top 58mm bluetooth thermal printer Manufacturers, or would like to partner up, we'd love to hear from you.When it comes to trendy design, HOIN is always leading the way. With the help of CAD software, their unique structure design is both modern and timeless. You'll never have to worry about their products going out of style. (Note: HOIN refers to a brand name that should be inserted into the paragraph.)

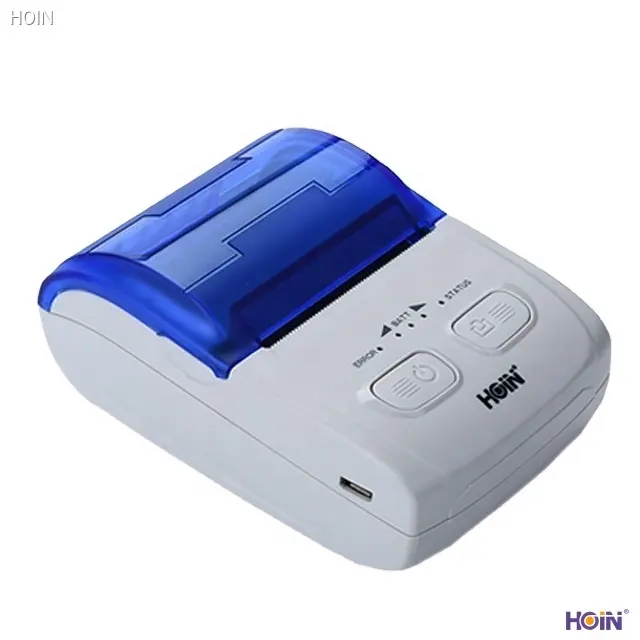

Shenzhen Hoin Electronic Technology Co has gained a remarkable position in the concerned industry through years of efforts, and there is a great possibility that the company will achieve a greater advancement in the future. The measured data indicates that meets the market requirements. Used in Printers,Hoin Blue Tooth Portable 58mm Handheld Thermal Printer Mini Small Can be Charged by USB HOP H200has a promising application prospect.
Private Mold: | Yes | Products Status: | Stock |
Type: | thermal receipt printer | Style: | Black and white |
Use: | Receipt Printer | Interface Type: | USB+BT |
Max Paper Size: | 58mm | Black Print Speed: | 70mm/s |
Color Print Speed: | no Support | Max. Resolution: | 384 Dots/line |
Brand Name: | Hoin | Model Number: | HOP-HL58/H200 |
Place of Origin: | Guangdong, China | Warranty(Year): | 1-Year |
After-sales Service: | Free spare parts | Software development kit (SDK): | Yes |
Printer name: | 58MM Portable Thermal Printer | Effective Printing Width: | 48mm |
Resolution: | 384 dots/line(8dots/mm,203dpi) | Interface: | USB+BT |
paper width: | 57.5±0.5mm | paper thickness: | ≤0.12mm |
paper Diameter: | ≤40mm | Weight: | 200g |
Dimension: | 114*80*50MM | Battery: | 1500mAh/7.4V lithium polymer battery |
Certification: | FCC, ce, RoHS, BIS(ISI) |
Item | Parameter | |
Print parameter | Printing Method | Thermal Line |
Effective Printing Width | 48mm | |
Resolution | 384 dots/line(8dots/mm,203dpi) | |
Printing Speed | 70 mm/S(MAX) | |
Interface | USB/USB+BT/USB+WiFi/USB+BT+WiFi | |
Line spacing | 3.75mm(Can adjust line spacing by command) | |
Line No. | Font A:32 character /Line Font B:42 character/Line | |
Character Size | ANK character,Font A:1.5×3.0mm(12×24 dots) | |
Bar code character | Extended character set | PC437/Katakana/PC850/PC860/PC863/PC865/WestEurope/Greek/Hebrew/EastEurope/Iran/ WPC1252/PC866/PC852/PC858/IranII/Latvian/Arabic/PT151,1251/PC737/WPC/1257/ ThaiVietnam/PC864/PC1001/(Latvian)/(PC1001)/(PT151,1251)/(WPC1257)/(PC864)/(Vietnam)/ (Thai) |
Bar code | 1D.Bar code:UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)CODE39/ITF/ 2D.Bar code:QRCODE | |
Graphics printing | Graphics printing | Supports bitmap download and print (support each bitmap size Max.8K, download up to 5pcs) |
Power saving Mode | Smart power saving | Support |
Variable speed printing | Support | |
Consumption | Support | |
Dormancy | Support | |
Detection | Sensor | Lack of paper detection |
Indicator | Power Display | Support |
Charge Indicator | Support | |
Lack of paper | Support | |
Paper | Type | Thermal |
Width | 57.5±0.5mm | |
thickness | ≤0.12mm | |
Diameter | ≤40mm | |
Feed | Easy(Clamshell feed) | |
Print commands | Commands | ESC/POS |
Power | Type | Rechargeable Lithium polymer battery |
Capacity | 1500mAh/7.4V, | |
Charger | 5.0V/1A | |
Buffer | Input | 4KB |
NV Flash | 40KB | |
Physical features | Weight | 200G |
Dimension | 112*79*48(MM) | |
Environment | Operating | Temp:5 ~ 45℃, Humidity:10 ~ 80% |
Storage | Temp:-10 ~ 50℃ ,Humidity:10 ~ 90%(No Dew) | |
Reliability | Print head life | 50KM(Printing Density≤12.5) |
Software | Driver | Android,IOS,Linux,Windows |
1. What about your MOQ?
No,MOQ,we suport sample order.
2.What about delivery time?
For sample,3 days,bulk order usually 7-15days,depends on quantity.
3.How about Payment term?
For sample,paypal,Western Union,bulk order,L/C or T/T
4. Can you send samples for confirmation? Are they free?
Yes, of course, but no free,sorry
5.Can customize, modify and develop products according to our requirements?
Yes, we provide OEM and ODM service.Because we have our R&D department..
6:How can your printer works with our system?
All printers will come with a CD driver, install it, then you can print.
7. How about the warranty of your products?
7 days replace,1 year free maintenance .
8.How to Get Free SDK, Drive, or free testing APP ?
All the New Android/IOS SDK, Windows Driver is available in our website, pls download from Hoin website link: https://www.hoinprinter.com/download/39.html
