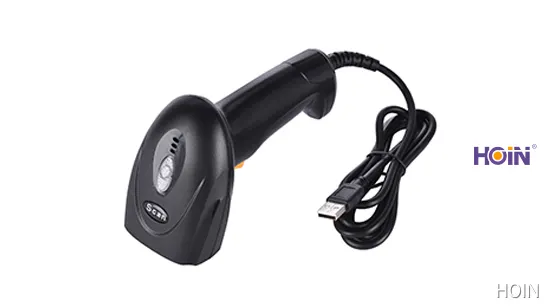

Custom usb laser barcode scanner Supply Manufacturer | HOIN1
Always striving toward excellence, HOIN has developed to be a market-driven and customer-oriented enterprise. We focus on strengthening the capabilities of scientific research and completing service businesses. We have set up a customer service department to better provide customers with prompt services including order tracking notice. usb laser barcode scanner We have been investing a lot in the product R&D, which turns out to be effective that we have developed usb laser barcode scanner. Relying on our innovative and hard-working staff, we guarantee that we offer customers the best products, the most favorable prices, and the most comprehensive services as well. Welcome to contact us if you have any questions.It is a good means of marketing communication. This product can help sell goods and distinguish them from similar products.
Data Parameters:
HOP-E760 scanner support both 1D+2D barcode; HOP-E660 support only 1D barcode. The rest details all is same.
| HOP-E760 Wired 2D Barcode Reader | |||
Performance Parameter | |||
| Depth Filed |  | ||
| Performance Parameter | |||
| Optical Source | 620nm Visible red light diode | ||
| Imaging Sensor | COMS | ||
| Resolution Ratio | 30 million pixels | ||
| Image Resolution | ≥ 5mil | ||
| Minimum Contrast | ≥ 30% | ||
| Barcode Types | 1D CODE128 EAN-8 EAN-13 UPC-E UPC-A Interleaved 2 of 5 ITF14 MATRIX 25 Code39 Codabar Code93 UCC/EAN-128 Code11 ISBN INDUSTRIAL25 STANDARD25 Plessey MSI_Plessey 2D PDF417 QR Aztec DataMatrix Maxicode MicroPDF417 SPEC_OCR_B | ||
| Barcode Sensitivity | Tilt | ±55° | |
| Rotate | ±25° | ||
| Deflection | ±75° | ||
| Data Interface Port | USB | ||
| Mechanical and Electric Performance | |||
| SIZE(Length x Width x Height) | 156×64×91 mm | ||
| Net Weight | 110g | ||
| Indicator | Siren and LED light | ||
| Max.Power | 1405mw | ||
| Working Voltage | 5V | ||
| Current | Max.Current | 281mA | |
| Working Current | 141mA~281mA | ||
| Stand-by Current | 141mA | ||
| Accessory | |||
| Data Cable | USB(1.5M) | ||
| Operation Manual | One | ||
| Environmental Parameter | |||
| Storage Temperature | -40°C ~ 60°C | ||
| Working Temperature | 0°C ~ 50°C | ||
| Relative Humidity | 0 ~ 95% | ||
| Height range | 2M | ||
| IP Rating | IP52 | ||
