Hoin HOP-E802 80mm professional thermal receipt printer with good price - HOIN

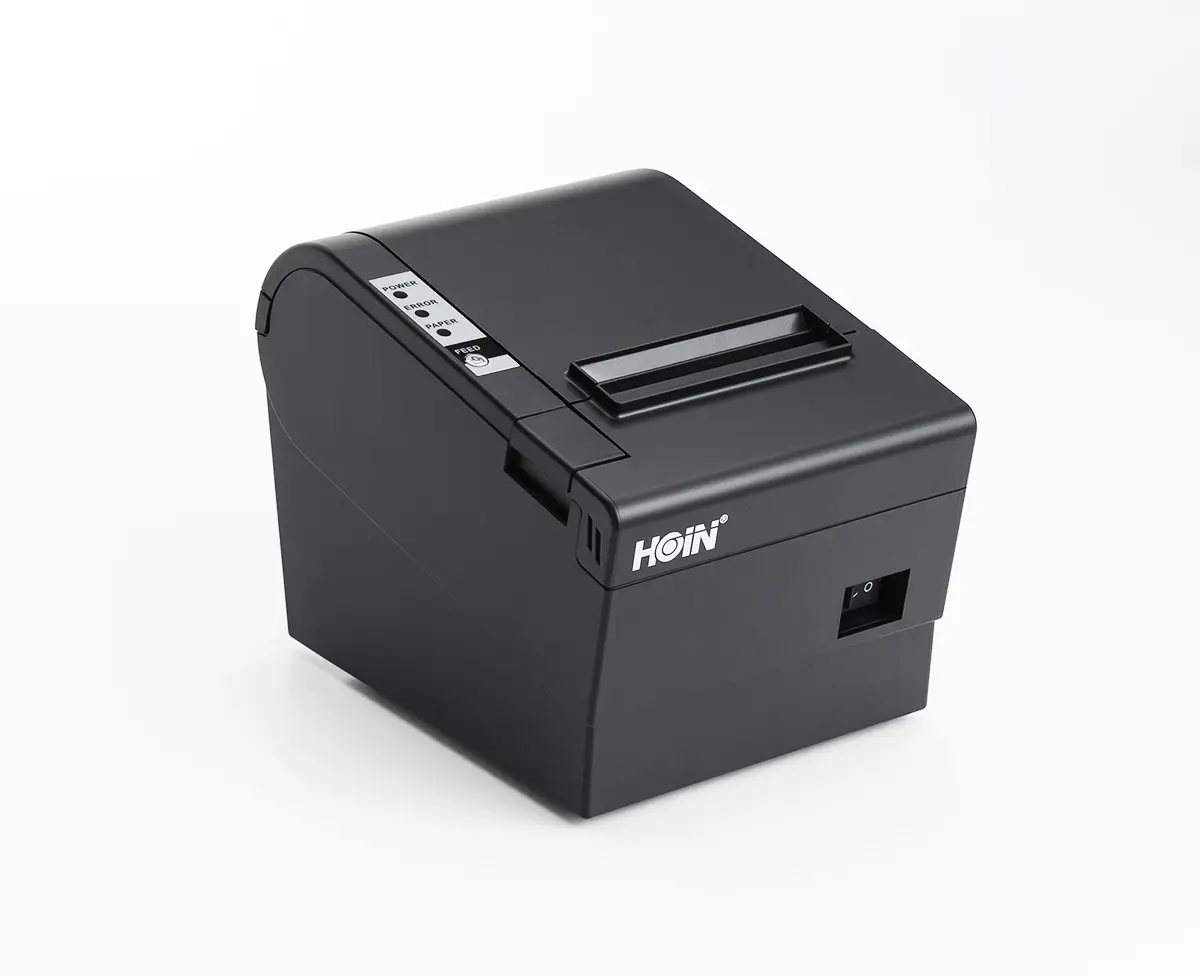

Hoin HOP-E802 80mm professional thermal receipt printer
| Private Mold: | Yes | Products Status: | Stock |
| Type: | Thermal Receipt Printer | Style: | Black and white |
| Use: | Thermal POS Receipt Printer | Interface Type: | USB+LAN+COM or USB+B T |
| Max Paper Size: | 80mm | Black Print Speed: | 260mm/sec |
| Color Print Speed: | not support | Max. Resolution: | 576 Dots/line |
| Brand Name: | Hoin | Model Number: | HOP-E802 |
| Place of Origin: | Guangdong, China | Warranty(Year): | 1-Year |
| After-sales Service: | Others, Call Center and on-line Technical Support, Onsite Training and Inspection | Software development kit (SDK): | Yes |
| Printing Method: | 80mm Thermal Line | Resolution: | 576 Dots/Line or 512 Dots/Line(8dots/mm,203dpi) |
| Interface: | USB+LAN+COM/USB+B T | barcode: | 1D,2D |
| paper width: | 79.5±0.5mm | paper thickness: | ≤0.12mm |
| paper Diameter: | ≤80mm | Instructions: | ESC/POS |
| Print Head Life: | 100KM(print density≤12.5) | Certification: | FCC/CE/ROHS/BIS/CB |
Hoin 3 inch 80mm Hot sales Direct Thermal printer HOP-E802 with free SDK/Driver/Testing App
Items | Parameters | |
Print parameters | Printing Method | Thermal Line |
Printing width | 72mm | |
Resolution | 576 Dots/Line Or 512 Dots/Line(8dots/mm,203dpi) | |
Interface | USB+LAN+COM/USB+B T | |
Line Space | 3.75mm(Can adjust line space by command) | |
Line No. | Font A-32 Lines/Font B-42 Lines/Simple,traditional Chinese-16 Lines | |
Character | standard GB18030 simplified / traditional Chinese | |
Character Size | ANK character,Font A:1.5×3.0mm(12×24 dots) | |
Bar code Character | Extended character set | PC437/Katakana/PC850/PC860/PC863/PC865/WestEurope/Greek/Hebrew/EastEurope/Iran/WPC1252/PC866/PC852/PC858/IranII/Latvian/Arabic/PT151,1251/PC737/WPC/1257/ThaiVietnam/PC864/PC1001/(Latvian)/(PC1001)/(PT151,1251)/(WPC1257)/(PC864)/(Vietnam)/(Thai) |
Bar code | 1D Bar code:UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)CODE39/ITF/
| |
Graphics printing | Graphics printing | Supports bitmap download and print ( each bitmap size Max.20K)
|
Cutter | Cutter Function | Full cut/Half cut |
Paper | Type | Thermal |
Width | 79.5±0.5mm | |
Diameter | ≤80mm | |
Feed method | Easy feed(Clameshell feed) | |
Special function | Oil Shield | Support |
Bills not taken detect and remind | Support | |
Tibet line slot | Support | |
Bulit in loudspeaker | Support | |
Print Commands | Commands | ESC/POS |
Power | Power Adaptor
| Input:AC 110V/220V,50~60Hz |
Output:DC 24V/2.5A | ||
Cash Drawer output | DC 24V/1A | |
Buffer | Input Buffer | 2048K bytes |
NV Flash | 256K bytes | |
physical characteristics | Weight |
1.15KG |
Dimension |
195*140*148(MM) | |
Environment | Working | Temp:5 ~ 45℃, Humidity:10 ~ 80% |
Storage | Temp:-10 ~ 50℃ ,Humidity:10 ~ 90%(No dew) | |
Reliability parameter | Print Head Life | 100KM(print density≤12.5) |
Cutter Life | 1000,000times | |
Software | Driver | Android,IOS,Linux,Win2000,Win2003,WinXP,Win7,Win8,Win8.1,Win10,etc |
Shenzhen Hoin Electronic Technology Co.,Ltd is a high tech enterprise specialized in thermal Mini receipt printer,thermal barcode label printer,panel printer and kiosk printer. We can offer one-stop services from R&D, printer main board design,plastic molding, materials assembling, production, packing, testing,sales,delivery to after-sales services.
Most of our thermal receipt printers are CE, CFF, RoHS,BIS,CB,CCC certified. Our products are Hot sale all over the world. Thermal Printers have been widely used in the express shipping, shopping mall,warehousing,retail, telecommunications, medical, tax, police, government, logistics and other industries.
1, Are you a manufacture?And What is the MOQ?
We are the professional thermal printer manufacturer with full production line. Sample order 1-2pcs printers are also welcomed.
2, Can you customise or design the product? How about add my Own Logo?
OEM and ODM are available, We are very experienced in R&D and POS Printer Solutions. MOQ:100pcs, we can add your logo for free.
3, What kind of language can you support? Besides,what operation system can you support?
Our printer English language, Spanish,Korea,France,Portuguese ,Arabic,Russian,etc 70 languages. We support Android,IOS,Linux, Mac book, Win2000,Win2003,WinXP,Win7,Win8, Win8.1,Win10,Win11 etc.
4, What's your deliver time?
For sample,1-3 days; bulk order usually 7-15days,depends on quantity.
5, Can you provide drive and latest software?
Yes. All the Android/IOS SDK, Windows driver, Mac driver, and Android/IOS testing app are available.
Download link:https://www.hoinprinter.com/download/39.html
