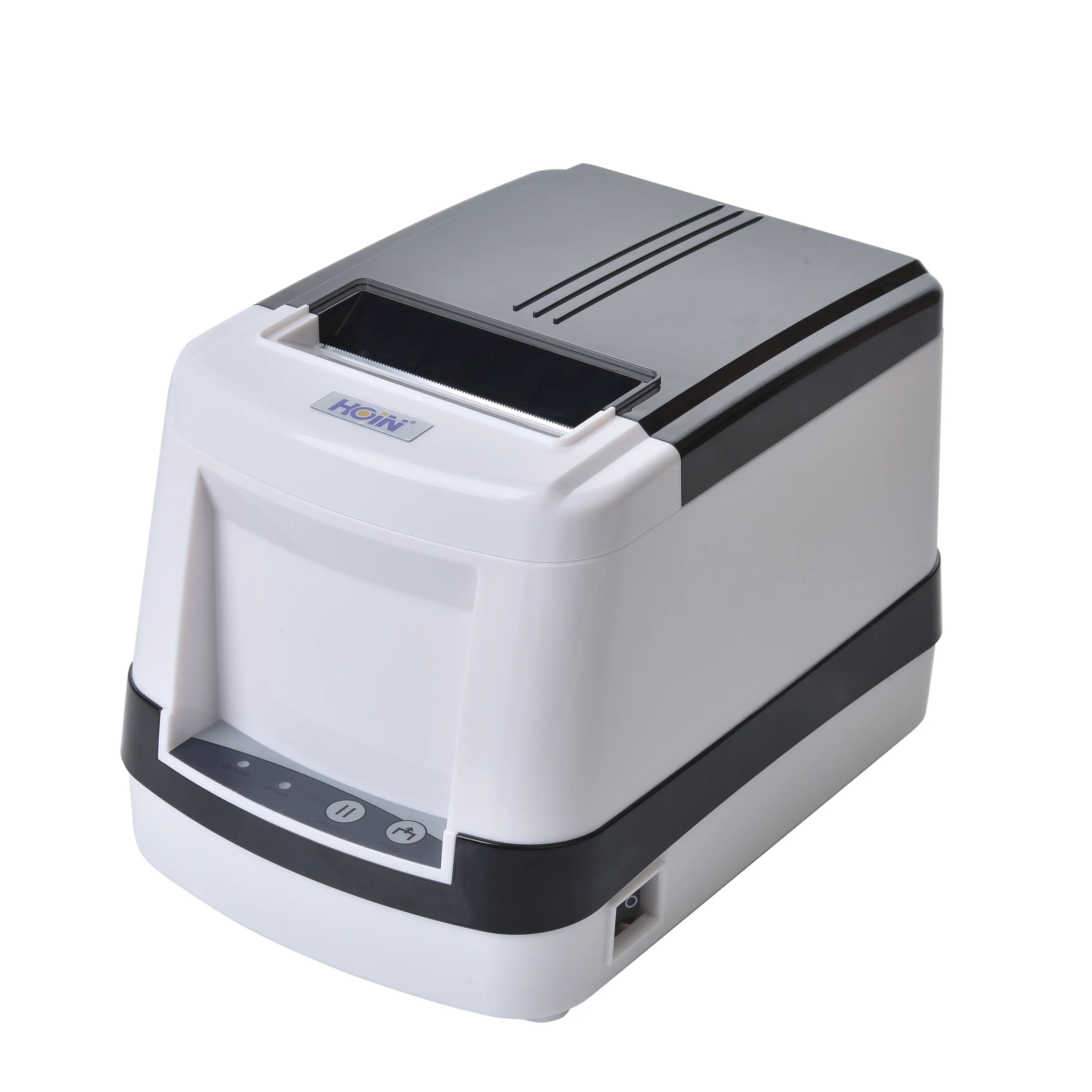

HOIN - Hoin USB BT Interface Direct thermal Barcode Label Printer HOP-HL80 Thermal Label Barcode Printer
With our fully equipped machines, we can produce Hoin USB BT Interface Direct thermal Barcode Label Printer HOP-HL80 to your exact specifications. Technological innovation is the cornerstone of product quality. Next, Shenzhen Hoin Electronic Technology Co will continue to uphold the spirit of'advance with the times, outstanding innovation', and improve its own innovation capabilities by cultivating more outstanding talents and investing more scientific research funds.
| Products Status: | Stock | Type: | Label Printer |
| Style: | Black and white | Use: | Label Printer for POS |
| Interface Type: | USB+Bluetooth | Max Paper Size: | 20-80mm |
| Black Print Speed: | 127 mm (5") / s, | Color Print Speed: | not support |
| Max. Resolution: | 203 DPI | Brand Name: | Hoin |
| Model Number: | HOP-HL80 | Place of Origin: | Guangdong, China |
| Warranty(Year): | 1-Year | After-sales Service: | Others, Call Center and on-line Technical Support |
| Printing Method: | Thermal Line | Command: | Command:TSPL-EZ emmulation ,ZPL,EPL,DPL |
| Resolution: | 203 DPI | Interface: | USB+Bluetooth |
| barcode: | 1D,2D | paper width: | 20-80mm |
| Print Length(Max): | 1770 mm (70") | Printer Size: | 225 mm (D) x151 mm (W) x151 mm (H) |
| Label Paper Roll Diameter: | 25-120mm | Paper type: | Adhesive Sticker |
| Certification: | FCC, ce, RoHS, BIS（ISI）, CB |
HOP-HL80
Advantages:
1) Support High Quality Label Printing
2) Support 1D 2D bar code printing
3) Support Serial Sequence
4) No need Ribbon,No need Ink
5) High Speed 127 mm/s
6) Big Paper warehouse for diameter 120mm roll
7) Saw tooth wave easy for tearing paper
Data sheet:
|
Resolution |
203 DPI |
|
|
Print Method |
Thermal Print |
|
|
Print Speed(Max) |
127 mm (5") / s, |
|
|
Print Width(Max) |
76mm (3”) |
|
|
Print Length(Max) |
1770 mm (70”) |
|
|
Printer Size |
225 mm (D) x151 mm (W) x151 mm (H) |
|
|
Printer Weight |
1.08kg |
|
|
Label Paper Roll Diameter |
25-120mm |
|
|
Paper Direction |
Paper Up |
|
|
Processor |
32-bit CPU |
|
|
Memory |
n 8M Flash memory |
|
|
Interface |
USB (Standard)+Bluetooth |
|
|
Power |
Adaptor n Input: AC 100-240V n Output: DC 24V-2.5A |
|
|
User Indicator |
Standard Model n 2 Press Buttons n 1 LED Blue Light,1 LED Red Light |
|
|
Sensor |
n Gap Sensor n Cover Opening Sensor n Printer Head Temperature Sensor |
|
|
Paper Type |
Thermal paper, Thermal adhesive paper, etc |
|
|
Media Type |
Continuous,Gap |
|
|
Media Width |
20 mm ~ 82 mm |
|
|
Media Thickness |
0.06 mm ~ 0.25 mm |
|
|
Label Length |
10 mm ~ 1770 mm |
|
Bar Code |
1D bar code Code128 subsets A.B.C,Code128UCC, EAN128, Interleave 2 of 5,Code 39,Code 93, EAN-13, EAN-8, Codabar, POSTNET, UPC-A, UPC-E, EAN and UPC 2(5) digits, MSI, PLESSEY, China Post, ITF14, EAN14, Code 11, TELPEN, PLANET, Code 49, Deutsche Post Identcode, Deutsche Post Leitcode, LOGMARS 2D bar code CODABLOCK F mode, DataMatrix, Maxicode, PDF-417, Aztec, MicroPDF417, QR code, RSS Barcode (GS1 Databar) |
||
|
Rotation on font and Bar code |
0°, 90°, 180°, 270° |
||
|
Command |
Command:TSPL-EZ emmulation ,ZPL,EPL,DPL |
||
|
Environment |
Operation Environment: -10 ~ 50 °C (14 ~ 122 °F), Humidity:10 ~ 90% No condensing Storage Environment: -40 ~ 60 °C (-40 ~ 140 °F), Humidity:10 ~ 90% No condensing |
||
|
Accessories |
n Windows Volume label editing software, driver and operation manual CD n Fast installation guide n Power adaptor n Power cable n USB cable |
||
|
Reliability |
n One year warranty n Printer head 50KM or One year warranty. Depends on which reach first. n Printer roller 50KM or One year warranty. Depends on which reach first. |
||
