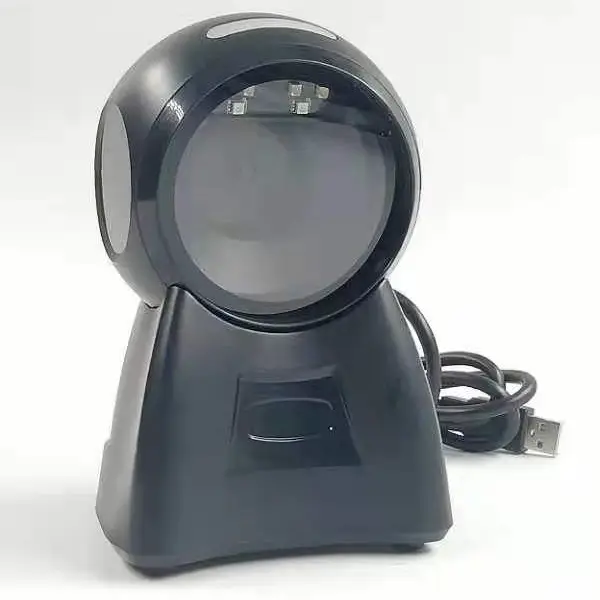

HOP-E9005 USB Platform Scanner
Product Description
The HOP-E9005 is a high-performance fixed 2D barcode scanner featuring a global-shutter imaging engine for fast response, high accuracy, and strong decoding capability. With high-brightness LED illumination, it maintains reliable scanning even in low-light environments, making it ideal for supermarkets, retail stores, and self-checkout applications.
| Product Parameter | |
| Model | HOP-E9005 |
| Code reading mode: | CMOS (global exposure) |
| Pixels | 640*480 |
| Light source | 617nm red LED |
| Scan mode | Omnidirectional induction trigger scan / successive |
| Minimum resolution | 0.127mm(5mil) @Code 39, PCS=90% |
| Use environment | 0°C-50°C |
| Storage temperature | -20℃~+70℃ |
| Storage humidity | 5%-95% non-condensing |
| Ambient lighting | 0~8,600Lux (fluorescence) 0~100,000Lux (sunlight) |
| Input voltage | 5VDC±10% |
| Working current | 175mA typical |
| Field depth angle | 30° V x 48°(vertical and horizontal) |
| View field angle | 48° (H) x 30° (V) |
| Interface support | USB, USB-COM, RS-232（optional） |
| Outer box size | 535mm×355mm×485mm（L * W * H） |
| Box size | 175mm×130mm×115mm（L * W * H) |
| Product weight | About 300g（excluding packaging and accessories） |
| Gross weight | About 450g（including packaging and accessories） |
| Cable standard | Straight line: 1.8m |
| Color | Black,White |
| Texture of material | ABS+PC |
| Sealing grade | IP54 |
| Drop height | 1.5m |
| Decoding capability | 1D: EAN13, EAN8, UPCA, UPC-E0, UPC-E1, Code128, Code39, Code93, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, CodaBar, MSI, RSS 2D: QR, Data Matrix (DM), PDF417, supporting mobile phone screen code reading |
Product Details
We strive to produce the most cost-effective, high-performance barcode scanners, enabling businesses to achieve fast, accurate, and seamless data capture in every application.
Scan Instantly, Work Efficiently
Featuring a 32-bit CMOS imaging processor, this scanning platform delivers micro-level decoding accuracy and an ultra-responsive scan speed. Even barcodes that are tiny, damaged, or printed with low contrast can be captured instantly — simply pass the item over the scanner and it reads without delay. Designed to handle the fast pace of retail checkout, warehousing, and self-service environments, it dramatically enhances workflow efficiency and ensures smooth, reliable operation throughout the day.
Duplicate Scan Prevention
Equipped with intelligent duplicate barcode detection, this scanning platform ensures every scan counts — only once. Users can customize the re-scan interval based on workflow habits and customer traffic, preventing accidental double scanning and avoiding pricing disputes. Whether during busy checkout hours or high-volume operations, it maintains transaction accuracy and enhances the shopping experience with smooth, reliable performance.
Durable ABS Material
Built with high-strength ABS material, this scanner platform is designed to withstand daily bumps, drops, and heavy use. Its enhanced shock-resistant structure ensures long-lasting durability even in demanding retail and industrial environments, reducing maintenance costs and keeping your checkout operations running smoothly without interruptions.
Application
This high-performance scanning platform is built to support diverse commercial environments, delivering fast, accurate barcode reading for millions of users. From retail checkouts to specialized product handling, it ensures efficient scanning and seamless operations across multiple industries.
