HOIN - 58MM 2 inch label Barcode adhesive paper usb bt thermal printer HOP-E582 Thermal Label Barcode Printer
56mm Thermal Label Barcode Printer
●Paper width 20 mm ~ 48 mm
●Paper length:10mm-1770mm
●Paper Roll diameter: 25-60mm
●Reslution:203DPI
●Support 1D 2D bar code printing
●Support Serial Sequence
●High Speed 76.2 mm (3") / s
●Support Dlabel, Nicelabel, Hilabel, etc software
●Command:TSPL-EZ emmulation ,ZPL,EPL,DPL
To keep up with the industry development, all employees of Shenzhen Hoin Electronic Technology Co have been doing their utmost to develop new products for days. Continuous innovation ability is the fundamental guarantee of product quality. HOIN has been dedicated to the design, R&D, manufacturing, and updates of Thermal Label printer,Kiosk Thermal printer,Portable Thermal Receipt Printer,code scanning gun. We fully hope that we can satisfy customers from different fields, countries, and regions by offering them high-quality products and professional service. If you have any questions or problems, please contact us at any time through the contact information listed on our website.
| Private Mold: | Yes | Products Status: | Stock |
| Type: | Label Printer | Style: | Black and white |
| Use: | Label Printer for POS | Interface Type: | USB+BT |
| Max Paper Size: | 58mm | Black Print Speed: | 127 mm (5") / s, |
| Color Print Speed: | not support | Max. Resolution: | 203 DPI |
| Brand Name: | Hoin | Model Number: | HOP-E582 |
| Place of Origin: | Guangdong, China | Warranty(Year): | 1-Year |
| After-sales Service: | Others, Call Center and on-line Technical Support, Onsite Training and Inspection | Software development kit (SDK): | NO |
| Printing Method: | Thermal Line | Command: | TSPL-EZ emulation,ZPL,EPL,DPL |
| Resolution: | 203 DPI | Interface: | USB+Blue tooth |
| barcode: | 1D,2D | paper width: | 58mm (2") |
| Label Paper Roll Diameter: | 25-50mm | Paper type: | Adhesive Sticker |
| Certification: | FCC/CE/ROHS/BIS/CB |

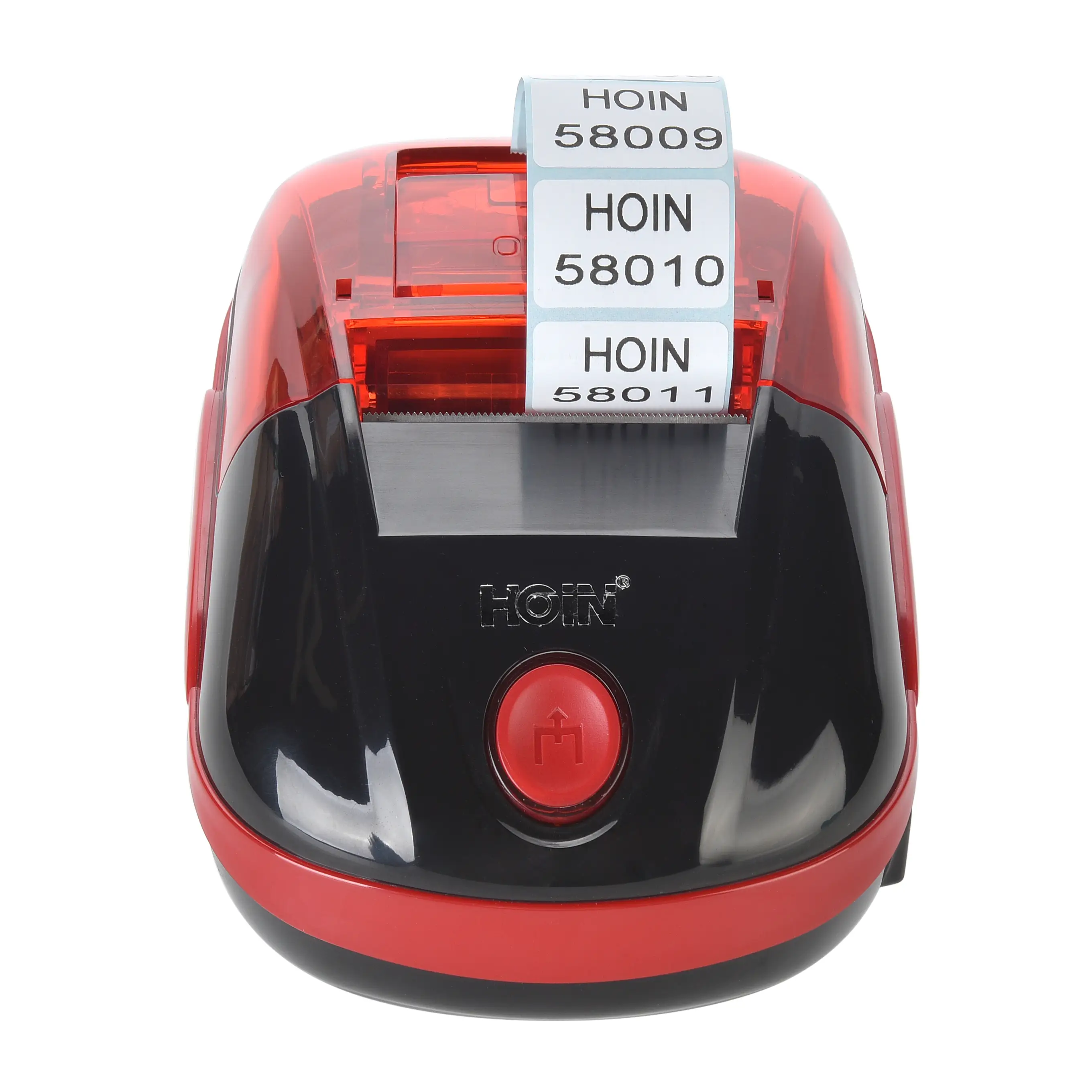

HOP-EM582
Thermal Label Printer
58mm Thermal Label Barcode Printer
*Command:TSPL-EZ emmulation ,ZPL,EPL,DPL
*Reslution:203DPI
*Support 1D 2D bar code printing
*Support Serial Sequence
*Support Dlabel, Nicelabel, Bartender etc software
*Supported Paper size details: Width 20-57mm; Label printing width:20-48mm; Length 10-1700mm; Paper roll diameter 25-60mm
Techinical datas
Resolution | 203 DPI | |
Print Method | Thermal Print | |
Print Speed(Max) | 76.2 mm (3") / s, | |
Print Width(Max) | 48mm(2”) | |
Print Length(Max) | 1770 mm (70”) | |
Printer Size | 165 mm (D) x115 mm (W) x88 mm (H) | |
Printer Weight | 0.33KG | |
Processor | 32-bit CPU | |
Memory | 8M Flash memory 8M SDAM | |
Interface | USB (Standard) COM (Optional) Blue ooth (Optional) WIFI (Optional) LAN (Optional) | |
Power | Adaptor Input: AC 100-240V Output: DC 8.5V-3A | |
Sensor | Gap Sensor Cover Opening Sensor Printer Head Temperature Sensor | |
Label paper type | Thermal Label paper, Thermal adhesive paper, etc | |
Label media type | Continuous,Gap | |
Label width | 20mm-57mm | |
Label effective printing width | 20 mm ~ 48 mm | |
Label paper thickness | 0.06 mm ~ 0.25 mm | |
Label paper length | 10 mm ~ 1770 mm | |
Label paper roll diameter | 25-60mm | |
Paper Direction | Paper up | |
Paper off type | Tear off | |
Gap Height | Minimum 2 mm | |
Print out deviation | Vertical: 1 mm maximum. Horizontal: 1 mm maximum. | |
Internal font | 1 set of alphanumeric fonts | |
Barcode | 1D bar code Code128 subsets A.B.C,Code128UCC, EAN128, Interleave 2 of 5,Code 39,Code 93, EAN-13, EAN-8, Codabar, POSTNET, UPC-A, UPC-E, EAN and UPC 2(5) digits, MSI, PLESSEY, China Post, ITF14, EAN14, Code 11, TELPEN, PLANET, Code 49, Deutsche Post Identcode, Deutsche Post Leitcode, LOGMARS 2D bar code CODABLOCK F mode, DataMatrix, Maxicode, PDF-417, Aztec, MicroPDF417, QR code, RSS Barcode (GS1 Databar) | |
Rotation on font,Bar code | 0°, 90°, 180°, 270° | |
Command | TSPL-EZ emulation,ZPL,EPL,DPL | |
Shenzhen Hoin Electronic Technology Co.,Ltd is a high tech enterprise specialized in thermal Mini receipt printer,thermal barcode label printer,panel printer and kiosk printer. We can offer one-stop services from R&D, printer main board design,plastic molding, materials assembling, production, packing, testing,sales,delivery to after-sales services.
Most of our thermal receipt printers are CE, CFF, RoHS,BIS,CB,CCC certified. Our products are Hot sale all over the world. Thermal Printers have been widely used in the shopping mall,warehousing,retail, telecommunications, medical, tax, police, government, logistics and other industries.
