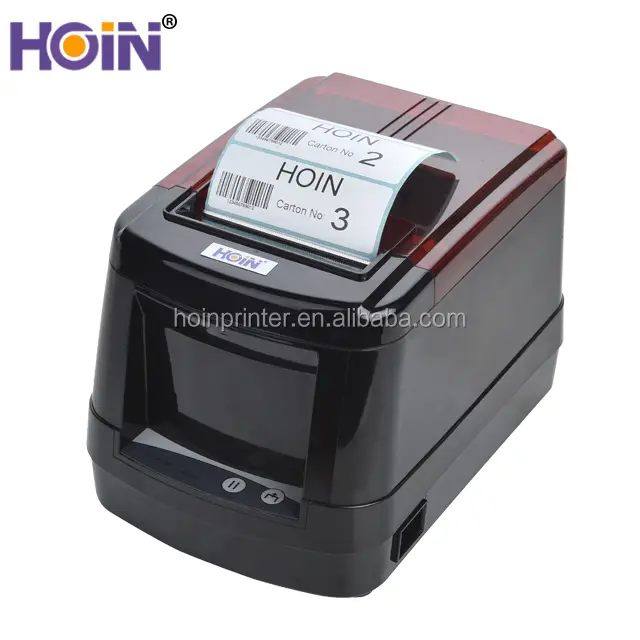

HOIN - 80mm Barcode Label Thermal Printer High Speed 127mm/s For Shops Supermarkets Warehouse Printing Thermal Label Barcode Printer
Shenzhen Hoin Electronic Technology Co has many years rich experience in manufacturing 80mm Barcode Label Thermal Printer High Speed 127mm/s For Shops Supermarkets Warehouse Printing. High-end technologies are adopted to manufacture the product.When the product is manufactured and used in the field(s) of Printers, its stability and advantages can be fully played out. Our capable staff has been devoted to the improvement and upgrades of technology.In the Printers,the product is widely used.
| Products Status: | Stock | Type: | Label Printer |
| Style: | Black and white | Use: | Label Printer for POS |
| Interface Type: | USB+Bluetooth | Max Paper Size: | 80mm |
| Black Print Speed: | 127 mm (5") / s, | Color Print Speed: | not support |
| Max. Resolution: | 203 DPI | Brand Name: | Hoin |
| Model Number: | HOP-HL80 | Place of Origin: | Guangdong, China |
| Warranty(Year): | 1-Year | After-sales Service: | Others, Call Center and on-line Technical Support |
| Printing Method: | Thermal Line | Command: | TSPL-EZ emulation,ZPL,EPL,DPL |
| Resolution: | 203 DPI | Interface: | USB+Bluetooth |
| barcode: | 1D,2D | paper width: | 76mm (3") |
| Print Length(Max): | 1770 mm (70") | Printer Size: | 225 mm (D) x151 mm (W) x151 mm (H) |
| Label Paper Roll Diameter: | 25-120mm | Paper type: | Adhesive Sticker |
| Certification: | FCC, ce, RoHS, BIS（ISI）, CB |
80mm Barcode Label Thermal Printer High Speed 127mm/s For Shops Supermarkets Warehouse Printing
HOP-HL80
80mm Thermal Label Barcode Printer
*Command:TSPL-EZ emmulation ,ZPL,EPL,DPL
*Paper Width:20mm-80mm Paper
*Diameter Paper roll:25-120mm
*Reslution:203DPI
*Length:1770mm(70inch Max)
*Support 1D 2D bar code printing
*Support Serial Sequence
*Support Dlabel, Nicelabel, Bartender etc software
Data sheet:
|
Resolution |
203 DPI |
|
|
Print Method |
Thermal Print |
|
|
Print Speed(Max) |
127 mm (5") / s, |
|
|
Print Width(Max) |
76mm (3”) |
|
|
Print Length(Max) |
1770mm(70") |
|
|
Printer Size |
225 mm (D) x151 mm (W) x151 mm (H) |
|
|
Printer Weight |
1.08kg |
|
|
Label Paper Roll Diameter |
25-120mm |
|
|
Paper Direction |
Paper Up |
|
|
Processor |
32-bit CPU |
|
|
Memory |
n 8M Flash memory |
|
|
Interface |
USB (Standard) Bluetooth (Optional) |
|
|
Power |
Adaptor n Input: AC 100-240V n Output: DC 24V-2.5A |
|
|
User Indicator |
Standard Model n 2 Press Buttons n 1 LED Blue Light,1 LED Red Light |
|
|
Sensor |
n Gap Sensor n Cover Opening Sensor n Printer Head Temperature Sensor |
|
|
Paper Type |
Thermal paper, Thermal adhesive paper, etc |
|
|
Media Type |
Continuous,Gap |
|
|
Media Width |
20 mm ~ 82 mm |
|
|
Media Thickness |
0.06 mm ~ 0.25 mm |
|
|
Label Length |
10 mm ~ 1770 mm |
|
Bar Code |
1D bar code Code128 subsets A.B.C,Code128UCC, EAN128, Interleave 2 of 5,Code 39,Code 93, EAN-13, EAN-8, Codabar, POSTNET, UPC-A, UPC-E, EAN and UPC 2(5) digits, MSI, PLESSEY, China Post, ITF14, EAN14, Code 11, TELPEN, PLANET, Code 49, Deutsche Post Identcode, Deutsche Post Leitcode, LOGMARS 2D bar code CODABLOCK F mode, DataMatrix, Maxicode, PDF-417, Aztec, MicroPDF417, QR code, RSS Barcode (GS1 Databar) |
||
|
Rotation on font and Bar code |
0°, 90°, 180°, 270° |
||
|
Command |
TSPL-EZ emulation |
||
|
Environment |
Operation Environment: -10 ~ 50 °C (14 ~ 122 °F), Humidity:10 ~ 90% No condensing Storage Environment: -40 ~ 60 °C (-40 ~ 140 °F), Humidity:10 ~ 90% No condensing |
||
|
Accessories |
n Windows Volume label editing software, driver and operation manual CD n Fast installation guide n Power adaptor n Power cable n USB cable |
||
|
Reliability |
n One year warranty n Printer head 50KM or One year warranty. Depends on which reach first. n Printer roller 50KM or One year warranty. Depends on which reach first. |
||
We are a professional themal printer manufacture in shenzhen which can provide one package services from designing,R&D,production,logo printing,packaging to shipping.
Most of our thermal receipt printers are CE, CFF, RoHS,BIS,CB,CCC certified. Our products are Hot sale all over the world. Thermal Printers have been widely used in the shopping mall,warehousing,retail, telecommunications, medical, tax, police, government, logistics and other industries.
HOIN 7 Biggest Features to sell printers all over the world:
1.Hoin is the most professional Thermal Printer Manufacturer in Shenzhen China
2.All engineers with more than 10 years experiences in thermal printers
3.OEM,ODM available
4.Free software,SDK available
5.All printers with 1 year warranty,all life free maintenance
6.Most printers with CE,FCC,ROHS,CCC,CB,BIS certification.
7.High quality,fast delivery,sample 3-5 days,bulk order 15days.
Nina Xia for your services!!
Cellphone :+086 13590219521
Whatapp :+86 13590219521
QQ :573460385
Wechat :ninayzh
Skype :nacre214
Website :www.hoinprinter.com/en or HOIN printer Website
Get in touch with us
We thermal printer supplier rely on research and development strength, personalized solutions, stable product quality, scientific management,rich marketing experience and perfect market channels. If you have a project then please get in touch and we can discuss your requirements and needs. View more cases we have accomplished to learn more details of our services
One of the leading thermal printer manufacturer in China, With more than 10 years experiences specialized in thermal receipt printers, thermal label printer, portable printers, KIOSK printers.
