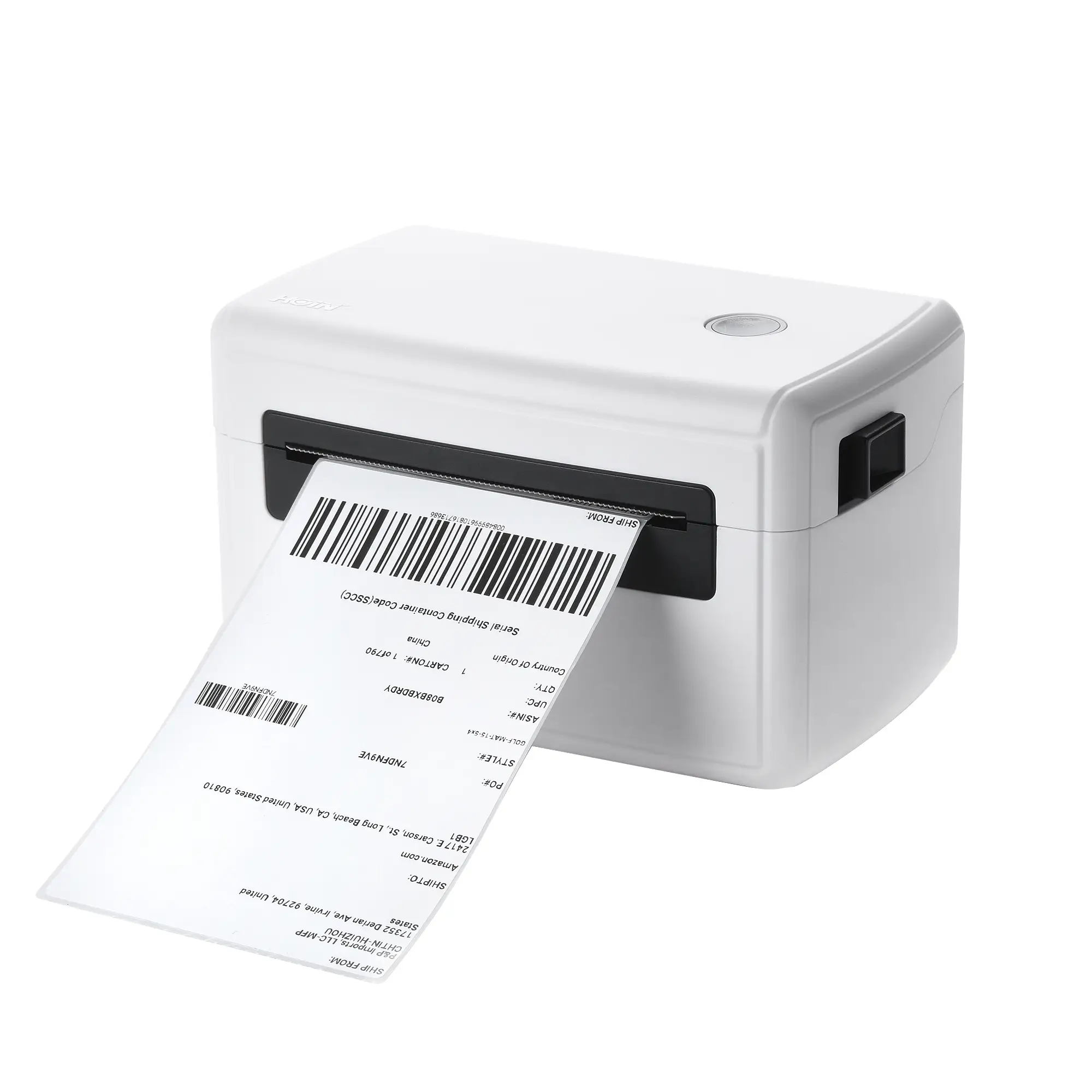

After months of furious yet meaningful development work, Shenzhen Hoin Electronic Technology Co has made it a great success to work out 4 inch Thermal label Barcode Printer 110mm shipping waybill printer Label Sticker Printer. The product is supplied with multiple features and a broad range of applications. Since launched, 4 inch Thermal label Barcode Printer 110mm shipping waybill printer Label Sticker Printer has been receiving mounting acclaim from customers. In the future,Shenzhen Hoin Electronic Technology Co will continue to introduce outstanding talents and learn advanced technology, win the initiative in market competition, and clear road obstacles to achieve the goal of becoming a world-class enterprise.
| Products Status: | Stock | Type: | Thermal Receipt Printer |
| Style: | Black and white | Use: | Thermal POS Receipt Printer |
| Interface Type: | USB or USB+Blue toth | Max Paper Size: | 118mm |
| Black Print Speed: | 6.0inch/Sec | Color Print Speed: | not support |
| Max. Resolution: | 203 DPI | Brand Name: | Hoin |
| Model Number: | HOP-HL450 | Place of Origin: | Guangdong, China |
| Warranty(Year): | 1-Year | After-sales Service: | Free spare parts |
| Printing Method: | Thermal Line | Effective Printing Width: | 108mm |
| Resolution: | 203 DPI | Interface: | USB or USB+Blue toth |
| barcode: | 1D,2D | paper width: | 118mm |
| paper thickness: | ≤0.12mm | Instructions: | TSPL-EZ emulation,ZPL,EPL,DPL |
| Print Head Life: | 1770 mm (70") | Paper type:: | Roll type or Folder type Paper |
Items | Parameters/Descriptions |
Control Panel | Power switch,Feed button,LED indicator (Red blue LED light) |
Sensor | Gap sensor Black mark sensor (removable in full print format) Print head up sensor Temperature Sensor (THP) |
Outside Paper Diameter | 8 inch roll-type thermal label paper or foldable thermal label paper |
Paper Width | 25.4 ~ 115 mm (1.0inch ~ 4.5inch ) |
Label Type | Continuous, gap, black mark, fan-fold, punched hole,label paper, tag paper card |
Paper Thickness | 0.05mm-0.26mm |
Paper Type | Stack or Roll type paper |
Open | Shell way |
Print Method | Direct thermal |
Print Location | Print centered |
Resolution | 203 dpi(Speed=6.0inch) |
Print Density | 1-15 density Level |
Speed | 6.0inch/Sec |
Min.height | 25mm |
Max Media Size | 118mm |
Max Printing Size | 108mm (4.25inch) |
Max Height | 1770mm |
Memory | 8MB Flash Menmory/8MB SDRAM |
Interface | 576 Dots/Line or 512 Dots/Line(8dots/mm,203dpi) |
Interface | USB2.0 (Standard USB-B)/Blue ooth(Optional) |
Built-in font library | Eight bitmap fonts/Windows fonts available for download via software |
1D Barcode | 1D barcode:Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar, Interleaved 2 of 5 , EAN-8,EAN-13, EAN-128, UPC-A,UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China POST, GS1 DataBar, Code 11 |
2D BarCode | 2D barcode:PDF-417, Maxicode, DataMatrix, QR code, Aztec |
Rotation | 0°,90°,180°,270° |
Emulaion | TSPL2,EPL,ZPL,DPL |
Driver | (1)Windows:XP,7,8,10 (32-bit and 64-bit systems included); (2)Mac:v10.6.8,v10.7.x,v10.8.x,v10.9.x,10.10.x,10.11.x etc; (3)Linux:centos 7.0 X64,ubantu 12.04 X86 and X64 version; |
TPH Working Life | Over 100,000,000 pulses or over 50 km |
Gear Working life | More than 200 kilometers |
Power Adapor | Input:AC 110V~260V/50Hz/60Hz Output:DC 24V—2.5A |
working altitude | Only suitable for safe use in areas below 2000m above sea level |
working environment | 5℃~50℃(non-condensing) |
storage environment | -20℃~60℃(non-condensing) |
Working humidity | 20%~85% RH(non-condensing) |
Storage humidity | 5%~95% RH(non-condensing) |
