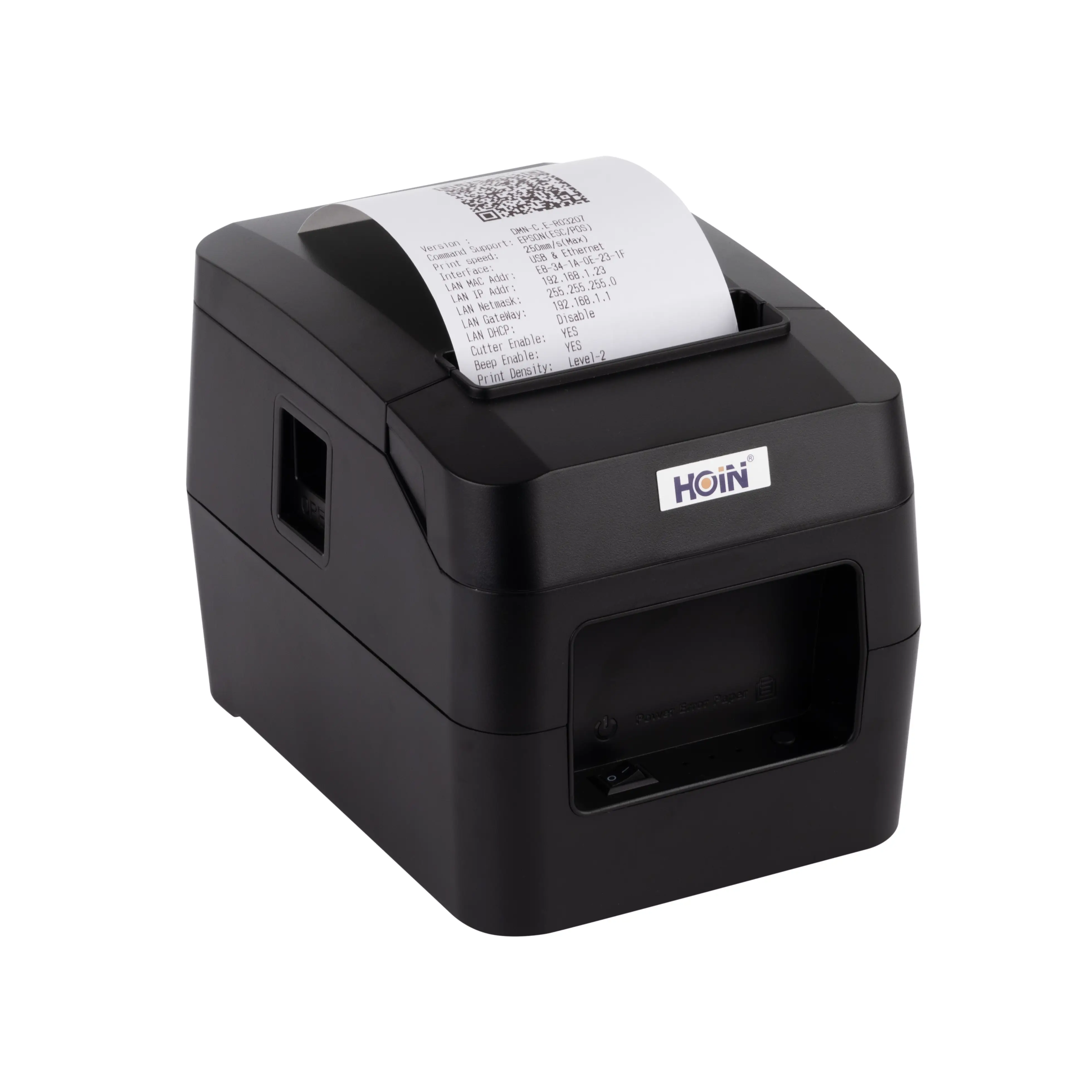

Thermal Printer 80mm HOP-E803 Auto Cutter 250mm/S
PRODUCTS FEATURES
● 250mm/s high speed printing auto cutter;
● Support wall hanging function, meet the special environment printing;
● Support LOGO Graphical download and print;
● Support 1D,2D bar code printing;
● Support Multi language printing;
● Rich Interface:USB,Serial,Internet,Bluetooth,WIFI,etc.(Interface combination, pls contact manufacture to confirm)
● Support Windows,Linux,Android and IOS system;
HOP-E803 is a newly designed thermal receipt printer with high reliability and high performance and cost effectiveness. 250mm/s high speed printing,greatly improve printing efficiency; Rich interface selection including USB,Serial,LAN, Bluetooth,WIFI; Real-time printing monitoring function, to avoid losing any bills with great extent,creating a enjoyable and extraordinary printing experience.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Introduction
HOP-E803 is a newly designed thermal receipt printer with high reliability and high performance and cost effectiveness. 250mm/s high speed printing,greatly improve printing efficiency; Rich interface selection including USB,Serial,LAN, Bluetooth,WIFI; Real-time printing monitoring function, to avoid losing any bills with great extent,creating a enjoyable and extraordinary printing experience.
3 COLOURS
Support windows,android,IOS
Packing
Product Parameters
| Item | Parameters | |
| Print parameters | Printing Method | Thermal Line |
| Printing width | 72mm | |
| Resolution | 576 Dots/Line or 512 Dots/Line（8dots/mm，203dpi） | |
| Print speed | 250mm/Second(MAX) | |
| Interface | USB,Serial,Internet,Bluetooth,WIFI(Interface combination, pls contact manufacture to confirm) | |
| Line Spacing | 3.75mm（Can adjust line spacing by command） | |
| Line No. | FontA-48Lines/FontB-64Lines/Simple,traditional Chinese-24lines | |
| Character | standard GB18030 simplified / BIG5 traditional Chinese Fonts(Japanese and Korean optional) | |
| Character Size | ANK character：Font A：1.5×3.0mm（12×24 dots） Font B：1.1×2.1mm（9×17 dots） Simplified/Traditional Chinese：3.0×3.0mm(24×24 dots） | |
| Bar code Character | Extended character set | PC437/Katakana/PC850/PC860/PC863/PC865/WestEurope/Greek/Hebrew/EastEurope/Iran/WPC1252/PC866/PC852/PC858/IranII/Latvian /Arabic/PT151,1251/PC737/WPC/1257/ThaiVietnam/PC864/PC1001/(Latvian)/(PC1001)/(PT151,1251)/(WPC1257)/(PC864)/(Vietnam)/(Thai) |
| Bar code | 1Dbarcode:UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODE39/ITF/CODABAR/CODE93/CODE128 2D barcode：QRCODE | |
| Graphics printing | Graphics printing | Supports bitmap download and print |
| Paper | Type | Thermal |
| Width | 79.5±0.5mm | |
| Diameter | ≤80mm | |
| Feed method | Easy feed(Clameshell feed) | |
| Print commands | Commands | ESC/POS |
| Power | Power Adaptor | Input：AC 100V-240V,50-60Hz Output：DC 24V/1.5A |
| Cash Drawer Output | DC 24V/1A | |
| Buffer | NV Flash | 256K bytes |
| physical characteristics | Weight | 0.9KG |
| Dimension | 185*133*133(MM) | |
| environment | Working | Temp：5 ~ 45℃， Humidity：10 ~ 80% |
| Storage | Temp：-10 ~ 50℃ ，Humidity：10 ~ 90%（No dew） | |
| Reliability parameter | Print Head Life | 100KM（print density≤12.5） |
| Cutter Life | 1000,000times | |
| Software | Driver | Android,IOS,Linux,Windows |
Our services
OEM or ODM are acceptable.
We accept small order/trial order for customer to check whether the products is suitable for the market.
Will be available online almot in 24 hours service for your esteemed company.
We are glad to hear from you soon and to start a business relationship with your esteem company.
If you have another questions,please feel free to contact us.
