Welcome to hoin thermal printer manufacturer & supplier with quality certified and patent design.
BIS certified POS 3 inch 80mm Thermal Receipt Printer Market 80mm Desktop Thermal Printer

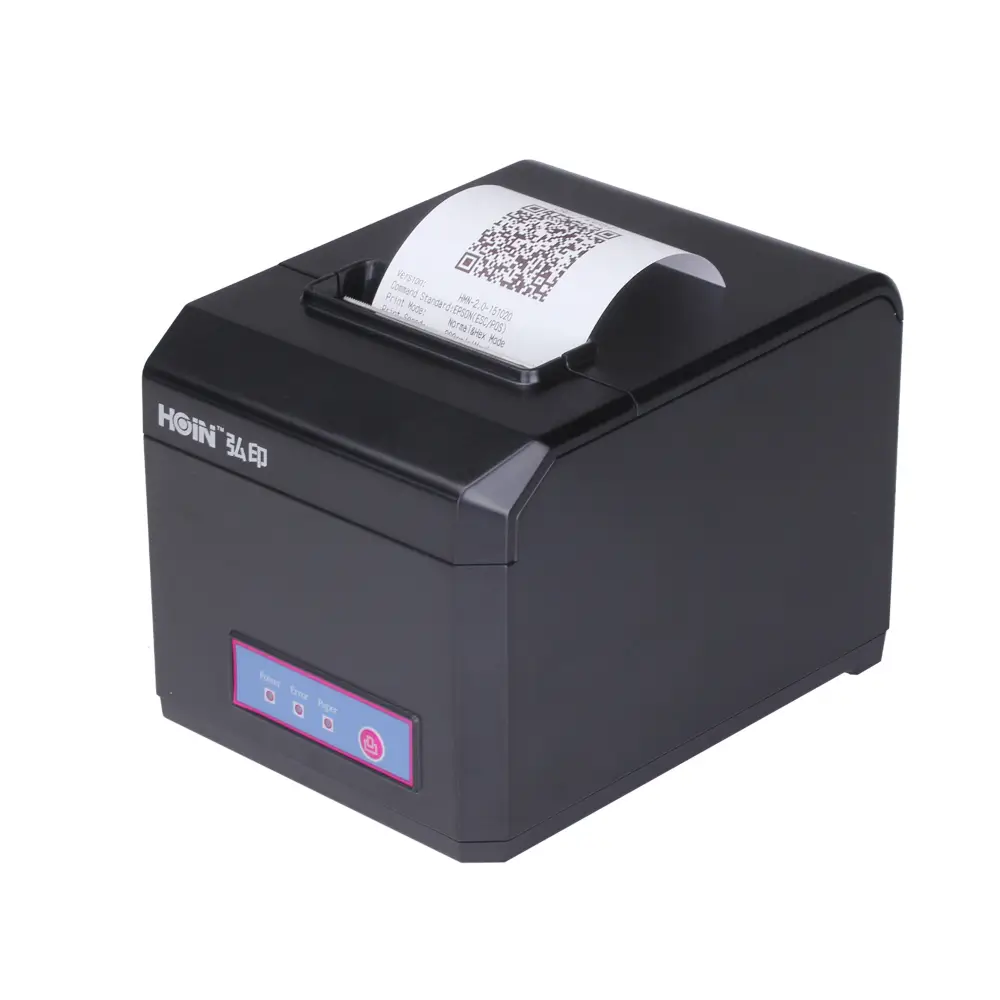

80MM Auto Cutter thermal printer
●print speed: 300 mm / sec(Max)
●Support 1D,2D bar code printing
●The standard GB18030 Font
●Movable paper guard plate design,which supports 58mm,80mm width thermal paper
●The printer monitoring function, to avoid losing any bills
●support multi language print
●support small font print
●support wall hang function
| Type: | Thermal | Style: | Black and white |
| Use: | POS Billing System | Interface Type: | USB+LAN/USB+Bluetooth/USB+LAN+WIFI |
| Max Paper Size: | 80MM | Black Print Speed: | 300MM/S or 250MM/S |
| Max. Resolution: | 8dots/mm,203dpi | Brand Name: | ODM/OEM |
| Model Number: | HOP-E801 | Place of Origin: | Guangdong, China |
| Printing Speed: | 300 Mm/s or 250MM/S | Effective Printing Width: | 72mm |
| Resolution: | 576 Dots/Line or 512 Dots/Line(8dots/mm,203dpi) | Interface: | Internet(100M)+USB+COM;Internet(100M)+USB+WIFI;USB+GPRS;USB+COM |
| barcode: | 1D,2D | paper width: | 79.5±0.5mm |
| paper thickness: | ≤0.12mm | paper Diameter: | ≤80mm |
| Instructions: | ESC/POS | Print Head Life: | 100KM(print density≤12.5) |
BIS certified POS 3 inch 80mm Thermal Receipt Printer Available for India Market
Item | Parameters | |
Print parameters | Printing Method | Thermal Line |
| Printing width | 72mm |
| Resolution | 576 Dots/Line or 512 Dots/Line(8dots/mm,203dpi) |
| Print speed | 300mm/Second or 250mm/s |
| Interface | Internet(100M)USB+COM;Internet(100M)+USB+WIFI;USB+GPRS;USB+COM;USB+Bluetooth |
| Line Spacing | 3.75mm(Can adjust line spacing by command) |
| Line No. | Font A-32 Lines/Font B-42 Lines/Simple traditional Chinese-16 Lines |
| Character | standard GB18030 simplified / traditional Chinese Fonts |
| Character Size | ANK character,Font A:1.5×3.0mm(12×24 dots) |
Bar code Character | Extended character set | PC437/Katakana/PC850/PC860/PC863/PC865/WestEurope/Greek/Hebrew/EastEurope/Iran/WPC1252/PC866/PC852/PC858/IranII/Latvian/Arabic/PT151,1251/PC737/WPC/1257/ThaiVietnam/PC864/PC1001/(Latvian)/(PC1001)/(PT151,1251)/(WPC1257)/(PC864)/(Vietnam)/(Thai) |
| Bar code | 1D bar code:UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)CODE39/ITF/ 2D barcode:QRCODE |
Graphics printing | Graphics printing | Supports bitmap download and print ( each bitmap size Max.20K)
|
Cutter | Cutter Function | Full cut/Half cut |
Paper | Type | Thermal |
| Width | 79.5±0.5mm |
| Diameter | ≤80mm |
| Feed method | Easy feed(Clameshell feed) |
Print commands | Commands | ESC/POS |
Power | Power Adaptor | Input:AC 110V/220V,50~60Hz Output:DC 24V/2.5A |
| Cash Drawer output | DC 24V/1A |
Buffer | Input Buffer | 2048K bytes |
| NV Flash | 256K bytes |
physical characteristics | Weight | 1kgs |
| Dimension | 186*145*133mm |
Environment | Working | Temp:5 ~ 45℃, Humidity:10 ~ 80% |
| Storage | Temp:-10 ~ 50℃ ,Humidity:10 ~ 90%(No dew) |
Reliability parameter | Print Head Life | 100KM(print density≤12.5) |
| Cutter Life | 1000,000times |
Software | Driver | Android,IOS,Linux,Win2000,Win2003,WinXP,Win7,Win8,Win8.1 |
We are a professional themal printer manufacture in shenzhen which can provide one package services from designing,R&D,production,logo printing,packaging to shipping.
Most of our thermal receipt printers are CE, CFF, RoHS,BIS,CB,CCC certified. Our products are Hot sale all over the world. Thermal Printers have been widely used in the shopping mall,warehousing,retail, telecommunications, medical, tax, police, government, logistics and other industries.
HOIN 7 Biggest Features to sell printers all over the world:
1.Hoin is the most professional Thermal Printer Manufacturer in Shenzhen China
2.All engineers with more than 10 years experiences in thermal printers
3.OEM,ODM available
4.Free software,SDK available
5.All printers with 1 year warranty,all life free maintenance
6.Most printers with CE,FCC,ROHS,CCC,CB,BIS certification.
7.High quality,fast delivery,sample 3-5 days,bulk order 15days.
More Related 58MM and 80MM printers for your choosing !!!!!!
Three biggest advantages:
1,Factory direct selling,high quality and best price.
2,Experienced technical and management personnel.
3,CE,CFF.ROHS,CB,CCC certified thermal printer for your assurance.
Get in touch with us
We thermal printer supplier rely on research and development strength, personalized solutions, stable product quality, scientific management,rich marketing experience and perfect market channels. If you have a project then please get in touch and we can discuss your requirements and needs. View more cases we have accomplished to learn more details of our services
