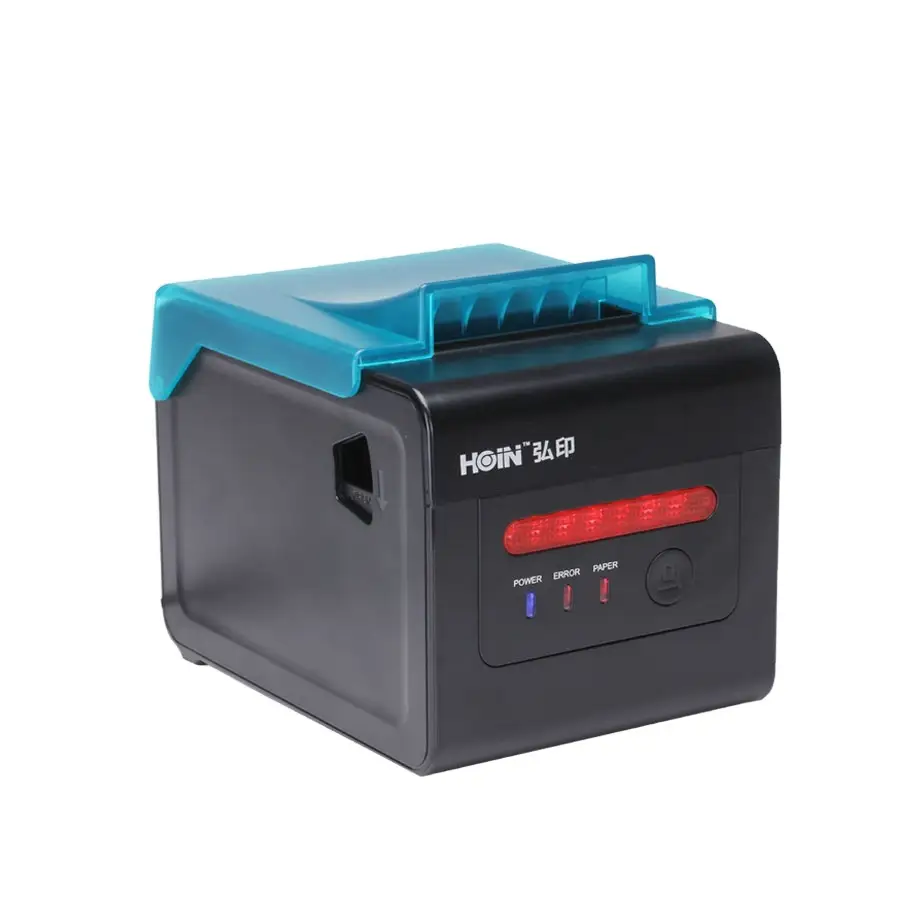

HOIN HOP-H801 China 300mm/s Speed USB BT Auto Cut 80mm POS Receipt Printer Alarm Kitchen printer kitchen alarm printer
High end 80MM Auto Cutter thermal printer
●print speed: 300 mm / sec
●Support 1D,2D bar code printing
●Excellent waterproof, dustproof, anti oil design with oil shield
●The standard GB18030 Font
●Movable paper guard plate design,which supports 58mm,80mm width thermal paper
| Products Status: | Stock | Type: | thermal pos printer 80mm |
| Style: | Black and white | Use: | thermal receipt printer for pos system |
| Interface Type: | USB+bluetooth | Max Paper Size: | 80mm |
| Black Print Speed: | 300mm/sec | Color Print Speed: | not support |
| Max. Resolution: | 576 Dots/line | Brand Name: | Hoin |
| Model Number: | HOP-H801 | Place of Origin: | Guangdong, China |
| Warranty(Year): | 1-Year | After-sales Service: | Free spare parts |
| Printer name: | 80mm POS Thermal Printer/Receipt Printer 80mm | Effective Printing Width: | 72mm |
| Resolution: | 576 Dots/Line or 512 Dots/Line(8dots/mm,203dpi) | Interface: | USB+Bluetooth |
| Cutter: | Auto Cutter | paper width: | 79.5±0.5mm |
| paper thickness: | ≤0.12mm | paper Diameter: | ≤80mm |
| Instructions: | ESC/POS | Print Head Life: | 100KM(print density≤12.5) |
China 300mm/s Speed USB BT Auto Cut 80mm POS Receipt Printer Alarm Kitchen printer
Items
Parameters
Print parameters
Printing Method
Thermal Line
Printing width
72mm
Resolution
576 Dots/Line Or 512 Dots/Line(8dots/mm,203dpi)
Printing Speed
300mm/s
Interface
USB+BLUETOOTH
Line Space
3.75mm(Can adjust line space by command)
Line No.
Font A-32 Lines/Font B-42 Lines/Simple,traditional Chinese-16 Lines
Character
standard GB18030 simplified / traditional Chinese
Character Size
ANK character,Font A:1.5×3.0mm(12×24 dots)
Font B:1.1×2.1mm(9×17 dots) Simplified/Traditional Chinese:3.0×3.0mm(24×24 dots)
Bar code Character
Extended character set
PC437/Katakana/PC850/PC860/PC863/PC865/WestEurope/Greek/Hebrew/EastEurope/Iran/WPC1252/PC866/PC852/PC858/IranII/Latvian/Arabic/PT151,1251/PC737/WPC/1257/ThaiVietnam/PC864/PC1001/(Latvian)/(PC1001)/(PT151,1251)/(WPC1257)/(PC864)/(Vietnam)/(Thai)
Bar code
1D Bar code:UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)CODE39/ITF/
CODABAR/CODE93/CODE128
2D Bar code:QRCODE
Graphics printing
Graphics printing
Supports bitmap download and print ( each bitmap size Max.20K)
Cutter
Cutter Function
Full cut/Half cut
Paper
Type
Thermal
Width
79.5±0.5mm
Diameter
≤80mm
Feed method
Easy feed(Clameshell feed)
Special function
Oil Shield
Support
Bills not taken detect and remind
Support
Tibet line slot
Support
Bulit in loudspeaker
Support
Print Commands
Commands
ESC/POS
Power
Power Adaptor
Input:AC 100V~240V,50~60Hz
Output:DC 24V/2.5A
Cash Drawer output
DC 24V/1A
Buffer
Input Buffer
2048K bytes
NV Flash
256K bytes
physical characteristics
Weight
1.65 kgsDimension
220*152*163mmEnvironment
Working
Temp:5 ~ 45℃, Humidity:10 ~ 80%
Storage
Temp:-10 ~ 50℃ ,Humidity:10 ~ 90%(No dew)
Reliability parameter
Print Head Life
100KM(print density≤12.5)
Cutter Life
1000,000times
Software
Driver
Android,IOS11,Linux,Win2000,Win2003,WinXP,Win7,Win8,Win8.1,Win 10,Win11
1.Hoin is one of the most professional Thermal Printer Manufacturer in Shenzhen China
2.All engineers with more than 8 years experiences in thermal printers
3.OEM,ODM available
4.Free software,SDK
5.All printers with 1 year warranty,all life free maintenance
6.All printers with CE,FCC,ROHS
7.High quality,fast delivery,sample 3-5days,bulk order 15days
Shenzhen Hoin Electronic Technology Co.,Ltd is a high tech enterprise specialized in thermal mini receipt printer,thermal barcode label printer,shipping label printer,panel printer, kiosk printer and scanner reader. We can offer one-stop services from R&D, printer main board design,plastic molding, materials assembling, production, packing, testing,sales,delivery to after-sales services.
Most of our thermal receipt printers are CE, CFF, RoHS,BIS,CB,CCC certified. Our products are Hot sale all over the world. Thermal Printers have been widely used in the express shipping,supermarket,shopping mall,warehousing,retail, telecommunications, medical, tax, police, government,logistics and other industries.
HOIN 7 Biggest Features to sell printers all over the world:
1.Hoin is the most professional Thermal Printer Manufacturer in Shenzhen China
2.All engineers with more than 10 years experiences in thermal printers
3.OEM,ODM available
4.Free software,SDK available
5.All printers with 1 year warranty,all life free maintenance
6.Most printers with CE,FCC,ROHS,CCC,CB,BIS certification.
7.High quality,fast delivery,sample 1-3 days,bulk order 6-15days.
Certifications:
1, Are you a manufacture?And What is the MOQ?
We are the professional thermal receipt and label printer manufacturer with full production line. Sample printer 1-2pcs are also welcomed.
2, Can you customize or design the product? Can you add my own Logo?
OEM and ODM are available, We have our own R&D team and our engineers have been in POS Printing field for more than 10 years. MOQ:1000pcs, we can add your logo for free.
3, What languages can you support? Besides,what operation system can you support?
Our printer can support English, Spanish,Korea,France,Portuguese,Arabic,Russian,etc 70 languages. We can support Android,IOS,Linux,Mac book, Win2000,Win2003,WinXP,Win7,Win8, Win8.1,Win10,Win11,etc.
4, What's your deliver time?
For sample,1-3 days; bulk order usually 7-15days,depends on quantity.
5, Can you provide drive and latest software?
Yes. All the Android/IOS SDK, Windows 58mm and 80mm driver, and Android/IOS testing app are available for free. Pls check:www.hoinprinter.com/download/39.html
