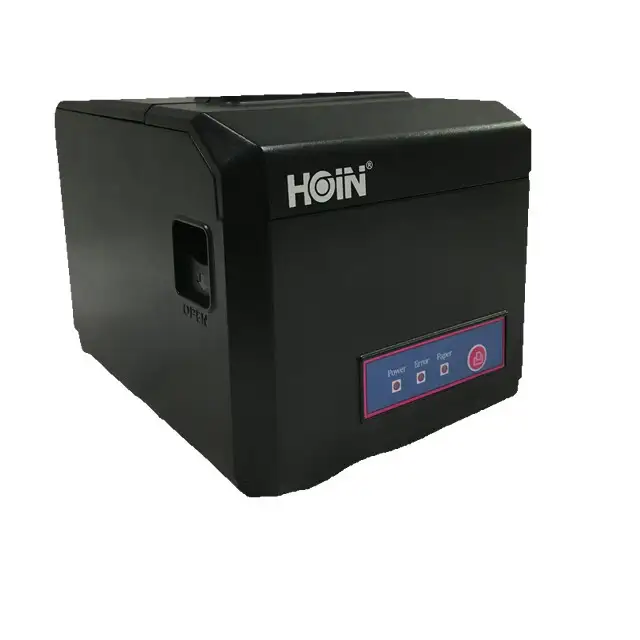

HOIN - 80mm Desktop Thermal Receipt Printer HOP-E801 USB+Ethernet+COM 80mm POS system printer
80MM Auto Cutter thermal printer
●print speed: 300 mm / sec(Max)
●Support 1D,2D bar code printing
●The standard GB18030 Font
●Movable paper guard plate design,which supports 58mm,80mm width thermal paper
●The printer monitoring function, to avoid losing any bills
●support multi language print
●support small font print
●support wall hang function
| Products Status: | Stock | Type: | Thermal Receipt Printer |
| Style: | Black and white | Use: | POS system |
| Interface Type: | USB+Ethernet+COM | Max Paper Size: | 80mm |
| Black Print Speed: | 300mm/s | Max. Resolution: | 576 Dots/line |
| Brand Name: | HOIN | Model Number: | HOP-E801 |
| Place of Origin: | Guangdong, China | Printing Speed: | 300 Mm/s |
| Effective Printing Width: | 72mm | Resolution: | 576 Dots/Line or 512 Dots/Line(8dots/mm,203dpi) |
| Interface: | Internet(100M)+USB+COM;Internet(100M)+USB+WIFI;USB+COM | barcode: | 1D,2D |
| paper width: | 79.5±0.5mm | paper thickness: | ≤0.12mm |
| paper Diameter: | ≤80mm | Instructions: | ESC/POS |
| Print Head Life: | 100KM(print density≤12.5) |
80mm Desktop Thermal Receipt Printer HOP-E801 USB+Ethernet+COM
Item
Parameters
Print parameters
Printing Method
Thermal Line
Printing width
72mm
Resolution
576 Dots/Line or 512 Dots/Line(8dots/mm,203dpi)
Print speed
300mm/Second
Interface
Internet(100M)USB+COM;Internet(100M)+USB+WIFI;USB+GPRS;USB+COM;USB+Bluetooth
Line Spacing
3.75mm(Can adjust line spacing by command)
Line No.
Font A-32 Lines/Font B-42 Lines/Simple traditional Chinese-16 Lines
Character
standard GB18030 simplified / traditional Chinese Fonts
Character Size
ANK character,Font A:1.5×3.0mm(12×24 dots)
Font B:1.1×2.1mm(9×17 dots) Simplified/Traditional Chinese:3.0×3.0mm(24×24 dots)
Bar code Character
Extended character set
PC437/Katakana/PC850/PC860/PC863/PC865/WestEurope/Greek/Hebrew/EastEurope/Iran/WPC1252/PC866/PC852/PC858/IranII/Latvian/Arabic/PT151,1251/PC737/WPC/1257/ThaiVietnam/PC864/PC1001/(Latvian)/(PC1001)/(PT151,1251)/(WPC1257)/(PC864)/(Vietnam)/(Thai)
Bar code
1D bar code:UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)CODE39/ITF/
CODABAR/CODE93/CODE128
2D barcode:QRCODE
Graphics printing
Graphics printing
Supports bitmap download and print ( each bitmap size Max.20K)
Cutter
Cutter Function
Full cut/Half cut
Paper
Type
Thermal
Width
79.5±0.5mm
Diameter
≤80mm
Feed method
Easy feed(Clameshell feed)
Print commands
Commands
ESC/POS
Power
Power Adaptor
Input:AC 110V/220V,50~60Hz
Output:DC 24V/2.5A
Cash Drawer output
DC 24V/1A
Buffer
Input Buffer
2048K bytes
NV Flash
256K bytes
physical characteristics
Weight
1kgs
Dimension
186*145*133mm
Environment
Working
Temp:5 ~ 45℃, Humidity:10 ~ 80%
Storage
Temp:-10 ~ 50℃ ,Humidity:10 ~ 90%(No dew)
Reliability parameter
Print Head Life
100KM(print density≤12.5)
Cutter Life
1000,000times
Software
Driver
Android,IOS,Linux,Win2000,Win2003,WinXP,Win7,Win8,Win8.1
We are a professional themal printer manufacture in shenzhen which can provide one package services from designing,R&D,production,logo printing,packaging to shipping.
Most of our thermal receipt printers are CE, CFF, RoHS,BIS,CB certified. Our products are Hot sale all over the world. Thermal Printers are widely used in the shopping mall,warehousing,retail, telecommunications, medical, tax, police, government, logistics and other industries.
HOIN 7 Biggest Features to sell printers all over the world:
1.Hoin is the most professional Thermal Printer Manufacturer in Shenzhen China
2.All engineers with more than 9 years experiences in thermal printers
3.OEM,ODM available
4.Free software,SDK
5.All printers with 1 year warranty,all life free maintenance
6.Most printers with CE,FCC,ROHS,CCC,CB,BIS certification.
7.High quality,fast delivery,sample 3-5 days,bulk order 15days.
1,Are you a manufacture?
We are the professional thermal printer manufacturer with high quality and best service.
2,Can you customise or design the product?
OEM and ODM products are available for customers, We have the very experienced R&D team and excellent management.
3,What kind of language can you support, just English?
Besides,what operation system can you support?
Our printer not only supports English language, but also Janpanese,Russian, Spanish,
Portuguese and Arabic etc 48 different languages available, and it support
Android,IOS,Linux,Win2000,Win2003,WinXP,Win7,Win8,Win8.1 ystems.
4. What about your MOQ?
Even 1 piece is acceptable.
5.What's your deliver time?
For sample,3 days,bulk order usually 7-15days,depends on quantity.
6,Can you provide drive and latest software?
we are supplying all windows/Andoird/IOS drive and you can download the latest software from our website:www,hoinprinter.com. Besides, We have CD Drive for you with all latest software.
