Welcome to hoin thermal printer manufacturer & supplier with quality certified and patent design.

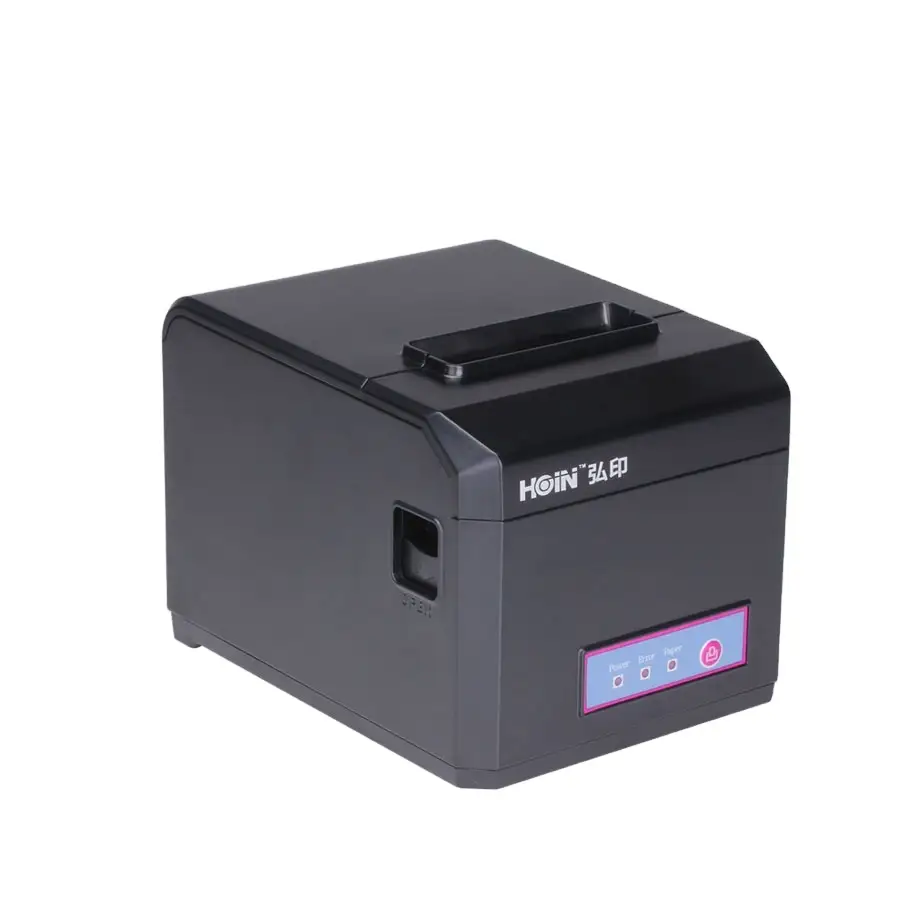

HOIN - 80mm USB+Wifi POS High Speed Auto Cut Android USB Thermal Receipt Printer 80mm POS system printer
80MM Auto Cutter thermal printer
●print speed: 300 mm / sec(Max)
●Support 1D,2D bar code printing
●The standard GB18030 Font
●Movable paper guard plate design,which supports 58mm,80mm width thermal paper
●The printer monitoring function, to avoid losing any bills
●support multi language print
●support small font print
●support wall hang function
| Place of Origin: | Guangdong, China | Brand Name: | Hoin |
| After-sales Service Provided: | Free spare parts | Warranty: | 1 Year |
| Operation System: | others | CPU: | 2MB |
| Touch Screen Type: | Not Touch Screen | Hard Disk Capacity: | 2MB |
| Printing Speed: | 300 Mm/s | Resolution: | 576 Dots/Line or 512 Dots/Line(8dots/mm,203dpi) |
| Interface: | Internet(100M)+USB+COM;Internet(100M)+USB+WIFI;USB+GPRS;USB+COM | barcode: | 1D,2D |
| paper thickness: | ≤0.12mm | paper Diameter: | ≤80mm |
| Instructions: | ESC/POS | Print Head Life: | 100KM(print density≤12.5) |
80mm USB+Bluet+Wifi POS High Speed Auto Cut Android USB Thermal Receipt Printer
Item
Parameters
Print parameters
Printing Method
Thermal Line
Printing width
72mm
Resolution
576 Dots/Line or 512 Dots/Line(8dots/mm,203dpi)
Print speed
300mm/Second
Interface
Internet(100M)USB+COM;Internet(100M)+USB+WIFI;USB+GPRS;USB+COM;USB+Bluetooth
Line Spacing
3.75mm(Can adjust line spacing by command)
Line No.
Font A-32 Lines/Font B-42 Lines/Simple traditional Chinese-16 Lines
Character
standard GB18030 simplified / traditional Chinese Fonts
Character Size
ANK character,Font A:1.5×3.0mm(12×24 dots)
Font B:1.1×2.1mm(9×17 dots) Simplified/Traditional Chinese:3.0×3.0mm(24×24 dots)
Bar code Character
Extended character set
PC437/Katakana/PC850/PC860/PC863/PC865/WestEurope/Greek/Hebrew/EastEurope/Iran/WPC1252/PC866/PC852/PC858/IranII/Latvian/Arabic/PT151,1251/PC737/WPC/1257/ThaiVietnam/PC864/PC1001/(Latvian)/(PC1001)/(PT151,1251)/(WPC1257)/(PC864)/(Vietnam)/(Thai)
Bar code
1D bar code:UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)CODE39/ITF/
CODABAR/CODE93/CODE128
2D barcode:QRCODE
Graphics printing
Graphics printing
Supports bitmap download and print ( each bitmap size Max.20K)
Cutter
Cutter Function
Full cut/Half cut
Paper
Type
Thermal
Width
79.5±0.5mm
Diameter
≤80mm
Feed method
Easy feed(Clameshell feed)
Print commands
Commands
ESC/POS
Power
Power Adaptor
Input:AC 110V/220V,50~60Hz
Output:DC 24V/2.5A
Cash Drawer output
DC 24V/1A
Buffer
Input Buffer
2048K bytes
NV Flash
256K bytes
physical characteristics
Weight
1kgs
Dimension
186*145*133mm
Environment
Working
Temp:5 ~ 45℃, Humidity:10 ~ 80%
Storage
Temp:-10 ~ 50℃ ,Humidity:10 ~ 90%(No dew)
Reliability parameter
Print Head Life
100KM(print density≤12.5)
Cutter Life
1000,000times
Software
Driver
Android,IOS,Linux,Win2000,Win2003,WinXP,Win7,Win8,Win8.1
Why Choose Us?
We are a professional themal printer manufacture in shenzhen which can provide one package services from designing,R&D,Production,packaging to shipping.
Most of our products are CE, CFF, RoHS,BIS CB certified. Our products are exported worldwide. We also have passed ISO9001:2008 Management Certification.
1.Hoin is one of the most professional Thermal Printer Manufacturer in Shenzhen China
2.All engineers with more than 8 years experiences in thermal printers
3.OEM,ODM available
4.Free software,SDK
5.All printers with 1 year warranty,all life free maintenance
6.All printers with CE,FCC,ROHS CB BIS
7.High quality,fast delivery,sample 3-5days,bulk order 15days
