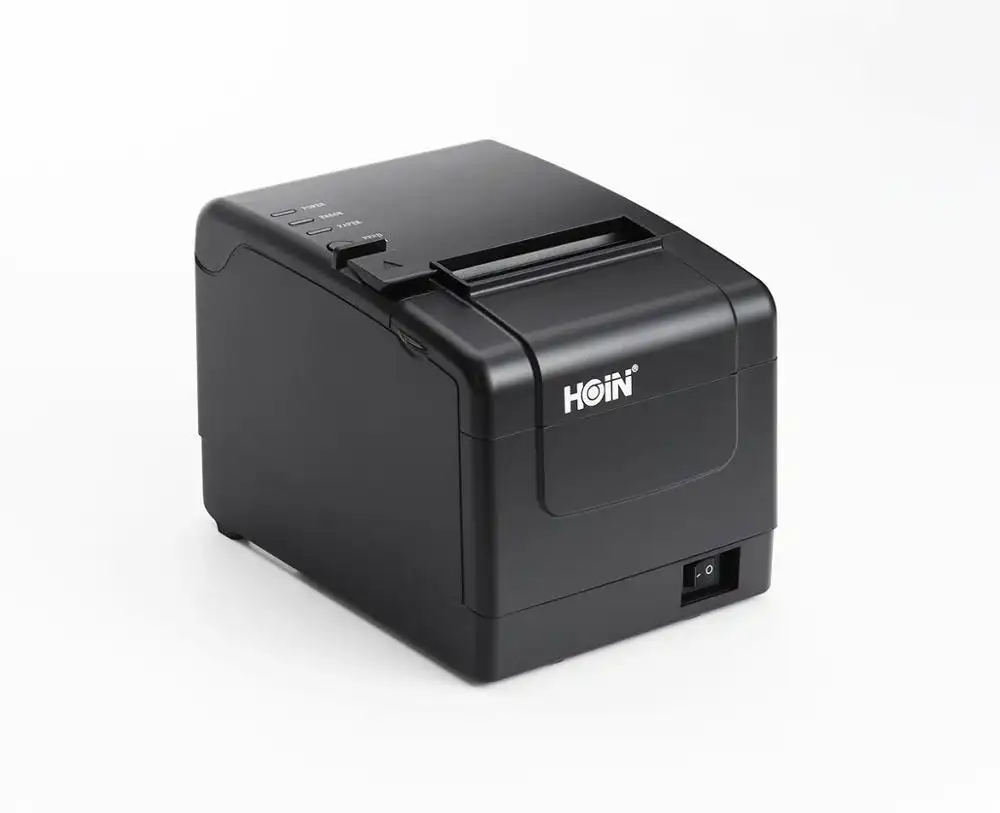

Thermal Receipt Printer 80mm Black and White with High Performance HOP-H806 80mm POS system printer
Economical 80MM Auto Cutter thermal printer
●Print speed: 160 mm / sec(Max)
●Support 1D+2D bar code printing
●The standard GB18030 Font
●Support vertical placing and printing
●The printer monitoring function, to avoid losing any bills
●Support multi language print
●Support small font print
●Support wall hang function
●Support order come remind and error alarm
| Private Mold: | Yes | Products Status: | Stock |
| Type: | Thermal Receipt Printer | Style: | Black and white |
| Use: | Thermal POS Receipt Printer | Interface Type: | USB+Ethernet |
| Max Paper Size: | 80mm | Black Print Speed: | 160mm/sec |
| Color Print Speed: | not support | Max. Resolution: | 576 Dots/line |
| Brand Name: | Hoin | Model Number: | HOP-H806 |
| Place of Origin: | Guangdong, China | Warranty(Year): | 1-Year |
| After-sales Service: | Others, Call Center and on-line Technical Support, Onsite Training and Inspection | Software development kit (SDK): | Yes |
| Printing Method: | Thermal Line | Effective Printing Width: | 72mm |
| Resolution: | 576 Dots/Line or 512 Dots/Line(8dots/mm,203dpi) | Interface: | USB+Ethernet |
| barcode: | 1D,2D | paper width: | 79.5±0.5mm |
| paper thickness: | ≤0.12mm | paper Diameter: | ≤80mm |
| Instructions: | ESC/POS | Print Head Life: | 100KM(print density≤12.5) |
| Certification: | FCC, ce, RoHS, BIS（ISI）, Other |
Hoin Latest Designed Thermal Receipt Printer 80mm Black and White with High Performance HOP-H806
Items | Parameters | |
Print parameters | Printing Method | Thermal Line |
Printing width | 72mm | |
Resolution | 576 Dots/Line Or 512 Dots/Line(8dots/mm,203dpi) | |
Printing Speed | 300mm/s | |
Interface | USB+Ethernet | |
Line Space | 3.75mm(Can adjust line space by command) | |
Line No. | Font A-32 Lines/Font B-42 Lines/Simple,traditional Chinese-16 Lines | |
Character | standard GB18030 simplified / traditional Chinese | |
Character Size | ANK character,Font A:1.5×3.0mm(12×24 dots) | |
Bar code Character | Extended character set | PC437/Katakana/PC850/PC860/PC863/PC865/WestEurope/Greek/Hebrew/EastEurope/Iran/WPC1252/PC866/PC852/PC858/IranII/Latvian/Arabic/PT151,1251/PC737/WPC/1257/ThaiVietnam/PC864/PC1001/(Latvian)/(PC1001)/(PT151,1251)/(WPC1257)/(PC864)/(Vietnam)/(Thai) |
Bar code | 1D Bar code:UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)CODE39/ITF/ 2D Bar code:QRCODE | |
Graphics printing | Graphics printing | Supports bitmap download and print ( each bitmap size Max.20K)
|
Cutter | Cutter Function | Full cut/Half cut |
Paper | Type | Thermal |
Width | 79.5±0.5mm | |
Diameter | ≤80mm | |
Feed method | Easy feed(Clameshell feed) | |
Special function | Oil Shield | Support |
Bills not taken detect and remind | Support | |
Tibet line slot | Support | |
Bulit in loudspeaker | Support | |
Print Commands | Commands | ESC/POS |
Power | Power Adaptor
| Input:AC 110V/220V,50~60Hz |
Output:DC 24V/2.5A | ||
Cash Drawer output | DC 24V/1A | |
Buffer | Input Buffer | 2048K bytes |
NV Flash | 256K bytes | |
physical characteristics | Weight |
1.3KG |
Dimension | 198*148*148(MM) | |
Environment | Working | Temp:5 ~ 45℃, Humidity:10 ~ 80% |
Storage | Temp:-10 ~ 50℃ ,Humidity:10 ~ 90%(No dew) | |
Reliability parameter | Print Head Life | 100KM(print density≤12.5) |
Cutter Life | 1000,000times | |
Software | Driver | Android,IOS,Linux,Win2000,Win2003,WinXP,Win7,Win8,Win8.1,win10 |
Shenzhen Hoin Electronic Technology Co.,Ltd is a high tech enterprise specialized in thermal Mini receipt printer,thermal barcode label printer,panel printer and kiosk printer. We can offer one-stop services from R&D, printer main board design,plastic molding, materials assembling, production, packing, testing,sales,delivery to after-sales services.
Most of our thermal receipt printers are CE, CFF, RoHS,BIS,CB,CCC certified. Our products are Hot sale all over the world. Thermal Printers have been widely used in the shopping mall,warehousing,retail, telecommunications, medical, tax, police, government, logistics and other industries.
HOIN 7 Biggest Features to sell printers all over the world:
1.Hoin is the most professional Thermal Printer Manufacturer in Shenzhen China
2.All engineers with more than 10 years experiences in thermal printers
3.OEM,ODM available
4.Free software,SDK available
5.All printers with 1 year warranty,all life free maintenance
6.Most printers with CE,FCC,ROHS,CCC,CB,BIS certification.
7.High quality,fast delivery,sample 3-5 days,bulk order 15days.
1, Are you a manufacture?And What is the MOQ?
We are the professional thermal printer manufacturer with full production line. Sample order 1-2pcs printers are also welcomed.
2, Can you customise or design the product? How about add my Own Logo?
OEM and ODM are available, We are very experienced in R&D and POS Printer Solutions. MOQ:100pcs, we can add your logo for free.
3, What kind of language can you support? Besides,what operation system can you support?
Our printer English language, Spanish,Korea,France,Portuguese ,Arabic,Russian,etc 70 languages. We support Android,IOS,Linux, Mac book, Win2000,Win2003,WinXP,Win7,Win8, Win8.1,Win10 etc.
4, What's your deliver time?
For sample,3 days; bulk order usually 7-15days,depends on quantity.
5, Can you provide drive and latest software?
Yes. All the Android/IOS SDK, Windows driver, Mac driver, and Android/IOS testing app are available.
