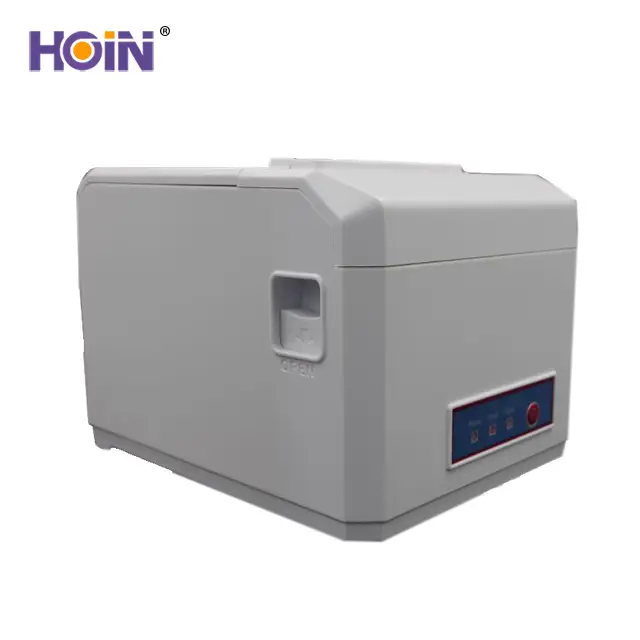

HOIN - Hoin HOP-E801 58mm/80mm Serial USB Lan Wifi BT Interface For Medical Equipments POS system printer
80MM Auto Cutter thermal printer
●print speed: 300 mm / sec(Max)
●Support 1D,2D bar code printing
●The standard GB18030 Font
●Movable paper guard plate design,which supports 58mm,80mm width thermal paper
●The printer monitoring function, to avoid losing any bills
●support multi language print
●support small font print
●support wall hang function
Shenzhen Hoin Electronic Technology Co boasts strong R&D capabilities and has been working on product development for years. Hoin HOP-E801 58mm/80mm White colour Printer Thermal Cheap Serial USB Lan Wifi BT Interface For Medical Equipments is our newly-developed product and goes on sale starting now. Hoin HOP-E801 58mm/80mm White colour Printer Thermal Cheap USB Lan Wifi BT Interface For Medical Equipments Shenzhen Hoin Electronic Technology Co have realized the importance of technology. In recent years, we have been investing heavily in technology improvement and upgrades and the research and development of new products. In this way, we can occupy a more competitive position in the industry.
| Products Status: | Stock | Type: | POS thermal printer |
| Style: | Black and white | Use: | pos thermal printer |
| Interface Type: | USB+Lan+wifi+BT+Serial | Max Paper Size: | 80mm |
| Black Print Speed: | 300mm/s | Color Print Speed: | Not support |
| Max. Resolution: | 576 Dots/line | Brand Name: | Hoin |
| Model Number: | HOP-E801 | Place of Origin: | China |
| Warranty(Year): | 1-Year | After-sales Service: | Free spare parts |
| Printing Method: | Thermal Line | Effective Printing Width: | 72mm |
| Interface: | USB+Lan+wifi+BT+Serial | barcode: | 1D,2D |
| paper width: | 79.5±0.5mm | paper thickness: | ≤0.12mm |
| paper Diameter: | ≤80mm | Weight: | 1Kgs |
| Dimension: | 186*145*133mm | Print Head Life: | 100KM(print density≤12.5) |
| Certification: | FCC, ce, RoHS, BIS（ISI） |
Hoin HOP-E801 58mm/80mm White colour Printer Thermal Cheap Serial USB Lan Wifi BT Interface For Medical Equipments
Item
Parameters
Print parameters
Printing Method
Thermal Line
Printing width
72mm
Resolution
576 Dots/Line or 512 Dots/Line(8dots/mm,203dpi)
Print speed
300mm/Second
Interface
Internet(100M)USB+COM;Internet(100M)+USB+WIFI;USB+GPRS;USB+COM;USB+Bluetooth
Line Spacing
3.75mm(Can adjust line spacing by command)
Line No.
Font A-32 Lines/Font B-42 Lines/Simple traditional Chinese-16 Lines
Character
standard GB18030 simplified / traditional Chinese Fonts
Character Size
ANK character,Font A:1.5×3.0mm(12×24 dots)
Font B:1.1×2.1mm(9×17 dots) Simplified/Traditional Chinese:3.0×3.0mm(24×24 dots)
Bar code Character
Extended character set
PC437/Katakana/PC850/PC860/PC863/PC865/WestEurope/Greek/Hebrew/EastEurope/Iran/WPC1252/PC866/PC852/PC858/IranII/Latvian/Arabic/PT151,1251/PC737/WPC/1257/ThaiVietnam/PC864/PC1001/(Latvian)/(PC1001)/(PT151,1251)/(WPC1257)/(PC864)/(Vietnam)/(Thai)
Bar code
1D bar code:UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)CODE39/ITF/
CODABAR/CODE93/CODE128
2D barcode:QRCODE
Graphics printing
Graphics printing
Supports bitmap download and print ( each bitmap size Max.20K)
Cutter
Cutter Function
Full cut/Half cut
Paper
Type
Thermal
Width
79.5±0.5mm
Diameter
≤80mm
Feed method
Easy feed(Clameshell feed)
Print commands
Commands
ESC/POS
Power
Power Adaptor
Input:AC 110V/220V,50~60Hz
Output:DC 24V/2.5A
Cash Drawer output
DC 24V/1A
Buffer
Input Buffer
2048K bytes
NV Flash
256K bytes
physical characteristics
Weight
1kgs
Dimension
186*145*133mm
Environment
Working
Temp:5 ~ 45℃, Humidity:10 ~ 80%
Storage
Temp:-10 ~ 50℃ ,Humidity:10 ~ 90%(No dew)
Reliability parameter
Print Head Life
100KM(print density≤12.5)
Cutter Life
1000,000times
Software
Driver
Android,IOS,Linux,Win2000,Win2003,WinXP,Win7,Win8,Win8.1
Application:
Shopping malls, restaurants, stores, warehousing, taxation, banking, medical, postal
HOIN 7 Biggest Features to Sell Thermal Printer All over the world!!!
1.Hoin is one of the most professional Thermal Printer Manufacturer in Shenzhen China
2.All engineers with more than 8 years experiences in thermal printers
3.OEM,ODM available
4.Free software,SDK
5.All printers with 1 year warranty,all life free maintenance
6.All printers with BIS CE,FCC,ROHS
7.High quality,fast delivery,sample 3-5days,bulk order 15days
1. What about your MOQ?
No,MOQ,we suport sample order.
2.What about delivery time?
For sample,3 days,bulk order usually 7-15days,depends on quantity.
3.How about Payment term?
For sample,paypal,Western Union,bulk order,L/C or T/T
4. Can you send samples for confirmation? Are they free?
Yes, of course, but no free,sorry
5.Can Customize,modify and develop products according to our requirements?
Yes, we provide OEM and ODM service.Because we have our R&D department. .
6:How can your printer works with our system?
All printers will come with a CD driver, install it, then can print.
7. How about the warranty of your products?
7 days replace,1 year free maintenance .
8.Are you the manufacturer or trading company?
We are the professional thermal receipt printer manufacturer located in Baoan shenzhen Songgang,we specialized in thermal printers developing and manufacturing.Welcome to our factory.
9.How will you control the printer's quality?
We fully tested every components and procedures,we have QC persons in every production procedures.
11.How to Get Free SDK, Drive, or free testing APP ?
1)All the New Android/IOS SDK, Windows Driver is available in our website, pls download from Hoin website link: https://www.hoinprinter.com/download/39.html.
2)For IOS Testing App, pls search "Hoin Printer" in your Apple Store, you will See the following.
3)For Android Testing App, pls get by clicking the link: http://www.hoinprinter.com/upload/HoinPrinter.apk or Scanning the barcode:
