High speed POS 80 3inches thermal receipt bill auto-cutter paper USB BT bill printer 1D 2D barcode HOIN H801
High end 80MM Auto Cutter thermal printer
●print speed: 300 mm / sec
●Support 1D,2D bar code printing
●Excellent waterproof, dustproof, anti oil design with oil shield
●The standard GB18030 Font
●Movable paper guard plate design,which supports 58mm,80mm width thermal paper
●The printer monitoring function, to avoid losing any bills

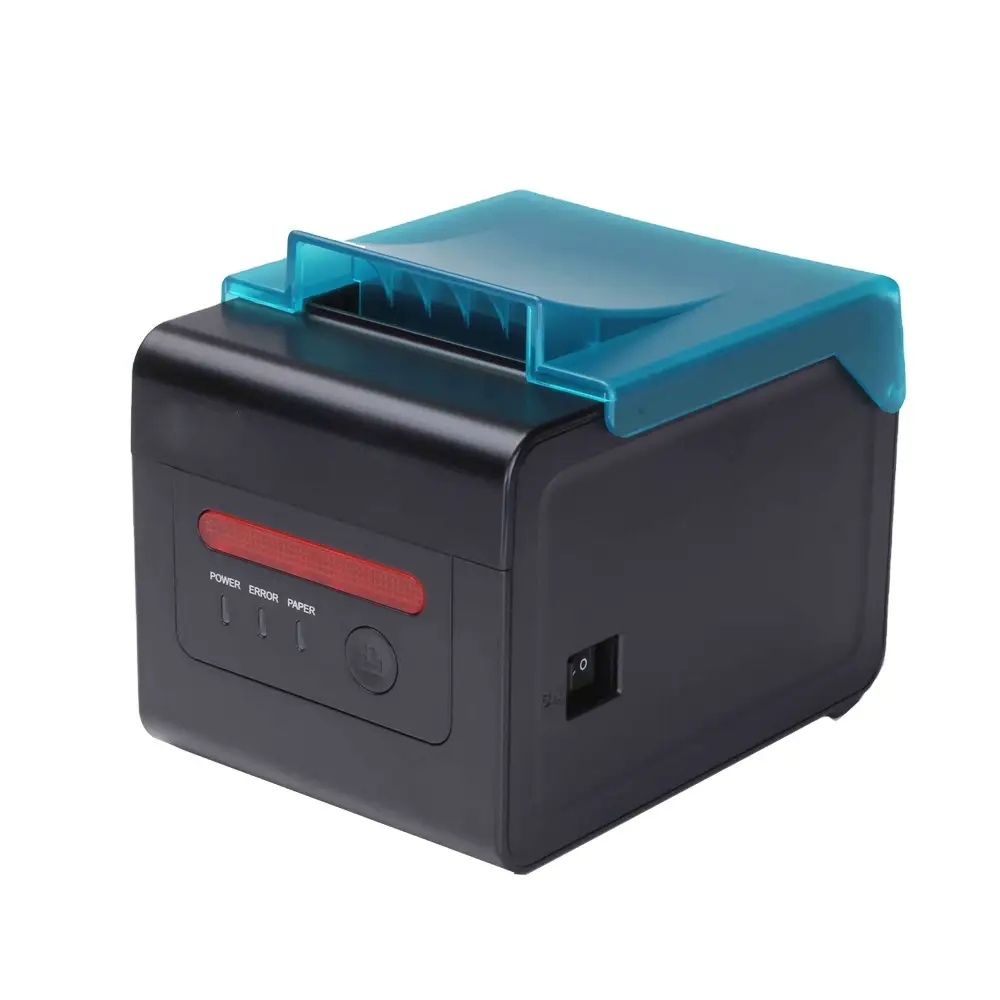

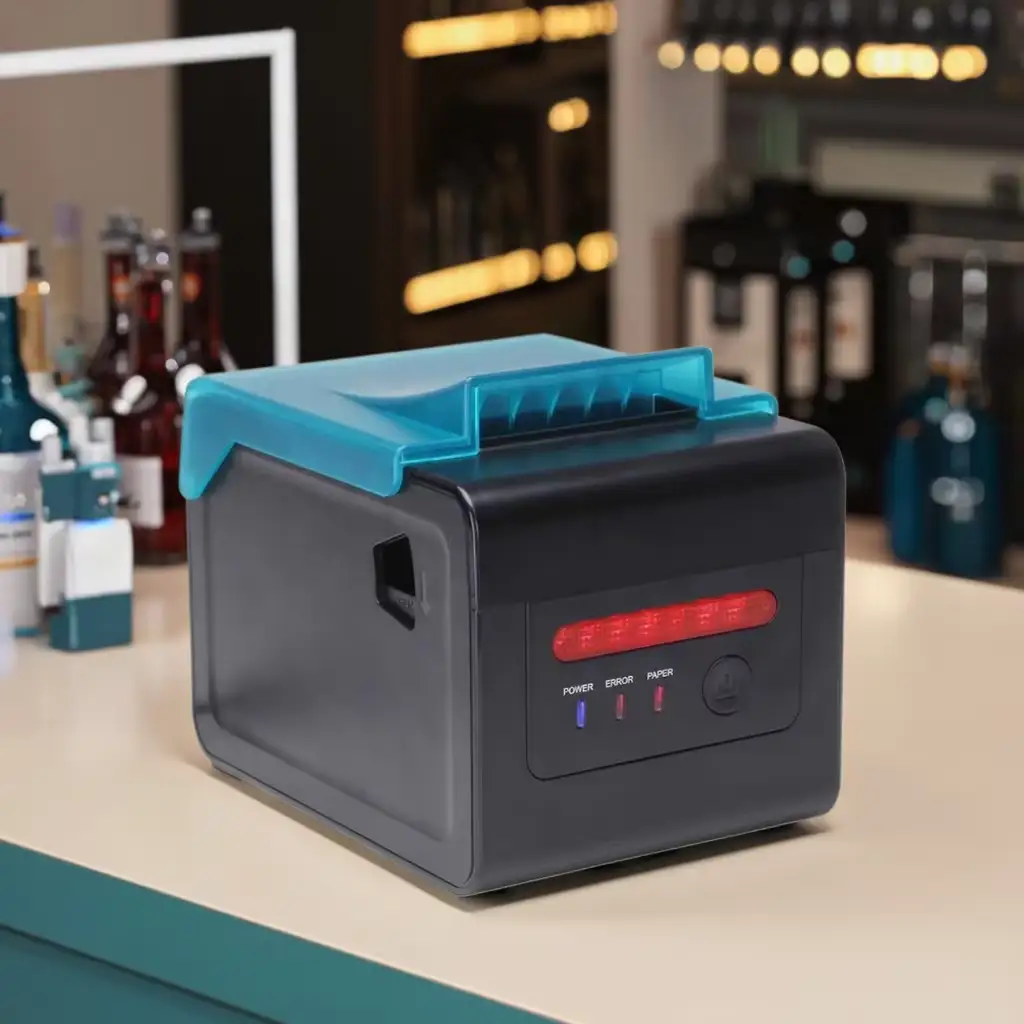

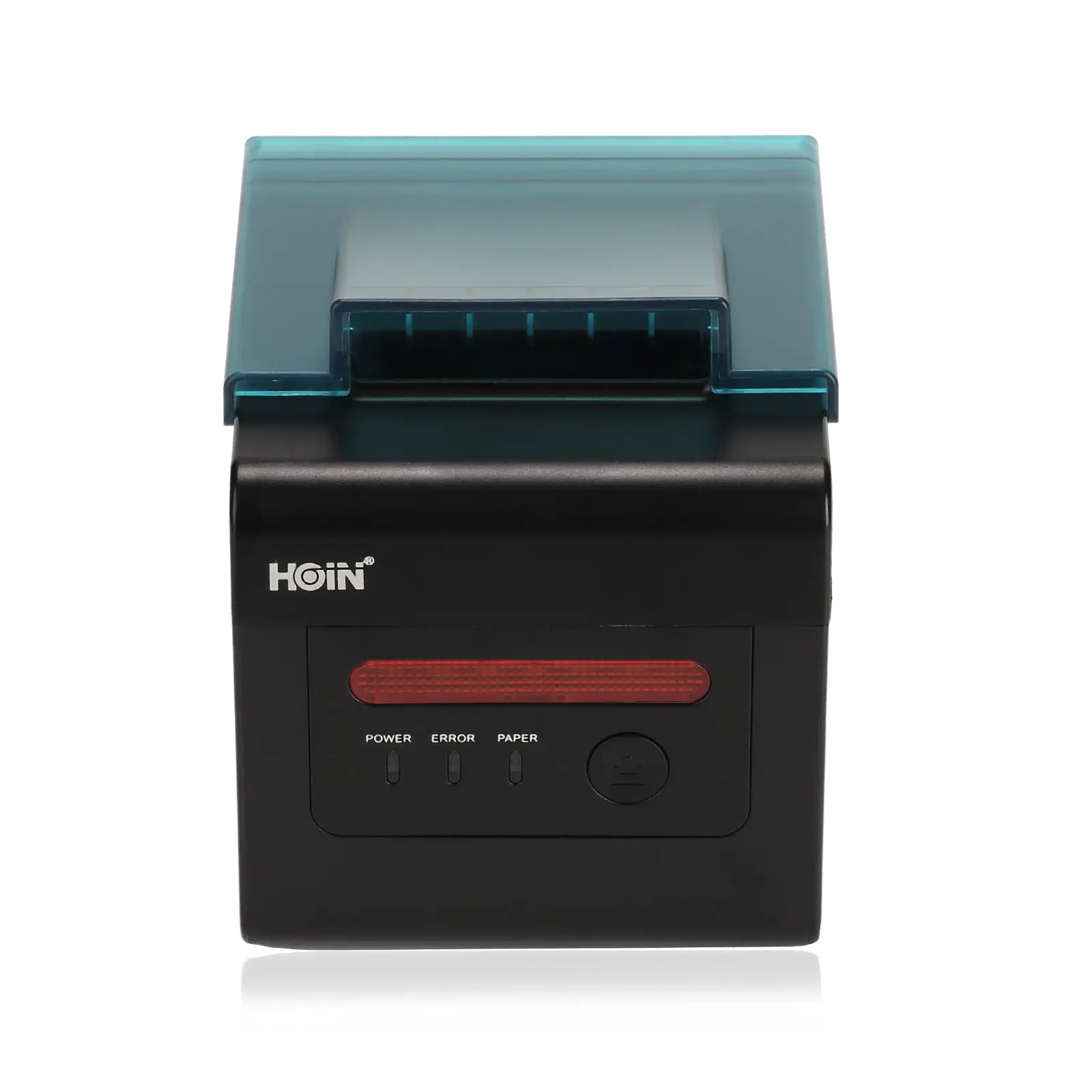

HOP-E801 is a high quality HOIN brand thermal printer which designed for network and kitchen printing. 300MM/S(Max) high speed printing; excellent waterproof, oil proof, dust proof structure design; rich interface options including USB,LAN,COM,Bluetooth,WIFI. Real-time monitoring function and large input buffer can avoid bills losing. Leading technology with high performance make sure a high-quality, worry free printing experience.
| Item | Parameters | |
| Print parameters | Printing Method | Thermal Line |
| Printing width | 72mm | |
| Resolution | 576 Dots/Line or 512 Dots/Line（8dots/mm，203dpi） | |
| Print speed | 300mm/Second(MAX) | |
| Interface | USB,Serial,Internet,Bluetooth,WIFI(Interface combination, pls contact manufacture to confirm) | |
| Line Spacing | 3.75mm（Can adjust line spacing by command） | |
| Line No. | FontA-48Lines/FontB-64Lines/Simple,traditional Chinese-24lines | |
| Character | standard GB18030 simplified / BIG5 traditional Chinese Fonts(Japanese and Korean optional) | |
| Character Size | ANK character：Font A：1.5×3.0mm（12×24 dots） Font B：1.1×2.1mm（9×17 dots） Simplified/Traditional Chinese：3.0×3.0mm(24×24 dots） | |
| Bar code Character | Extended character set | PC437/Katakana/PC850/PC860/PC863/PC865/WestEurope/Greek/Hebrew/EastEurope/Iran/WPC1252/PC866/PC852/PC858/IranII/Latvian /Arabic/PT151,1251/PC737/WPC/1257/ThaiVietnam/PC864/PC1001/(Latvian)/(PC1001)/(PT151,1251)/(WPC1257)/(PC864)/(Vietnam)/(Thai) |
| Bar code | 1Dbarcode:UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODE39/ITF/CODABAR/CODE93/CODE128 2D barcode：QRCODE | |
| Graphics printing | Graphics printing | Supports bitmap download and print |
| Paper | Type | Thermal |
| Width | 79.5±0.5mm (Support both 58mm and 80mm paper) | |
| Diameter | ≤80mm | |
| Feed method | Easy feed(Clameshell feed) | |
| Print commands | Commands | ESC/POS |
| Power | Power Adaptor | Input：AC 100V-240V,50-60Hz Output：DC 24V/1.5A |
| Cash Drawer Output | DC 24V/1A | |
| Buffer | NV Flash | 256K bytes |
Input Buffer | 2048K bytes | |
| physical characteristics | Weight | 2.5KG |
| Dimension | 270*210*167MM | |
| environment | Working | Temp：5 ~ 45℃， Humidity：10 ~ 80% |
| Storage | Temp：-10 ~ 50℃ ，Humidity：10 ~ 90%（No dew） | |
| Reliability parameter | Print Head Life | 150KM（print density≤12.5） |
| Cutter Life | 1500,000times | |
| Software | Driver | Android,IOS,Linux,Windows |
