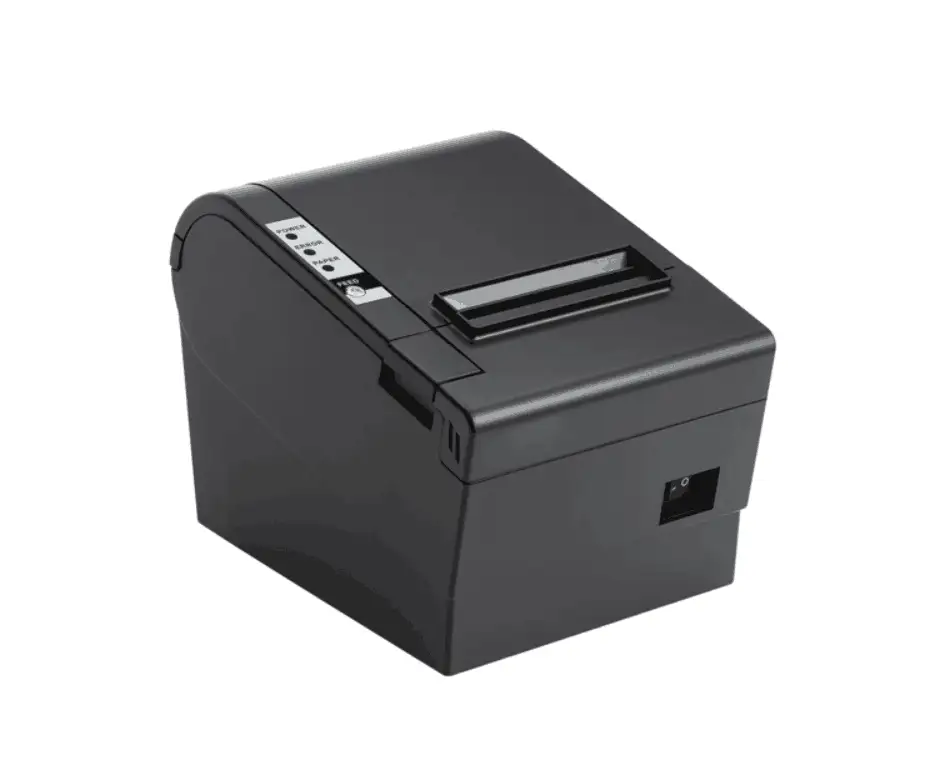

80mm Thermal Bill Receipt USB Lan BT WIFI POS System thermal Printer E802 80mm Desktop Thermal Printer
Classical and Economical Auto Cutter 80MM thermal printer
●print speed: 260 mm / sec
●Support 1D,2D bar code printing
●Excellent waterproof, dustproof, anti oil design
●The standard GB18030 Font
●The printer monitoring function, to avoid losing any bills
●support multi language print
●support small font print
●support wall hang function
Applying the technology to the manufacturing process of the product turns out to be highly helpful. Featuring stability and durability, the product is suitable for the field(s) of 80mm Desktop Thermal Printer. In order to guarantee Classical and Economical Auto Cutting 80mm Thermal Bill Receipt USB Lan BT WIFI POS System thermal Printer E802 performance, the adopted technologies are technically useful and feasible. Depending on its properties, the product is widely applied in the field(s) of Printers. To keep ourselves ahead of other competitors, we will strive forward to improve our R&D strength and technology ability. Shenzhen Hoin Electronic Technology Co hope that one day we will develop more and better products without relying on others' technologies.
| Private Mold: | Yes | Products Status: | Stock |
| Type: | 80mm desktop thermal printer | Style: | Black |
| Use: | pos thermal printer | Interface Type: | BT +USB+Lan |
| Max Paper Size: | 80mm | Black Print Speed: | 260mm/S |
| Color Print Speed: | 0 | Max. Resolution: | 576 Dots/line |
| Brand Name: | HOIN | Model Number: | HOP-E802 |
| Place of Origin: | Guangdong, China | Warranty(Year): | 1-Year |
| After-sales Service: | Free spare parts | Printing Method: | Thermal Line |
| Resolution: | 576 Dots/Line or 512 Dots/Line(8dots/mm,203dpi) | Interface: | USB,USB+LAN,USB+LAN+SERIAL,USB+BT,USB+WIFI,USB+SERIAL+LAN+WIFI+BT |
| barcode: | 1D,2D | paper width: | 79.5±0.5mm |
| paper thickness: | ≤0.12mm | Instructions: | ESC/POS |
| Print Head Life: | 100KM(print density≤12.5) | paper Diameter:: | ≤80mm |
| Certification: | FCC,CE,ROHS, BIS |
Classical and Economical Auto Cutting 80mm Thermal Bill Receipt USB+Lan +BT +WIFI POS System Printer E802
We have USB/USB+LAN/USB+SERIAL+LAN/USB+WIFI/USB+BT/USB+BT+Lan+Wifi+Serial for you to choose
Dimension:180*129*150mm
weight:3kg
| Private Mold: | Yes | Products Status: | Stock |
| Type: | Thermal Receipt Printer | Style: | Black and white |
| Use: | Thermal POS Receipt Printer | Interface Type: | USB+LAN+COM or USB+B T |
| Max Paper Size: | 80mm | Black Print Speed: | 260mm/sec |
| Color Print Speed: | not support | Max. Resolution: | 576 Dots/line |
| Brand Name: | Hoin | Model Number: | HOP-E802 |
| Place of Origin: | Guangdong, China | Warranty(Year): | 1-Year |
| After-sales Service: | Others, Call Center and on-line Technical Support, Onsite Training and Inspection | Software development kit (SDK): | Yes |
| Printing Method: | 80mm Thermal Line | Resolution: | 576 Dots/Line or 512 Dots/Line(8dots/mm,203dpi) |
| Interface: | USB+LAN+COM/USB+B T | barcode: | 1D,2D |
| paper width: | 79.5±0.5mm | paper thickness: | ≤0.12mm |
| paper Diameter: | ≤80mm | Instructions: | ESC/POS |
| Print Head Life: | 100KM(print density≤12.5) | Certification: | FCC/CE/ROHS/BIS/CB |
Hoin 3 inch 80mm Hot sales Direct Thermal printer HOP-E802 with free SDK/Driver/Testing App
Items | Parameters | |
Print parameters | Printing Method | Thermal Line |
Printing width | 72mm | |
Resolution | 576 Dots/Line Or 512 Dots/Line(8dots/mm,203dpi) | |
Interface | USB+LAN+COM/USB+B T | |
Line Space | 3.75mm(Can adjust line space by command) | |
Line No. | Font A-32 Lines/Font B-42 Lines/Simple,traditional Chinese-16 Lines | |
Character | standard GB18030 simplified / traditional Chinese | |
Character Size | ANK character,Font A:1.5×3.0mm(12×24 dots) | |
Bar code Character | Extended character set | PC437/Katakana/PC850/PC860/PC863/PC865/WestEurope/Greek/Hebrew/EastEurope/Iran/WPC1252/PC866/PC852/PC858/IranII/Latvian/Arabic/PT151,1251/PC737/WPC/1257/ThaiVietnam/PC864/PC1001/(Latvian)/(PC1001)/(PT151,1251)/(WPC1257)/(PC864)/(Vietnam)/(Thai) |
Bar code | 1D Bar code:UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)CODE39/ITF/
| |
Graphics printing | Graphics printing | Supports bitmap download and print ( each bitmap size Max.20K)
|
Cutter | Cutter Function | Full cut/Half cut |
Paper | Type | Thermal |
Width | 79.5±0.5mm | |
Diameter | ≤80mm | |
Feed method | Easy feed(Clameshell feed) | |
Special function | Oil Shield | Support |
Bills not taken detect and remind | Support | |
Tibet line slot | Support | |
Bulit in loudspeaker | Support | |
Print Commands | Commands | ESC/POS |
Power | Power Adaptor
| Input:AC 110V/220V,50~60Hz |
Output:DC 24V/2.5A | ||
Cash Drawer output | DC 24V/1A | |
Buffer | Input Buffer | 2048K bytes |
NV Flash | 256K bytes | |
physical characteristics | Weight |
1.15KG |
Dimension |
195*140*148(MM) | |
Environment | Working | Temp:5 ~ 45℃, Humidity:10 ~ 80% |
Storage | Temp:-10 ~ 50℃ ,Humidity:10 ~ 90%(No dew) | |
Reliability parameter | Print Head Life | 100KM(print density≤12.5) |
Cutter Life | 1000,000times | |
Software | Driver | Android,IOS,Linux,Win2000,Win2003,WinXP,Win7,Win8,Win8.1,Win10,etc |
Shenzhen Hoin Electronic Technology Co.,Ltd is a high tech enterprise specialized in thermal Mini receipt printer,thermal barcode label printer,panel printer and kiosk printer. We can offer one-stop services from R&D, printer main board design,plastic molding, materials assembling, production, packing, testing,sales,delivery to after-sales services.
Most of our thermal receipt printers are CE, CFF, RoHS,BIS,CB,CCC certified. Our products are Hot sale all over the world. Thermal Printers have been widely used in the express shipping, shopping mall,warehousing,retail, telecommunications, medical, tax, police, government, logistics and other industries.
1, Are you a manufacture?And What is the MOQ?
We are the professional thermal printer manufacturer with full production line. Sample order 1-2pcs printers are also welcomed.
2, Can you customise or design the product? How about add my Own Logo?
OEM and ODM are available, We are very experienced in R&D and POS Printer Solutions. MOQ:100pcs, we can add your logo for free.
3, What kind of language can you support? Besides,what operation system can you support?
Our printer English language, Spanish,Korea,France,Portuguese ,Arabic,Russian,etc 70 languages. We support Android,IOS,Linux, Mac book, Win2000,Win2003,WinXP,Win7,Win8, Win8.1,Win10,Win11 etc.
4, What's your deliver time?
For sample,1-3 days; bulk order usually 7-15days,depends on quantity.
5, Can you provide drive and latest software?
Yes. All the Android/IOS SDK, Windows driver, Mac driver, and Android/IOS testing app are available.
Download link:https://www.hoinprinter.com/download/39.html
