HOIN has developed to be a professional manufacturer and reliable supplier of high-quality products. Throughout the whole production process, we strictly implement the ISO quality management system control. Since established, we always adhere to independent innovation, scientific management, and continuous improvement, and provide high-quality services to meet and even exceed customers' requirements. We guarantee our new product wired scanner will bring you a lot of benefits. We are always standby to receive your inquiry. wired scanner If you are interested in our new product wired scanner and others, welcome you to contact us.The visual effect of this product helps attract consumers and persuade them to choose the item. In addition, consumers will benefit a lot from the basic information it provides.
Data Parameters:
HOP-E760 scanner support both 1D+2D barcode; HOP-E660 support only 1D barcode. The rest details all is same.

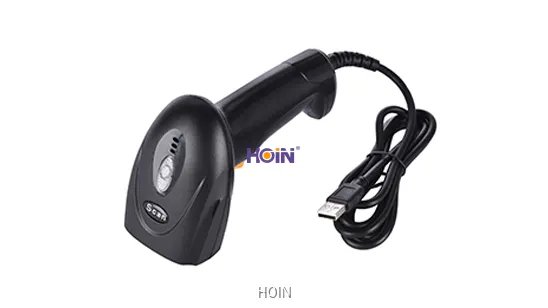

| HOP-E760 Wired 2D Barcode Reader | |||
Performance Parameter | |||
| Depth Filed |  | ||
| Performance Parameter | |||
| Optical Source | 620nm Visible red light diode | ||
| Imaging Sensor | COMS | ||
| Resolution Ratio | 30 million pixels | ||
| Image Resolution | ≥ 5mil | ||
| Minimum Contrast | ≥ 30% | ||
| Barcode Types | 1D CODE128 EAN-8 EAN-13 UPC-E UPC-A Interleaved 2 of 5 ITF14 MATRIX 25 Code39 Codabar Code93 UCC/EAN-128 Code11 ISBN INDUSTRIAL25 STANDARD25 Plessey MSI_Plessey 2D PDF417 QR Aztec DataMatrix Maxicode MicroPDF417 SPEC_OCR_B | ||
| Barcode Sensitivity | Tilt | ±55° | |
| Rotate | ±25° | ||
| Deflection | ±75° | ||
| Data Interface Port | USB | ||
| Mechanical and Electric Performance | |||
| SIZE(Length x Width x Height) | 156×64×91 mm | ||
| Net Weight | 110g | ||
| Indicator | Siren and LED light | ||
| Max.Power | 1405mw | ||
| Working Voltage | 5V | ||
| Current | Max.Current | 281mA | |
| Working Current | 141mA~281mA | ||
| Stand-by Current | 141mA | ||
| Accessory | |||
| Data Cable | USB(1.5M) | ||
| Operation Manual | One | ||
| Environmental Parameter | |||
| Storage Temperature | -40°C ~ 60°C | ||
| Working Temperature | 0°C ~ 50°C | ||
| Relative Humidity | 0 ~ 95% | ||
| Height range | 2M | ||
| IP Rating | IP52 | ||
